AVIATION AND AEROSPACE

Whenever the highest reliability, precision, and longevity are required, there is no way around the low-ohmic precision and power resistors from Isabellenhütte.

It is not without reason that we have been supplying measuring resistors to the aerospace industry for more than 30 years.

We always meet the toughest quality standards and consider our customers’ individual requirements (DLA, NASA, and ESCC 4001). In addition, the SnPb-tinned contacts prevent whisker formation, thus preventing short circuits in many applications.

Power rating up to 4 W
Constant currents up to 30 A
Very high pulse power rating
Very good long-term stability
Low TCR

Model	Mounting Style	Resistance Range (Ω)(Low)	Resistance Range (Ω)(High)	Wattage	Package Size	Product Details
BAL	Bus Bar	0.000035	0.00005	12 W	5216	View more
BAS	Bus Bar	0.000035	0.0005	36 W	8420	View more
BAV	Bus Bar	0.000035	0.0005	36 W	8420	View more
BAX	Bus Bar	0.000005	0.00002	40 W	8436	View more
BKW	Bus Bar	0.0003	0.0005	3 W	2919	View more
BSS	Bus Bar with NTC	0.0001	0.0001	20 W	8420	View more
BVD	Bus Bar with Studs	0.0005	0.0005	3 W	3512	View more
BVM-F	Bus Bar	0.0001	0.0005	5 W	3516	View more
KVM	Bus Bar	0.0001	0.0001	7 W	3516	View more

BVR-PW

4-terminal resistor. Listed in European Preferred Parts List (EPPL) in Part 2.

Product area:	Resistor
Mounting type:	Surface mount assembly
Size:	4026
Power (Watt):	3 - 5
Tol (%):	0.500 - 1.00
Res (Ohm):	0.0002 - 0.003

Show properties

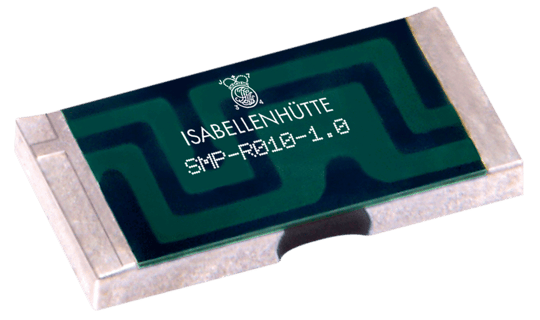

SMP-PW

2-terminal resistor according to ESCC 400102701 / ESCC 400102704.

Product area:	Resistor
Mounting type:	Surface mount assembly
Size:	2010
Power (Watt):	1
Tol (%):	0.500 - 1.00
Res (Ohm):	0.005 - 1

Show properties

SMS-PW

2-terminal resistor according to ESCC 400102702 / ESCC 400102705.

Product area:	Resistor
Mounting type:	Surface mount assembly
Size:	2512
Power (Watt):	2
Tol (%):	0.500 - 1.00
Res (Ohm):	0.003 - 1

Show properties

SMT-PW

2-terminal resistor according to ESCC 400102703 / ESCC 400102706.

Product area:	Resistor
Mounting type:	Surface mount assembly
Size:	2817
Power (Watt):	3
Tol (%):	0.500 - 1.00
Res (Ohm):	0.004 - 2

Show properties

SMV-PW

4-terminal resistor according to ESCC 400102802.

Product area:	Resistor
Size:	4723
Power (Watt):	3
Tol (%):	0.500 - 1.00
Res (Ohm):	0.0033 - 1

Show properties

VMI-MIL

2-terminal resistor according to DLA drawing no. 25003.

Product area:	Resistor
Size:	0805
Power (Watt):	0.5
Tol (%):	1.00
Res (Ohm):	0.01 - 0.1

Show properties

VMK-MIL

2-terminal resistor according to DLA drawing no. 25004.

Product area:	Resistor
Size:	1206
Power (Watt):	0.75
Tol (%):	0.500 - 1.00
Res (Ohm):	0.010 - 0.470

Show properties

VMP-MIL

2-terminal resistor according to DLA drawing no. 25005.

Product area:	Resistor
Size:	2010
Power (Watt):	1.5
Tol (%):	0.500 - 1.00
Res (Ohm):	0.005 - 1

Show properties

VMS-MIL

2-terminal resistor according to DLA drawing no. 25006.

Product area:	Resistor
Size:	2512
Power (Watt):	2
Tol (%):	0.500 - 1.00
Res (Ohm):	0.005 - 1

Show properties
