Application

Energy Distribution

With the development of measuring systems for energy monitoring at all voltage levels, we are investing in a future market and consistently expanding our product portfolio in this area.

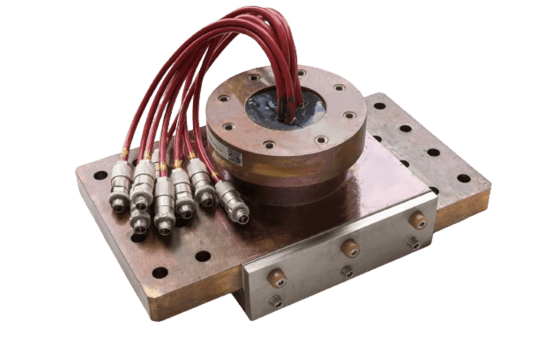

FRCT_Siemens

Increased efficiency & reliability for power supply systems

Smart power metering in power distribution systems for vehicles, renewable energy or general power distribution is crucial as it enables accurate monitoring and control of energy consumption.

By measuring the current, problems such as overloads, short circuits or inefficient devices can be identified before they lead to major damage. In addition, measuring power consumption helps to optimize energy efficiency by identifying potential savings and enabling effective use of resources.

This can reduce operating costs and improve the reliability of the power supply system. Overall, energy distribution is a key concept for the sustainable and efficient use of energy in various applications.

Power pole energy infrastructure

Measuring systems for all voltage levels

Our portfolio includes measuring systems for energy monitoring in low, medium and high-voltage applications.

From resistor alloys to passive components and active measuring sensors, the entire value chain manufactured in Germany is covered.

Temperature-stable alloys

Precise temperature treatments for reliable measurement results over the entire period of use.

Significant cost reduction

Significant reduction in energy costs thanks to precise electricity measurement.

Early problem prevention

Early detection and shutdown of the systems in the event of a fault.

Our products for your energy distribution

If you cannot find a suitable product for your requirements here, please contact us.

BVB Resistor

4-terminal resistor made of composite material. Ideal for use on DCB and FR4 Space-saving design.

Product area: Resistor
Size: 2725
Power (Watt): 3 - 12
Tol (%): 1.00
Res (Ohm): 0.0002 - 0.005
Details PDF

BVR Resistor

4-terminal resistor made of composite material. Ideal for use on DCB and FR4. Very low resistance values.

Product area: Resistor
Size: 4026
Power (Watt): 5 - 12
Tol (%): 1.00 - 5.00
Res (Ohm): 0.0002 - 0.003
Details PDF

IEM-DCR-1000 Sensor

The IEM-DCR-1000 complies with the German measurement and calibration law, as well as MID. It comes with a display unit and a sensor unit which allows to serve applications in charging infrastructure and utility domains. The combination of the display unit (DU) and the sensor unit (SU) comprises the IEM-DCR models. The SU-1000 as a standalone is available as the IEM-DCS 1000.

Product area: Sensor
Current Range: 0 - 1000
Current Range Options: 1000
Voltage Range: 0 - 1500
Voltage Channels: 4
Interface: OCMF over RF45
Hardware setup: 24 V
Configuration: german calibration law, MID, LNE
Plating shunt: nickel plated
Details PDF

IEM-DCR-125 Sensor

The IEM-DCR-125 complies with the German measurement and calibration law, as well as MID. It comes with a display unit and a sensor unit which allows to serve applications in charging infrastructure and utility domains. The combination of the display unit (DU) and the sensor unit (SU) comprises the IEM-DCR models. The SU-125 as a standalone is available as the IEM-DCS 125.

Product area: Sensor
Current Range: 0 - 125
Current Range Options: 125
Voltage Range: 0 - 1000
Voltage Channels: 2
Interface: OCMF over RF45
Hardware setup: 24 V
Configuration: german calibration law, MID, LNE
Details PDF

IEM-DCR-1500 Sensor

The IEM-DCR-1500 complies with the German measurement and calibration law, as well as MID. It comes with a display unit and a sensor unit which allows to serve applications in charging infrastructure and utility domains. The combination of the display unit (DU) and the sensor unit (SU) comprises the IEM-DCR models. The SU-1500 as a standalone is available as the IEM-DCS 1500.

Product area: Sensor
Current Range: 0 - 1500
Current Range Options: 1500
Voltage Range: 0 - 1500
Voltage Channels: 4
Interface: OCMF over RF45
Hardware setup: 24 V
Configuration: german calibration law, MID, LNE
Plating shunt: nickel plated
Details PDF
