Products
Our products meet the highest requirements in terms of thermoelectric voltage, temperature coefficient of resistance (TCR), inductance and load capacity as well as long-term stability, ensuring maximum precision over the entire lifetime.
A-H
4-terminal resistor with low TC. Low resistance values for high accuracy. 10 W power – mounted on heat sink.
| Product area: | Resistor |
|---|---|
| Size: | 4618 |
| Power (Watt): | 3 - 10 |
| Tol (%): | 0.100 - 1.00 |
| Res (Ohm): | 0.001 - 100 |

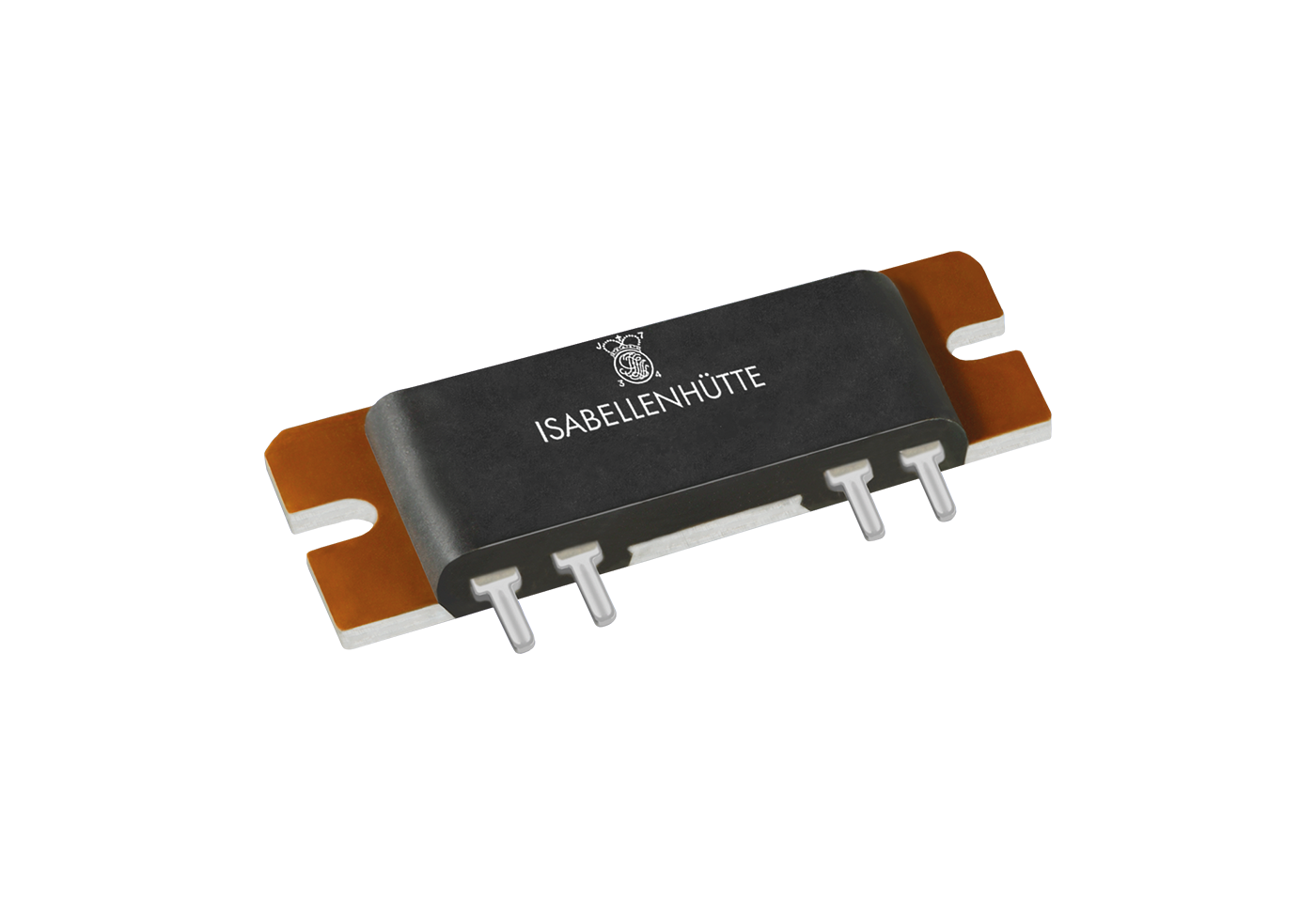

AZ-H
4-terminal resistor with optimized TC. 10 W power – mounted on heat sink.
| Product area: | Resistor |
|---|---|
| Size: | 4618 |
| Power (Watt): | 3 - 10 |
| Tol (%): | 0.100 - 1.00 |
| Res (Ohm): | 0.002 - 5 |

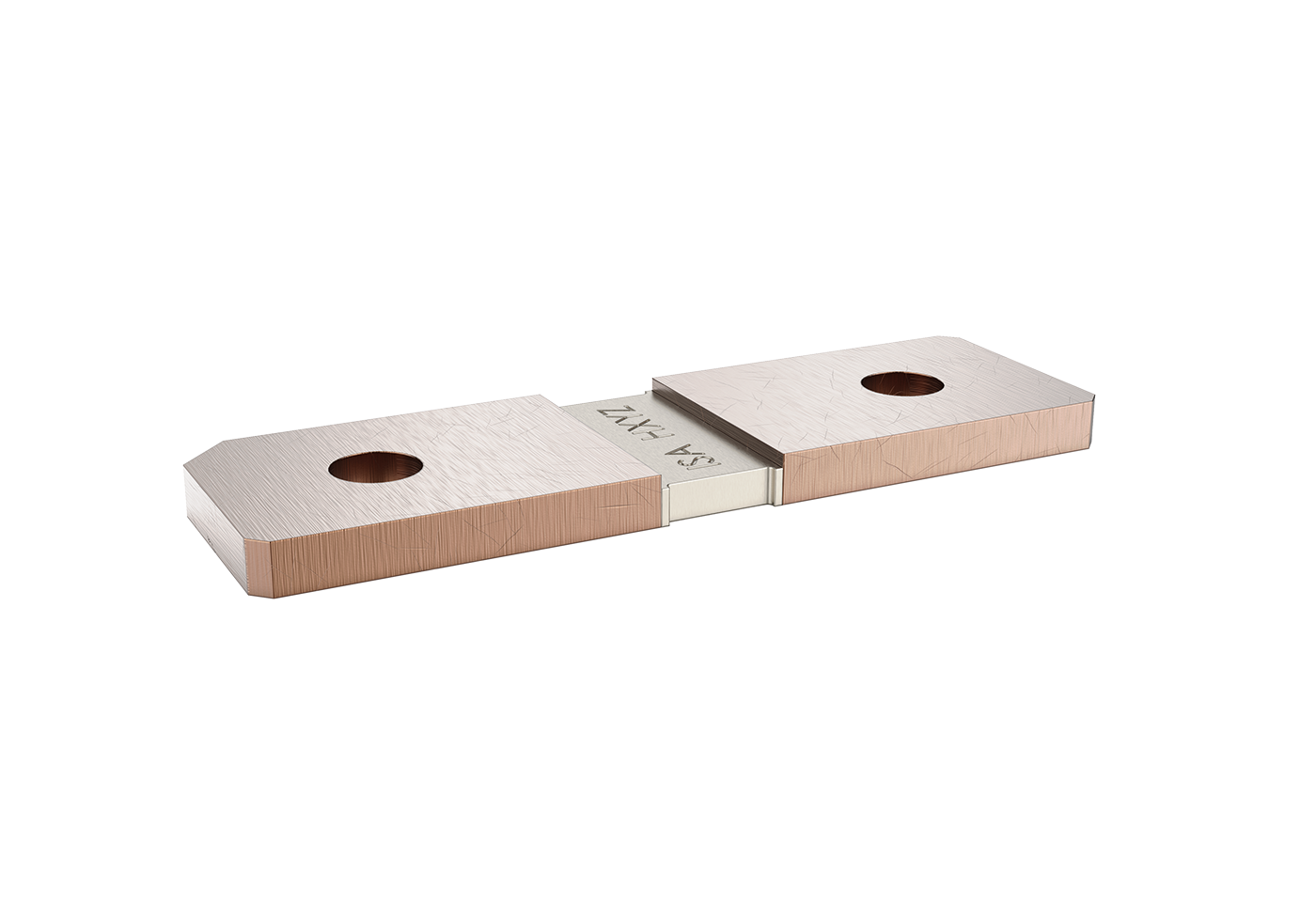

BAL
Very low-resistance busbar shunt in a small design for battery management systems. Resistance value 100µOhm
| Product area: | Resistor |
|---|---|
| Size: | 5216 |
| Power (Watt): | 12 |
| Tol (%): | 5.00 |
| Res (Ohm): | 0.0001 |

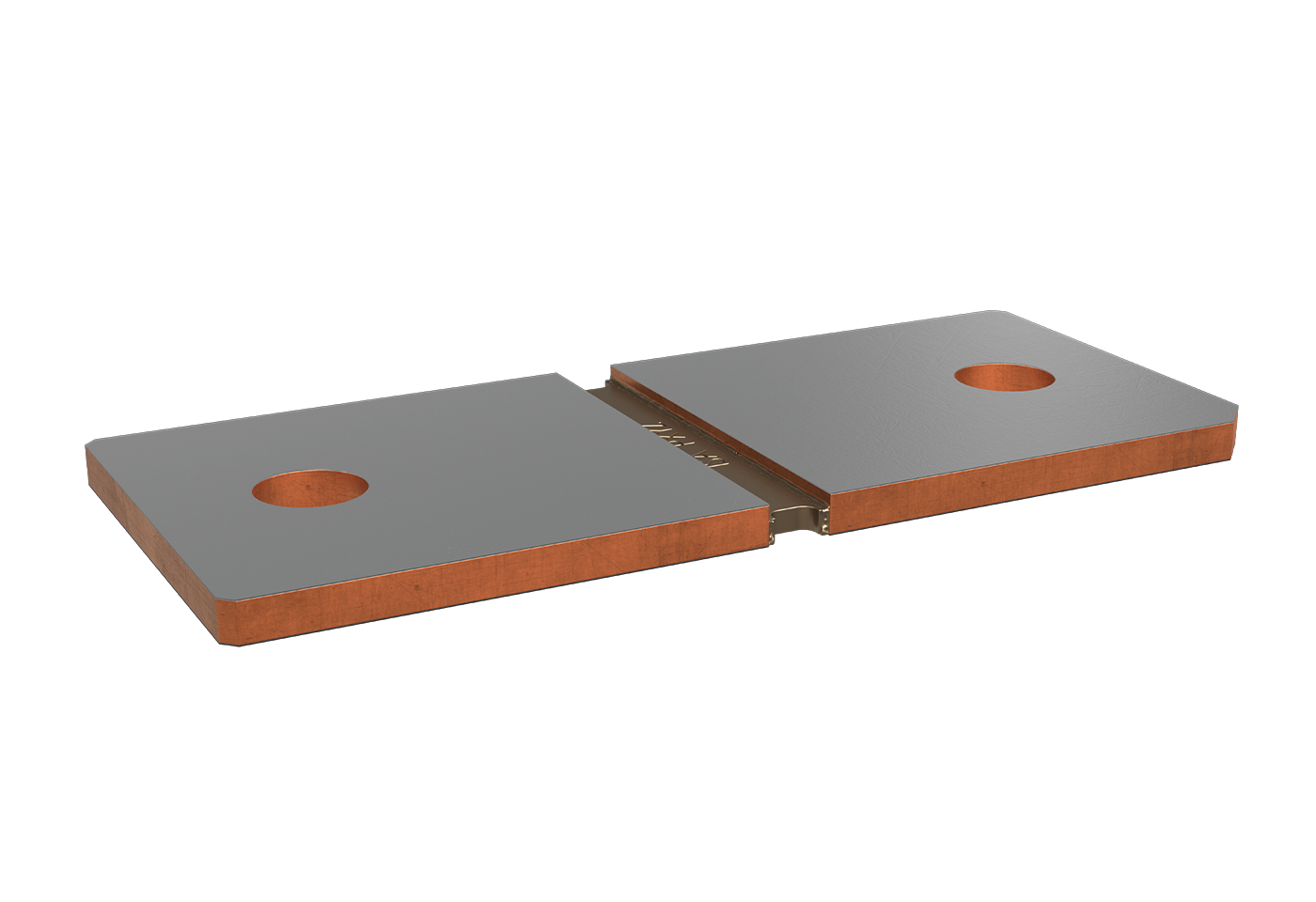

BAN
Very low-resistance busbar shunt for battery management systems or energy storage systems. Resistance value 25 µOhm.
| Product area: | Resistor |
|---|---|
| Size: | 8436 |
| Power (Watt): | 36 |
| Tol (%): | 5.00 |
| Res (Ohm): | 0.000025 |

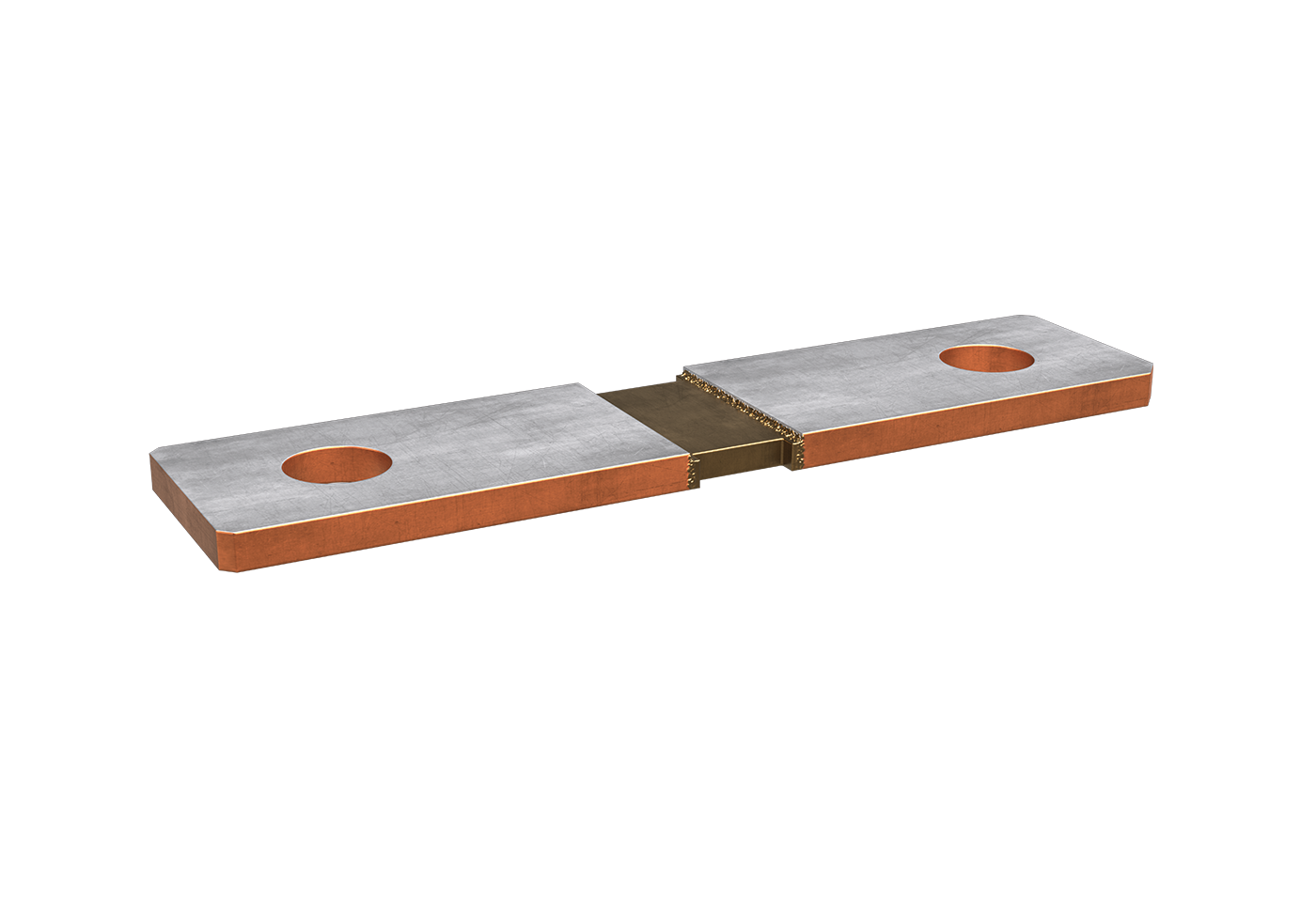

BAS
Very low-resistance busbar shunt for battery management systems or energy storage systems. Resistance values between 35µOhm and 500µOhm.
| Product area: | Resistor |
|---|---|
| Size: | 8420 |
| Power (Watt): | 10 - 36 |
| Tol (%): | 5.00 |
| Res (Ohm): | 0.000035 - 0.0005 |

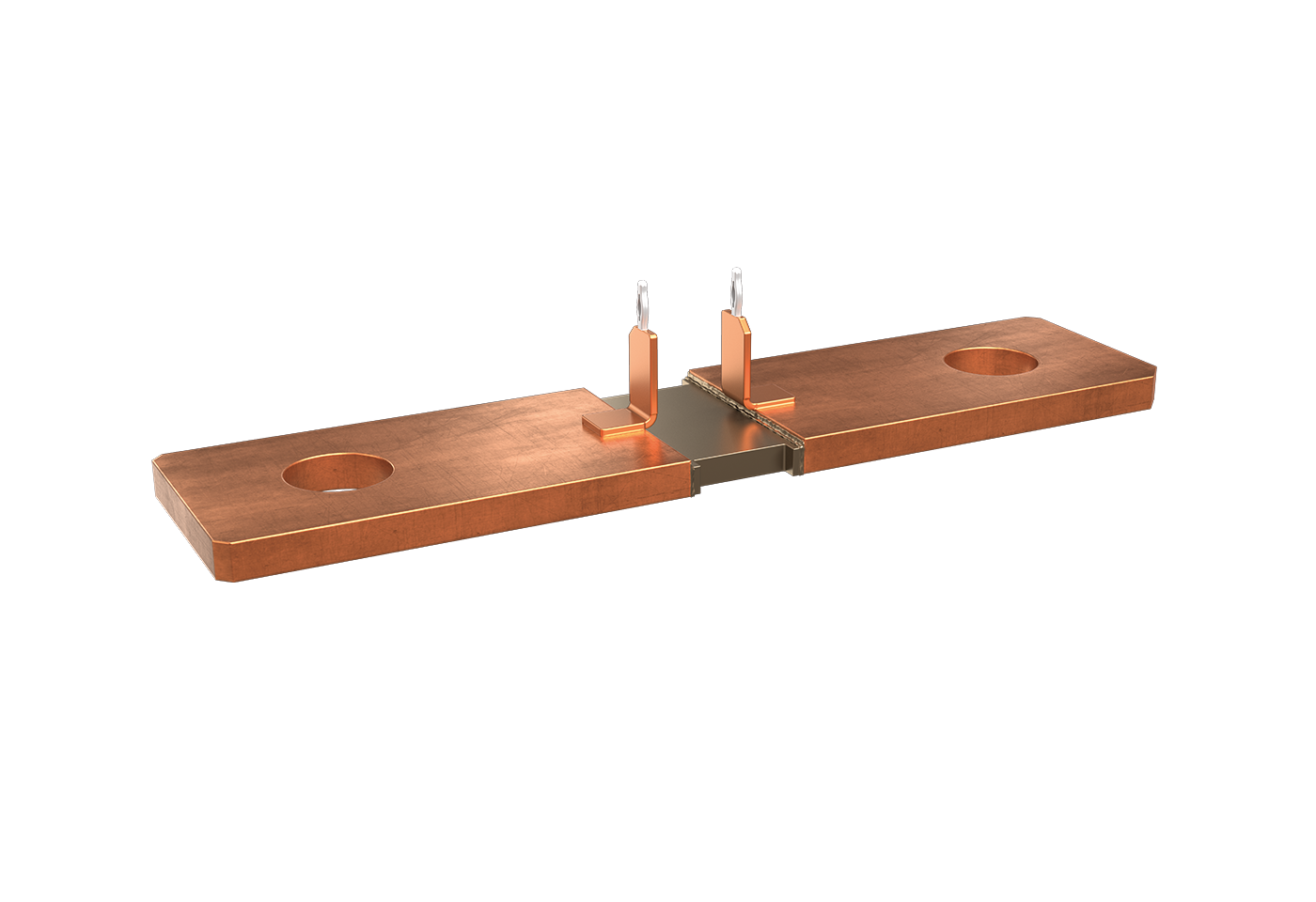

BAV
Very low-resistance busbar shunt for battery management systems or energy storage systems. Resistance values between 35 µOhm and 100 µOhm, Pressfit connections.
| Product area: | Resistor |
|---|---|
| Size: | 8420 |
| Power (Watt): | 36 |
| Tol (%): | 5.00 - 10.0 |
| Res (Ohm): | 0.000035 - 0.0001 |

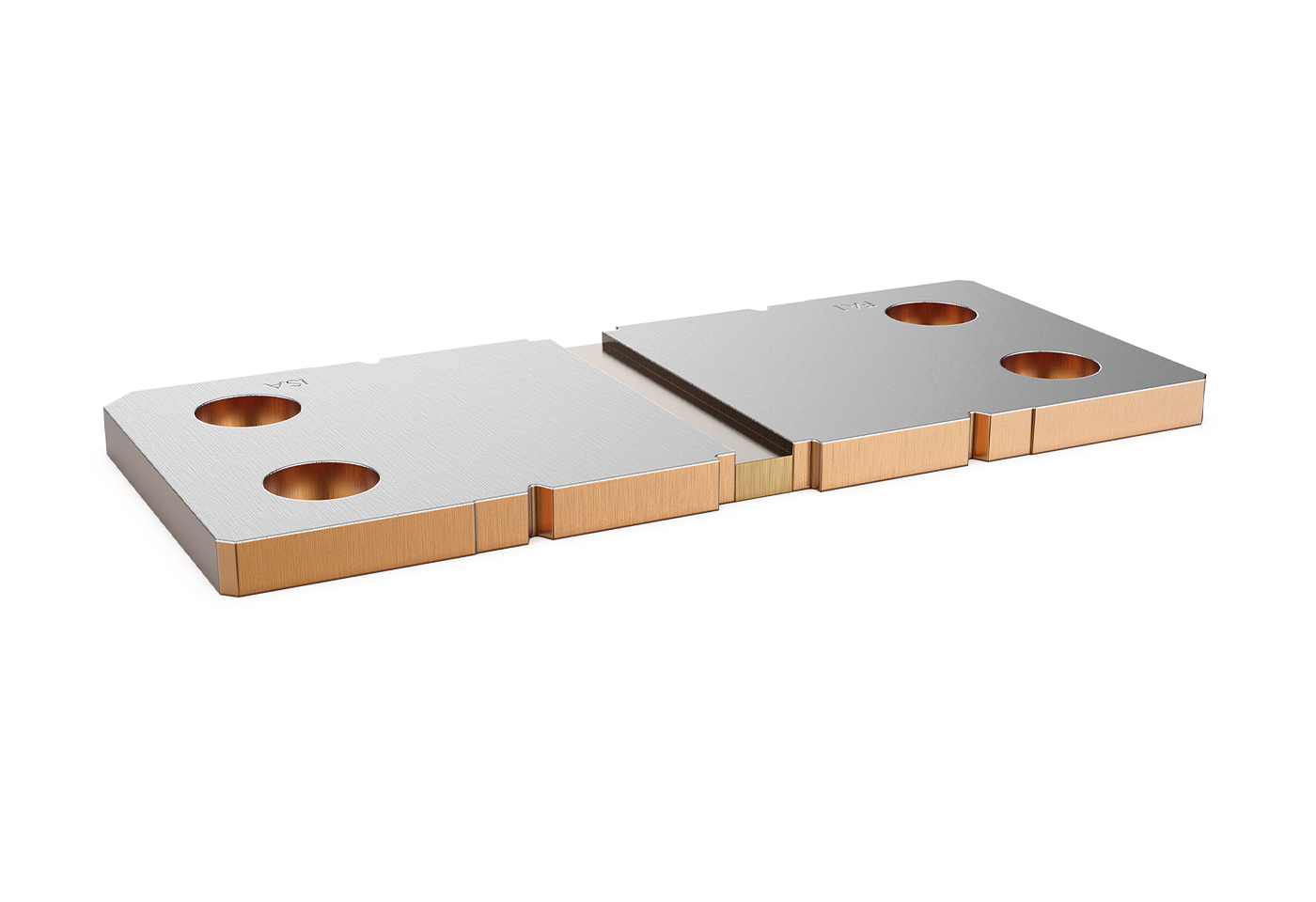

BAX
Very low-resistance busbar shunt for battery management systems or energy storage systems. Resistance values of 20 µOhm and 25 µOhm.
| Product area: | Resistor |
|---|---|
| Size: | 8436 |
| Power (Watt): | 50 |
| Tol (%): | 5.00 |
| Res (Ohm): | 0.000005 - 0.00002 |

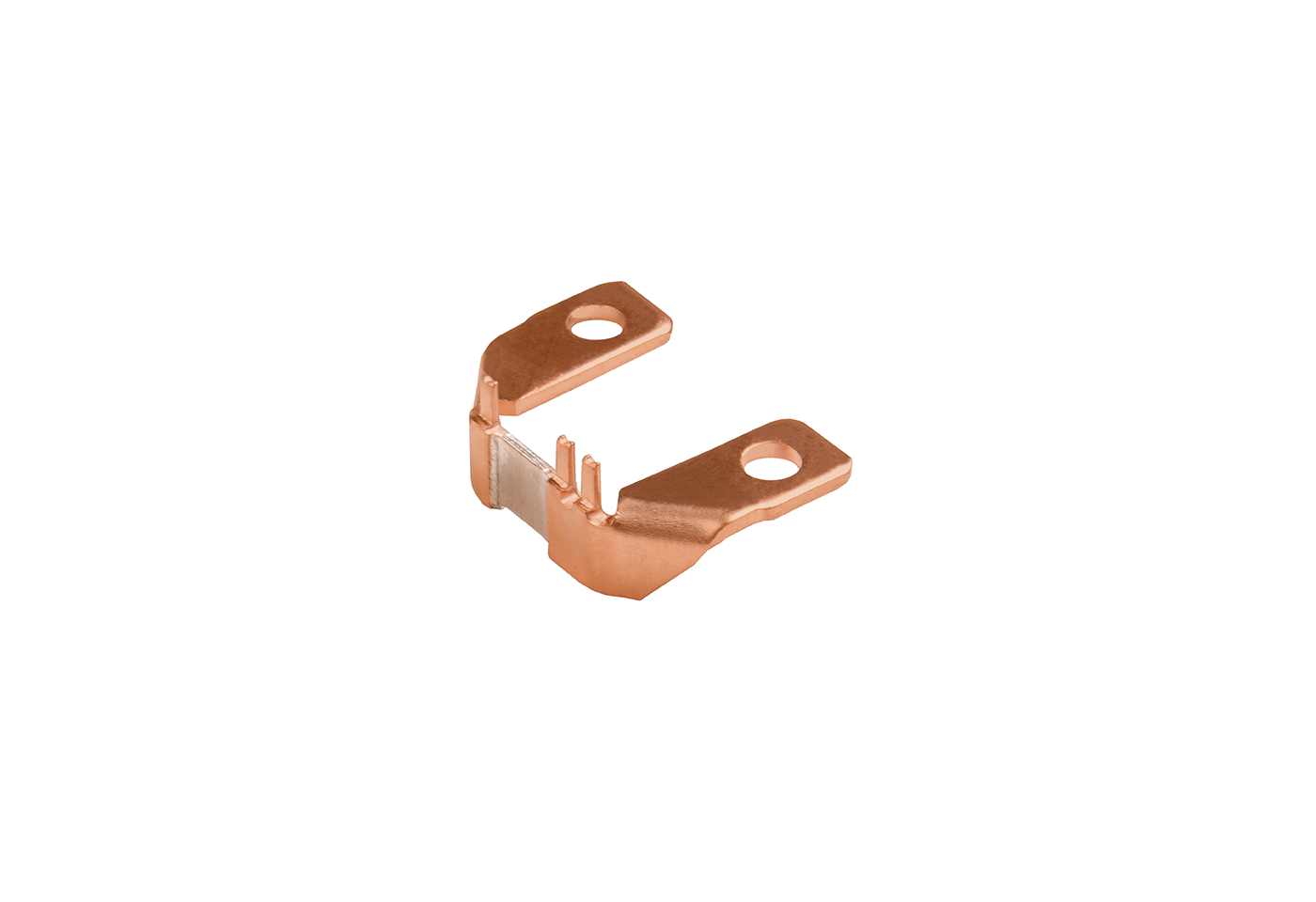

BKW
4-terminal precision resistor, e.g. for energy meters / kWh meters.
| Product area: | Resistor |
|---|---|
| Size: | 2906 |
| Power (Watt): | 3 |
| Tol (%): | 5.00 |
| Res (Ohm): | 0.0003 |

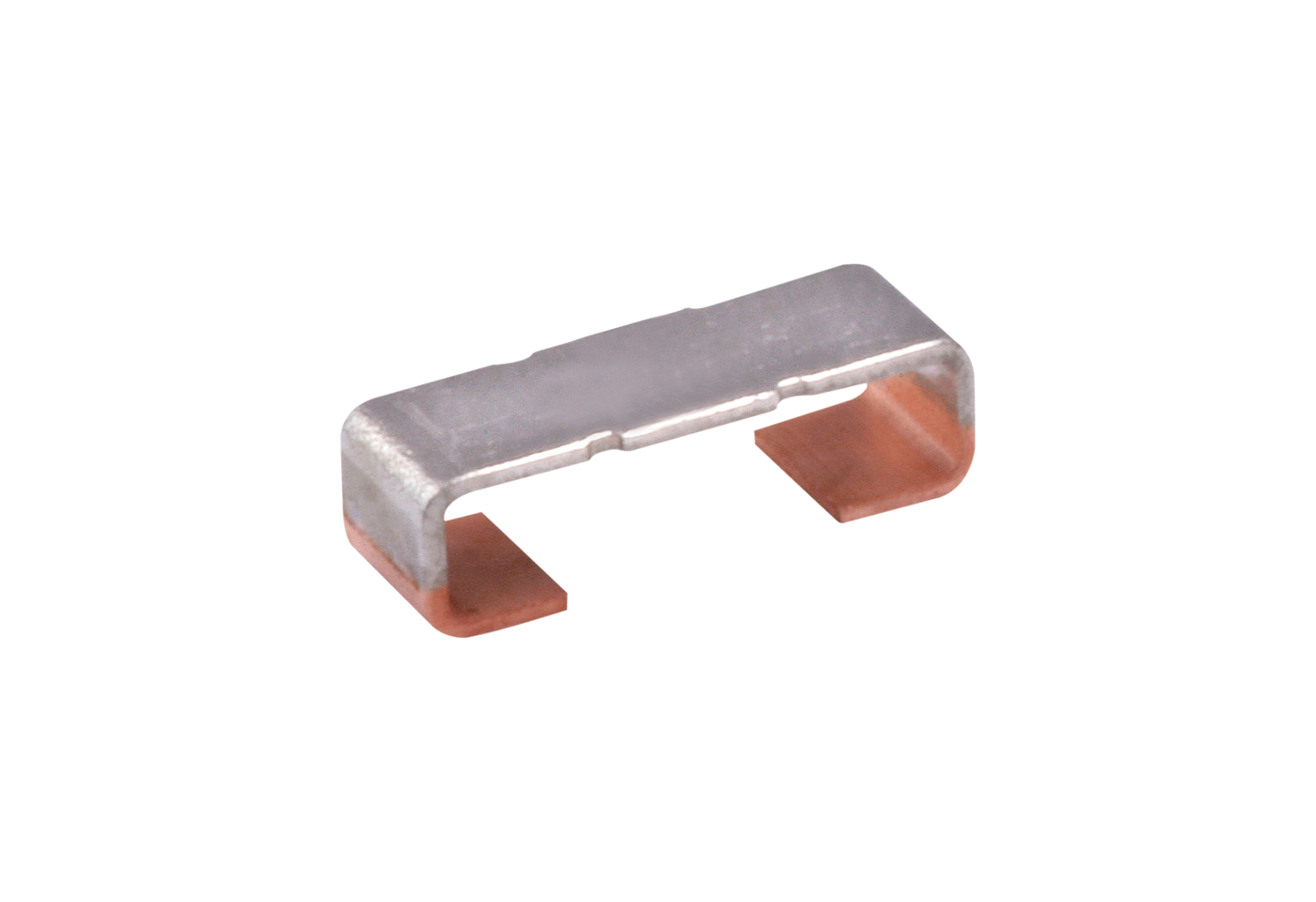

BRS
2-terminal resistor made of composite material. Ideal for use on DCB. Shackle shape, high cycle stability.
| Product area: | Resistor |
|---|---|
| Size: | 3812 |
| Power (Watt): | 1 - 2 |
| Tol (%): | 1.00 - 5.00 |
| Res (Ohm): | 0.002 - 0.025 |

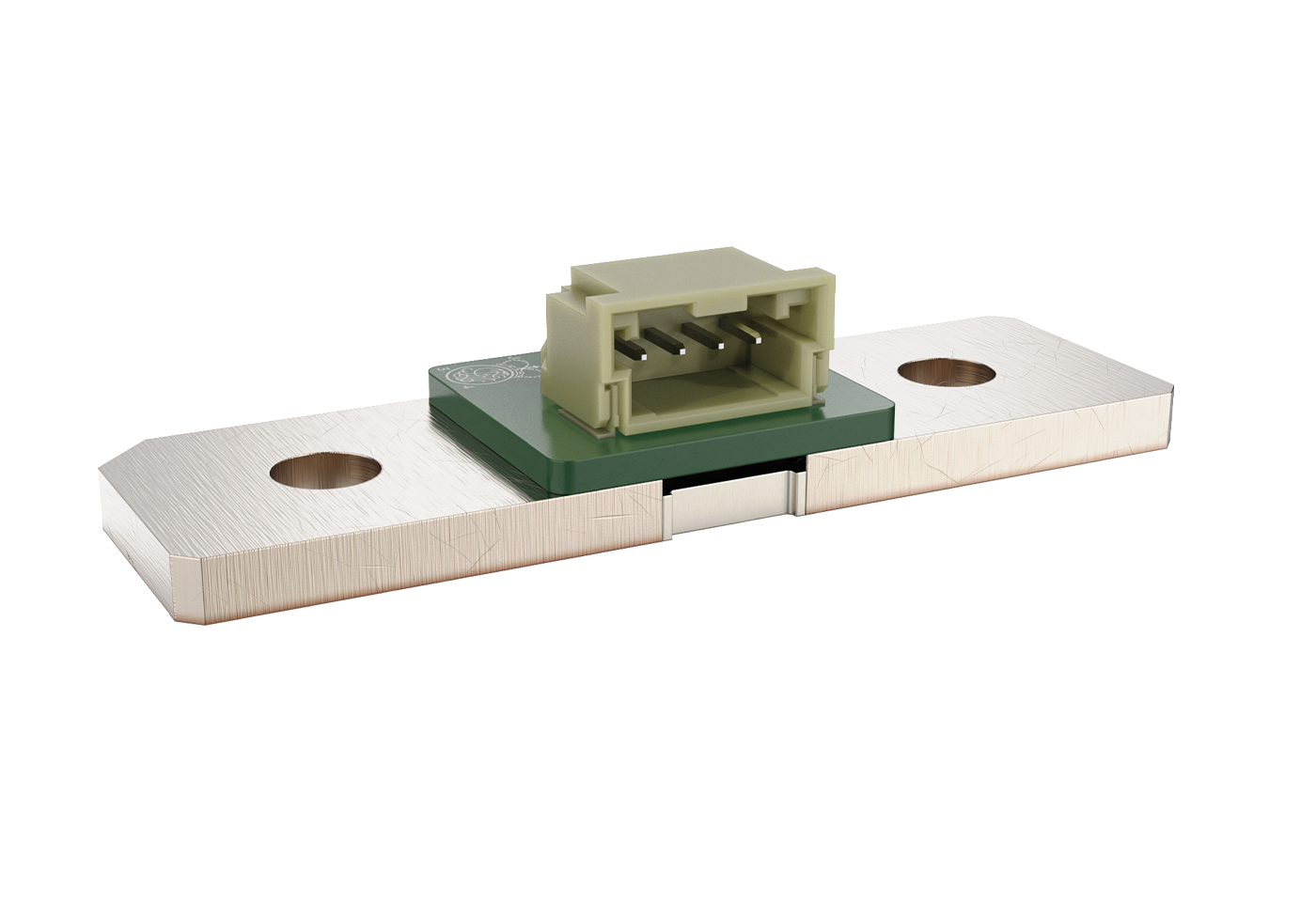

BSL
Where very high accuracy and reliability and a separation of the battery management system from the busbar currents is key to success, the analog sensor series from Isabellenhütte is the perfect fit. The temperature and current measurement designed for battery management ICs offers two of the most important functions of the battery management system with optimum functionality and expertise in shunt-based current measurement. Resistance value 100µOhm, NTC temperature measurement and DMC for factor-based TCR compensation
| Product area: | Resistor |
|---|---|
| Size: | 5216 |
| Power (Watt): | 10 |
| Tol (%): | 5.00 |
| Res (Ohm): | 0.0001 |

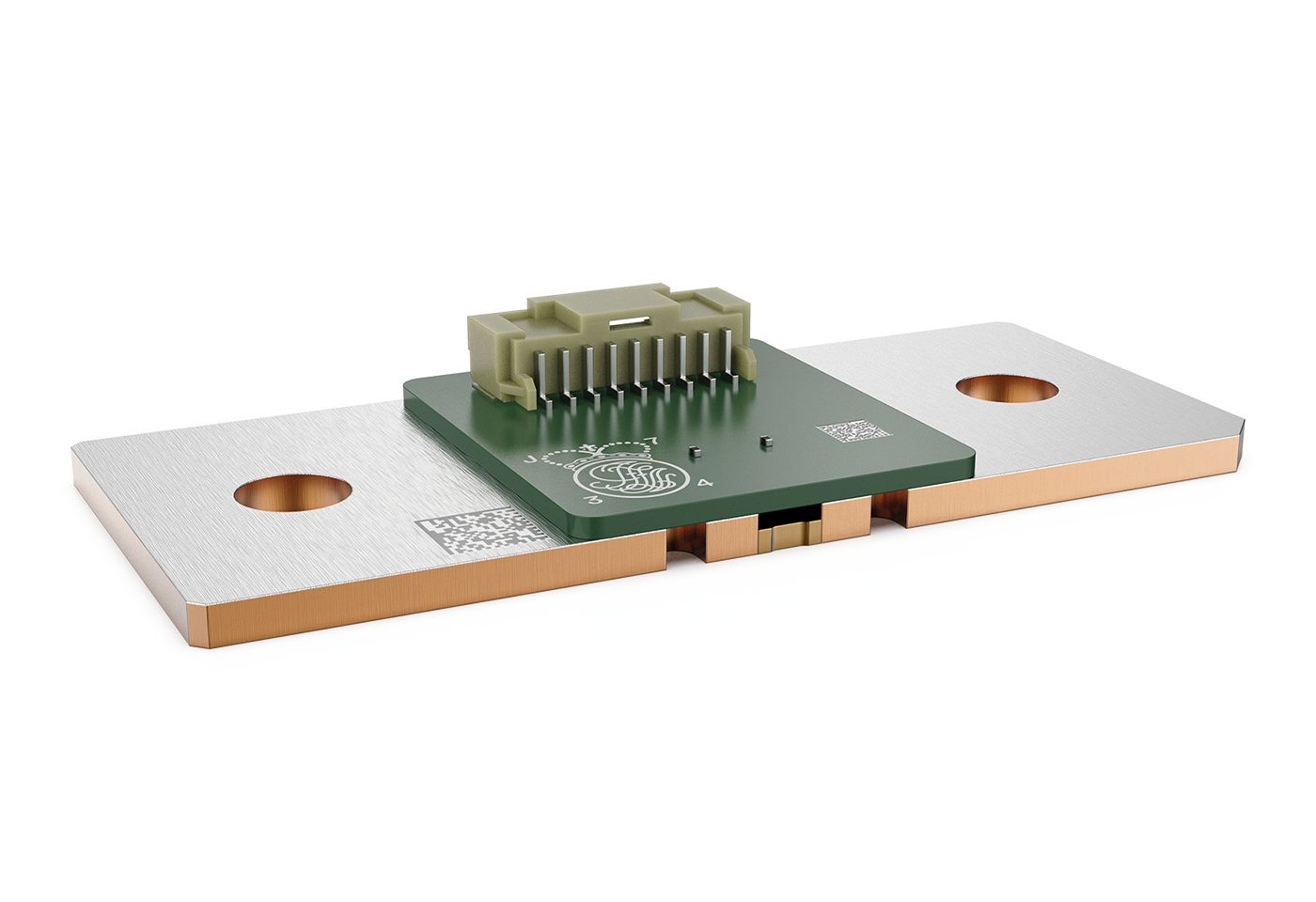

BSN
Where very high accuracy and reliability and a separation of the battery management system from the busbar currents is key to success, the analog sensor series from Isabellenhütte is the perfect fit. The redundant temperature and current measurement designed for battery management ICs offers two of the most important functions of the battery management system with optimum functionality and expertise in shunt-based current measurement. Resistance value 25µOhm, NTC temperature measurement and DMC for factor-based TCR compensation
| Product area: | Resistor |
|---|---|
| Size: | 8436 |
| Power (Watt): | 36 |
| Tol (%): | 5.00 |
| Res (Ohm): | 0.000025 |

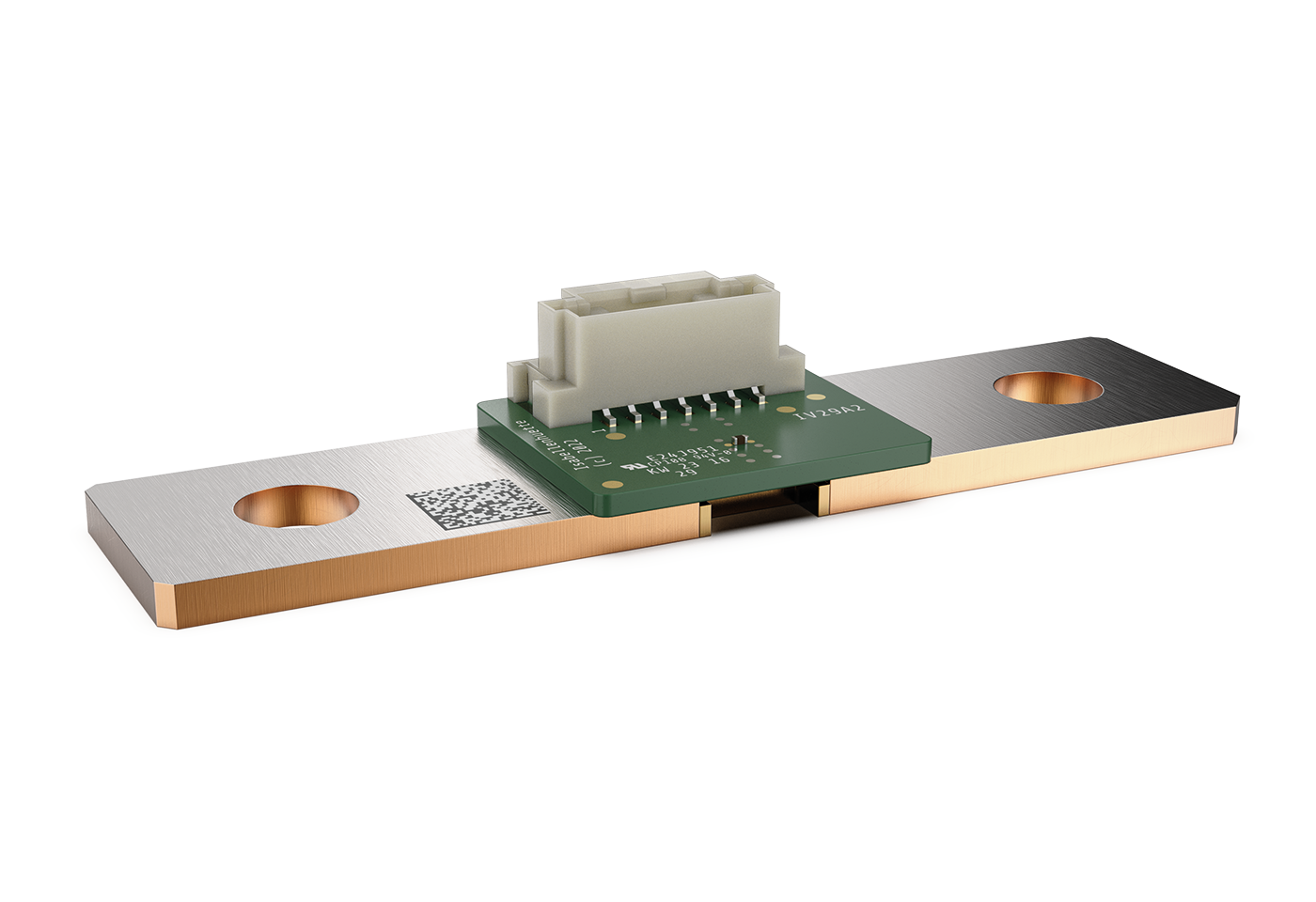

BSS
Where very high accuracy and reliability and a separation of the battery management system from the busbar currents is key to success, the analog sensor series from Isabellenhütte is the perfect fit. The temperature and current measurement designed for battery management ICs offers two of the most important functions of the battery management system with optimum functionality and expertise in shunt-based current measurement.
| Product area: | Resistor |
|---|---|
| Size: | 8420 |
| Power (Watt): | 20 - 30 |
| Tol (%): | 5.00 |
| Res (Ohm): | 0.00005 - 0.0001 |

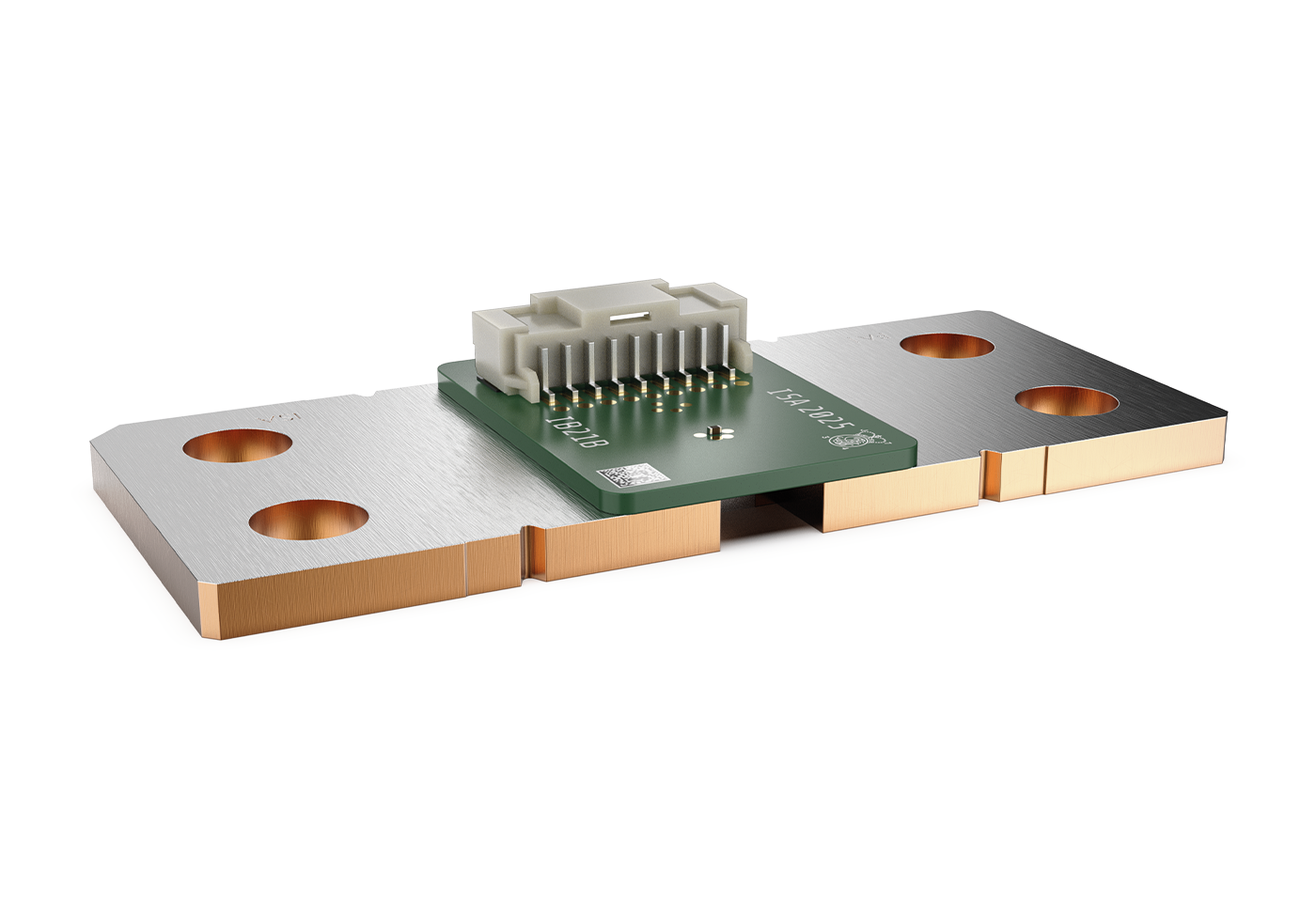

BSX
Where very high accuracy and reliability and a separation of the battery management system from the busbar currents is key to success, the analog sensor series from Isabellenhütte is the perfect fit. The temperature and current measurement designed for battery management ICs offers two of the most important functions of the battery management system with optimum functionality and expertise in shunt-based current measurement. Resistance value 25 µOhm, NTC temperature measurement and DMC for factor-based TCR compensation.
| Product area: | Resistor |
|---|---|
| Size: | 8436 |
| Power (Watt): | 45 |
| Tol (%): | 5.00 |
| Res (Ohm): | 0.000025 |

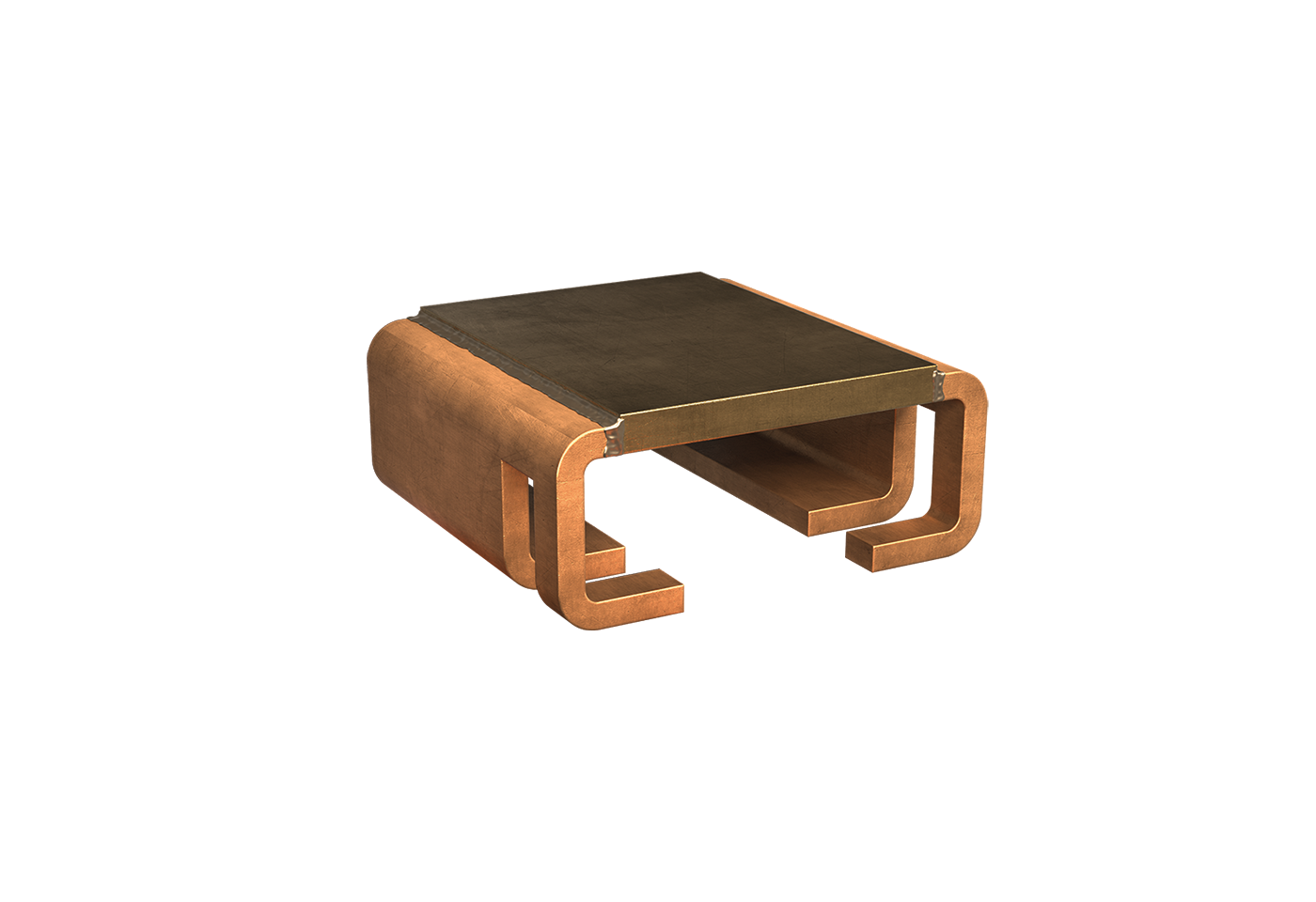

BVB
4-terminal resistor made of composite material. Ideal for use on DCB and FR4 Space-saving design.
| Product area: | Resistor |
|---|---|
| Size: | 2725 |
| Power (Watt): | 3 - 12 |
| Tol (%): | 1.00 |
| Res (Ohm): | 0.0002 - 0.005 |

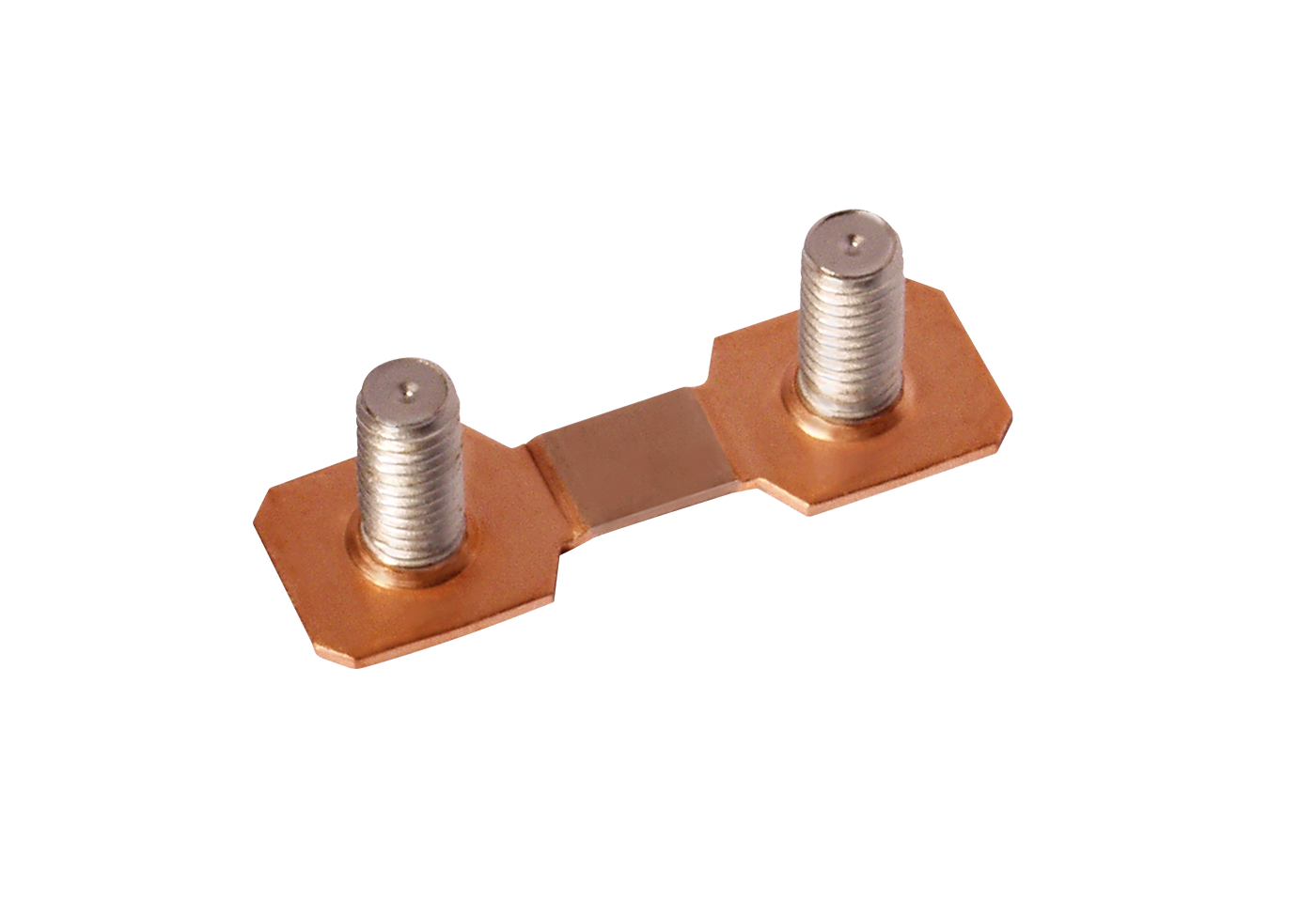

BVD
Precision resistor for kWh meters and battery chargers. Power connection also possible via pressed-in threaded bolts.
| Product area: | Resistor |
|---|---|
| Size: | 3512 |
| Power (Watt): | 3 |
| Tol (%): | 5.00 |
| Res (Ohm): | 0.0005 |

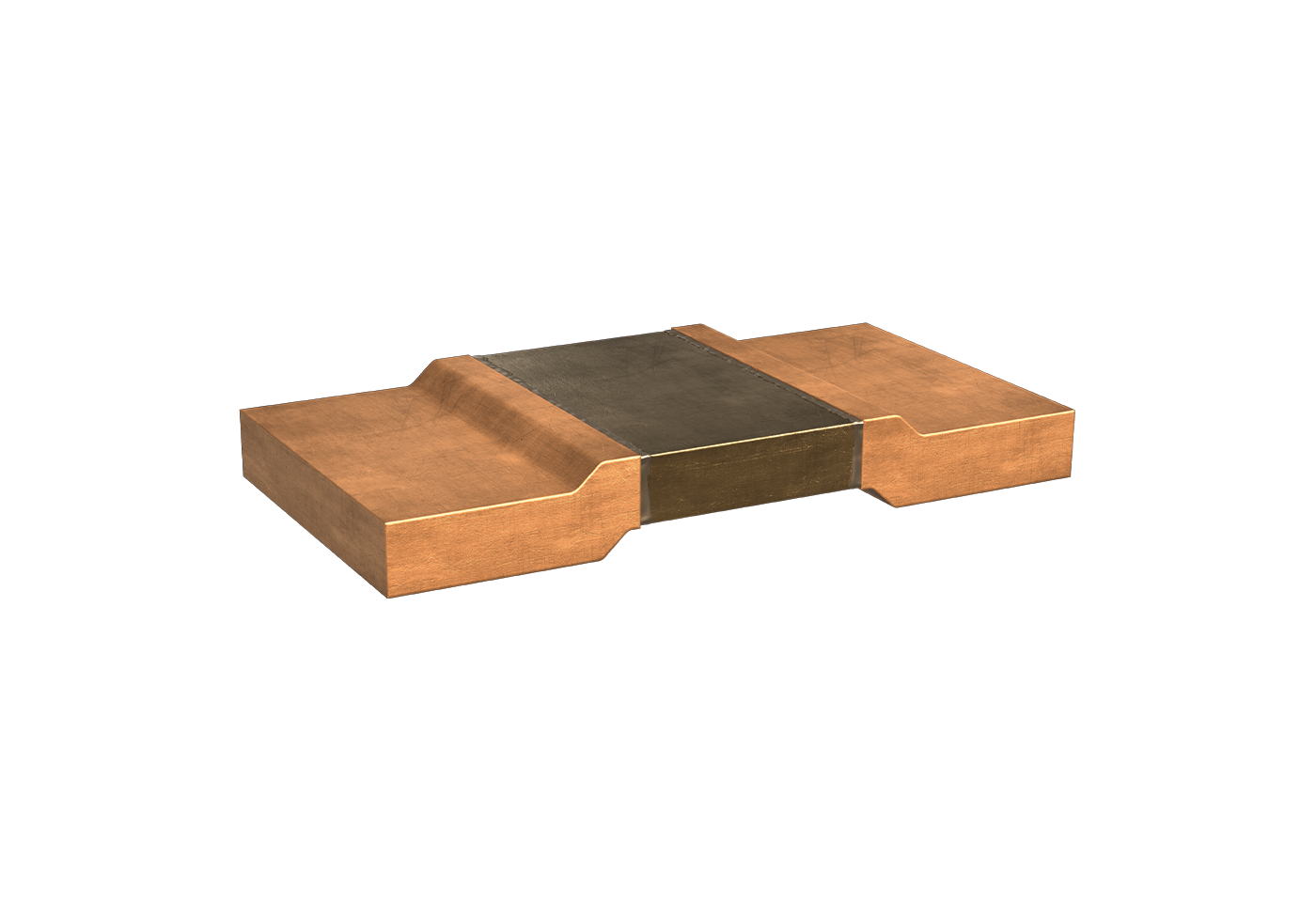

BVE
2-terminal resistor made of composite material. Very low resistance values. Large connectors for high currents.
| Product area: | Resistor |
|---|---|
| Size: | 5930 |
| Power (Watt): | 4 - 15 |
| Tol (%): | 1.00 - 5.00 |
| Res (Ohm): | 0.0001 - 0.003 |

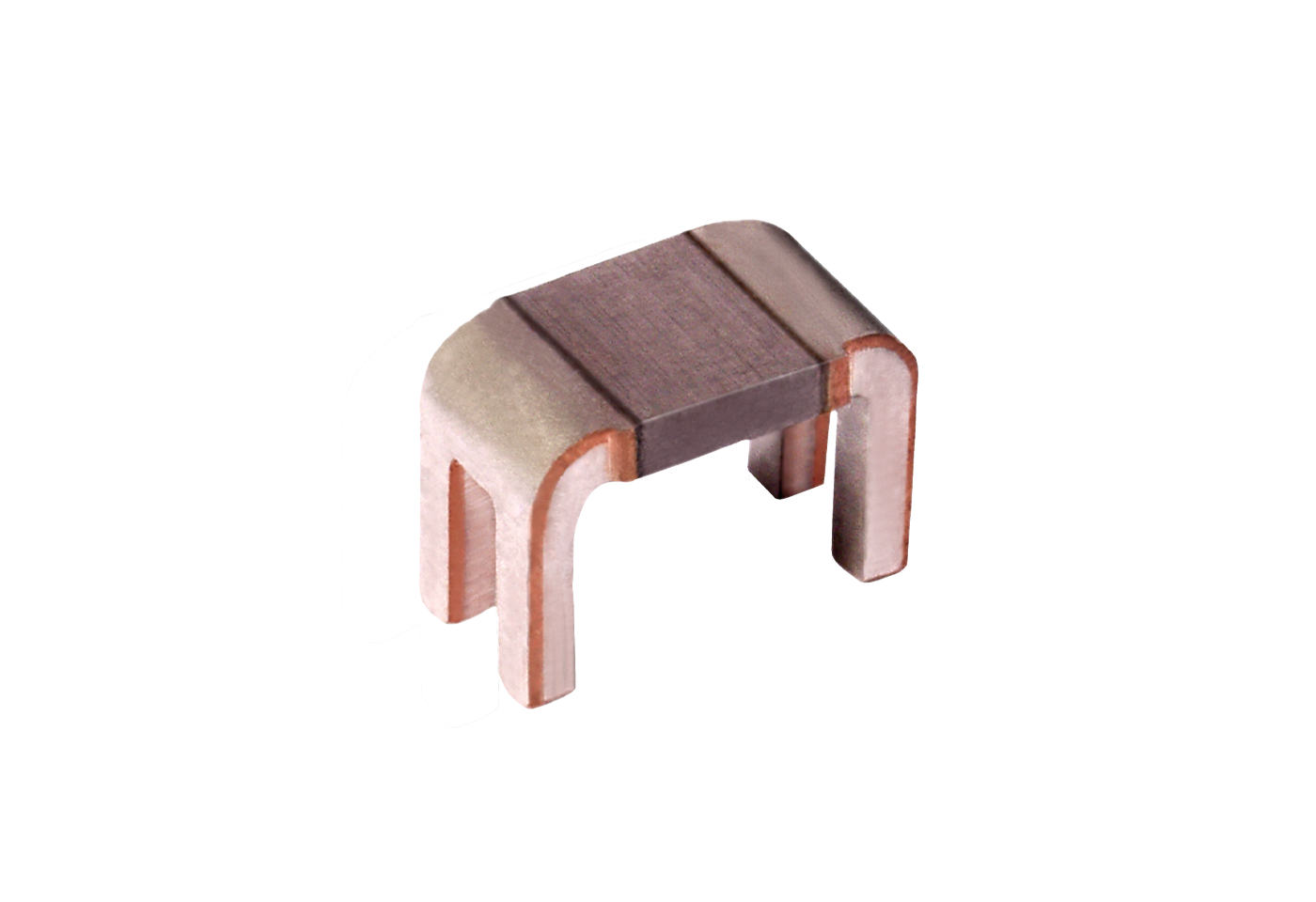

BVH
2-terminal resistor made of composite material. Large connectors for high currents.
| Product area: | Resistor |
|---|---|
| Size: | 3820 |
| Power (Watt): | 5 |
| Tol (%): | 3.00 - 5.00 |
| Res (Ohm): | 0.0005 |

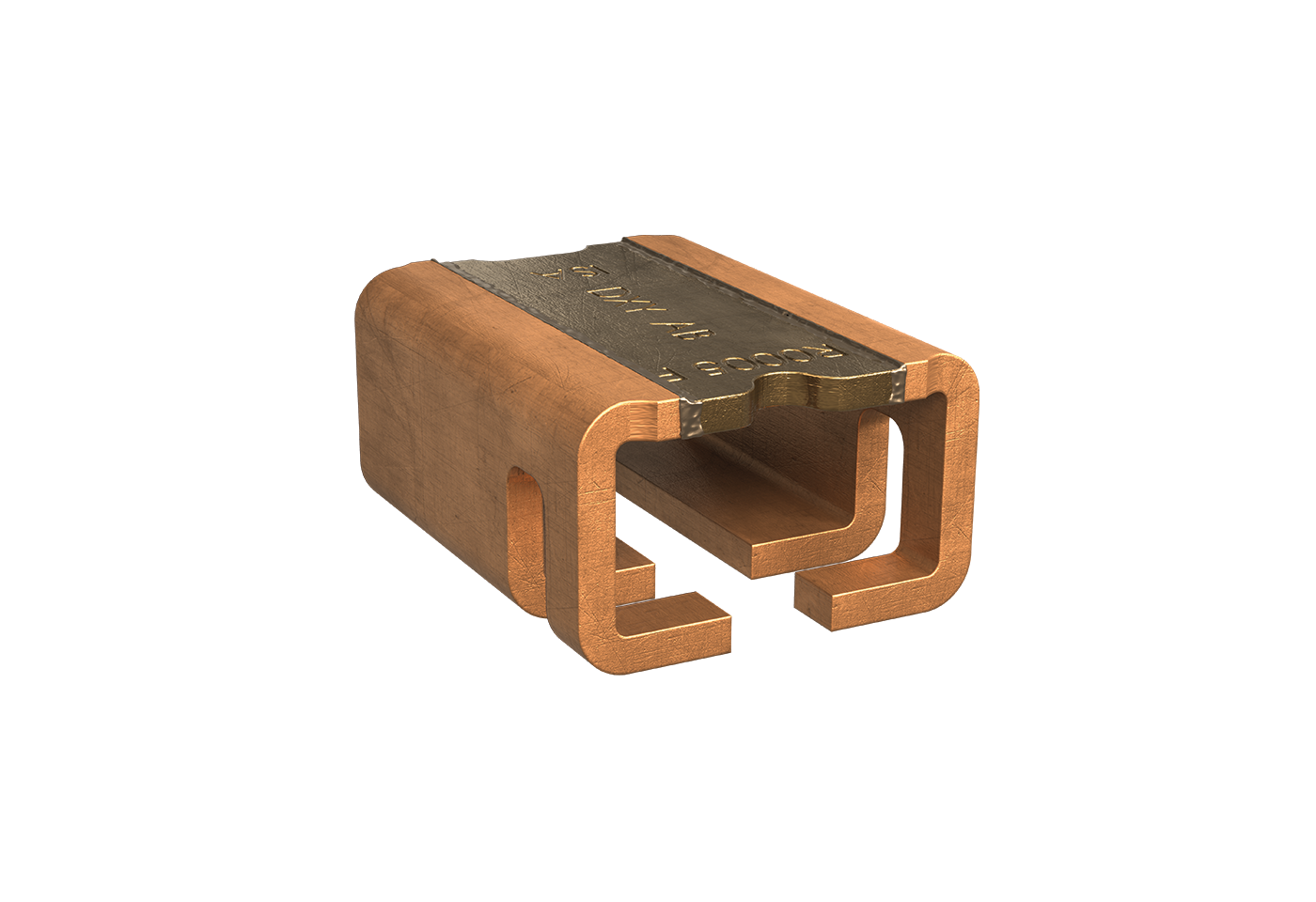

BVN
4-terminal resistor made of composite material. Ideal for use on DCB and FR4. Space-saving design.
| Product area: | Resistor |
|---|---|
| Size: | 1216 |
| Power (Watt): | 3 - 10 |
| Tol (%): | 1.00 - 5.00 |
| Res (Ohm): | 0.0003 - 0.003 |

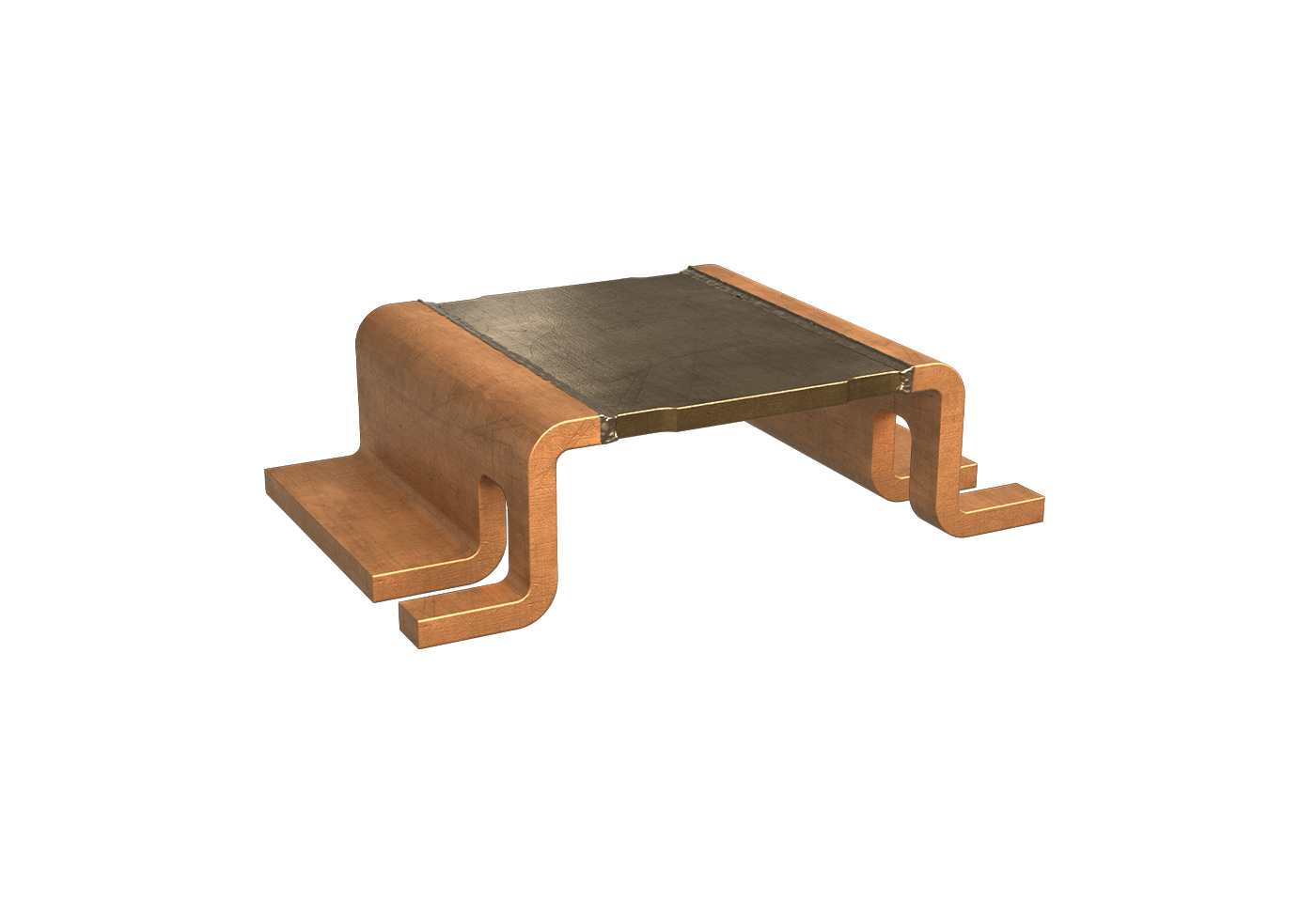

BVR
4-terminal resistor made of composite material. Ideal for use on DCB and FR4. Very low resistance values.
| Product area: | Resistor |
|---|---|
| Size: | 4026 |
| Power (Watt): | 5 - 12 |
| Tol (%): | 1.00 - 5.00 |
| Res (Ohm): | 0.0002 - 0.003 |

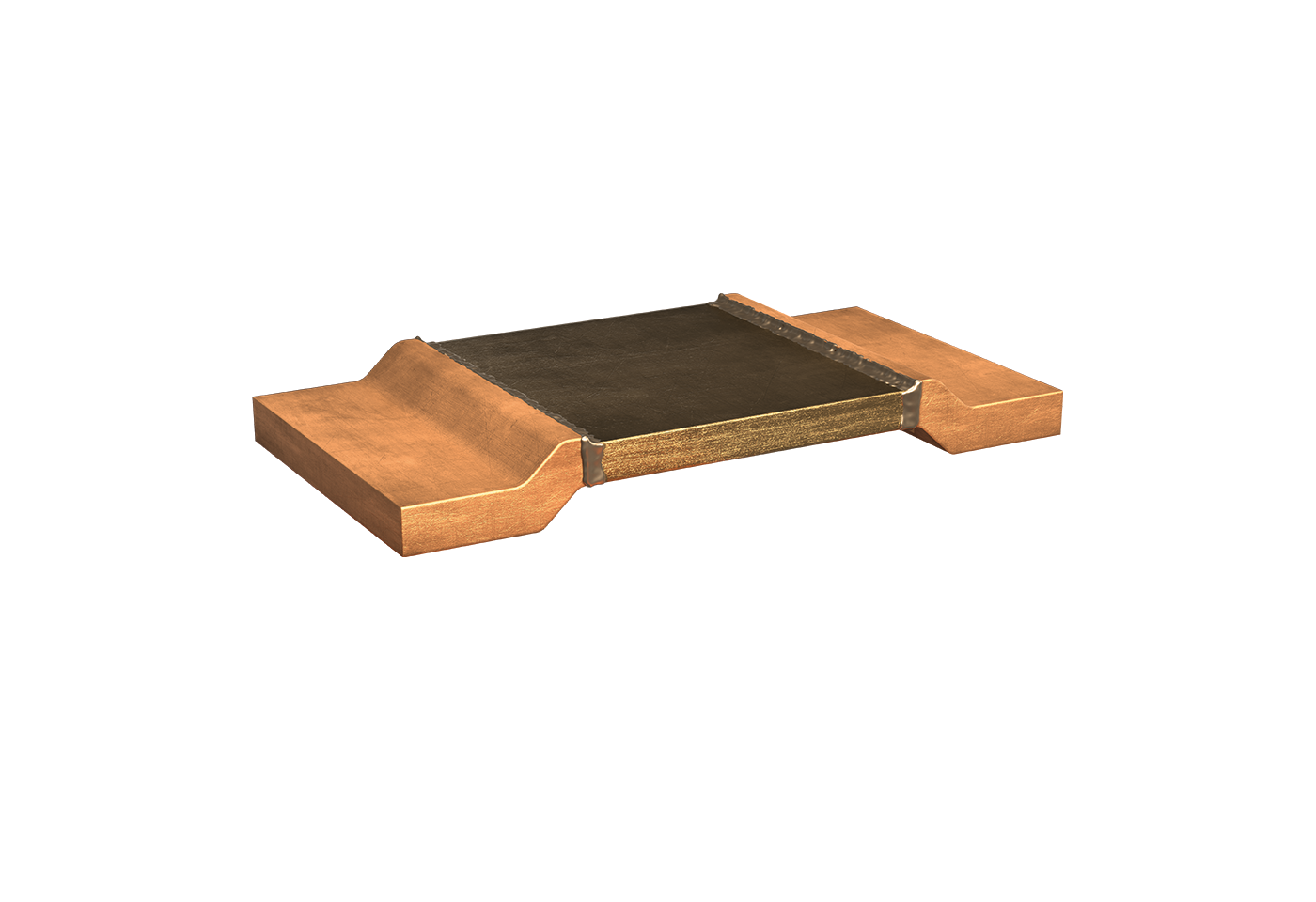

BVS
2-terminal resistor made of composite material. Very low resistance values. Large connectors for high currents.
| Product area: | Resistor |
|---|---|
| Size: | 3920 |
| Power (Watt): | 2.5 - 12 |
| Tol (%): | 1.00 - 5.00 |
| Res (Ohm): | 0.0001 - 0.005 |
BVT
2-terminal resistor made of composite material. Very low resistance values. Large connectors for high currents.
| Product area: | Resistor |
|---|---|
| Size: | 2512 |
| Power (Watt): | 1.5 - 10 |
| Tol (%): | 1.00 - 5.00 |
| Res (Ohm): | 0.0002 - 0.0068 |
BVZ
2-terminal resistor made of composite material. Ideal for use on DCB. Space-saving design.
| Product area: | Resistor |
|---|---|
| Size: | 4026 |
| Power (Watt): | 5 - 13 |
| Tol (%): | 1.00 - 5.00 |
| Res (Ohm): | 0.000525 - 0.003 |

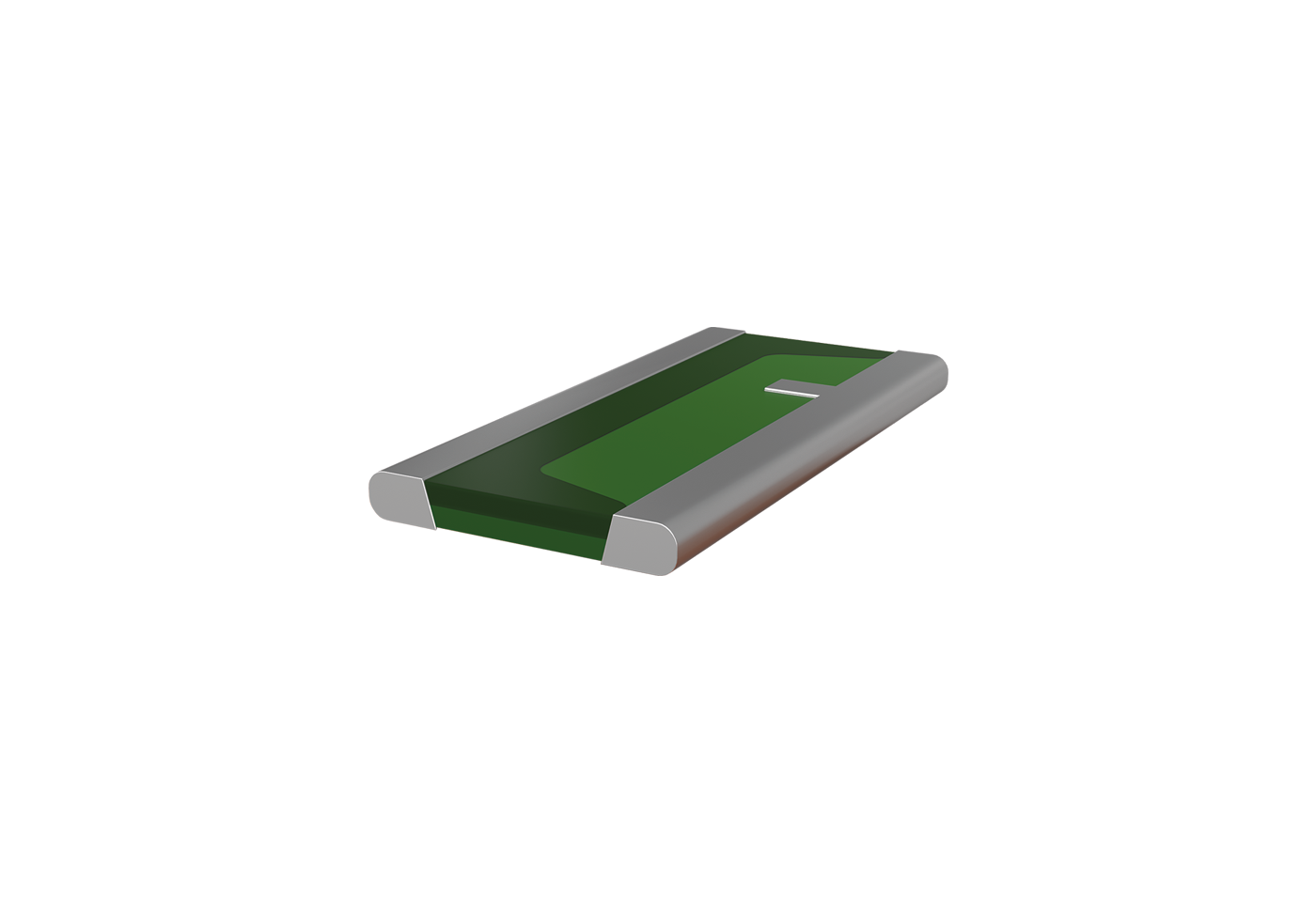

CLK
2-terminal resistor. Wide terminal. Large solder pads. Low resistance values down to 0.001 Ohm. High load. Ideal for use in high-performance applications.
| Product area: | Resistor |
|---|---|
| Size: | 0612 |
| Power (Watt): | 1 - 3 |
| Tol (%): | 1.00 - 5.00 |
| Res (Ohm): | 0.001 - 0.01 |
CLP
2-terminal resistor. Wide terminal. Large solder pads. Low resistance values down to 0.002 Ohm. High load. Ideal for use in high-performance applications.
| Product area: | Resistor |
|---|---|
| Size: | 1020 |
| Power (Watt): | 1 - 5 |
| Tol (%): | 1.00 - 5.00 |
| Res (Ohm): | 0.002 - 0.01 |
CMK
2-terminal resistor for medium power requirements. Low TC <50ppm/K for the entire value range.
| Product area: | Resistor |
|---|---|
| Size: | 1206 |
| Power (Watt): | 0.5 - 4 |
| Tol (%): | 1.00 - 5.00 |
| Res (Ohm): | 0.005 - 0.1 |

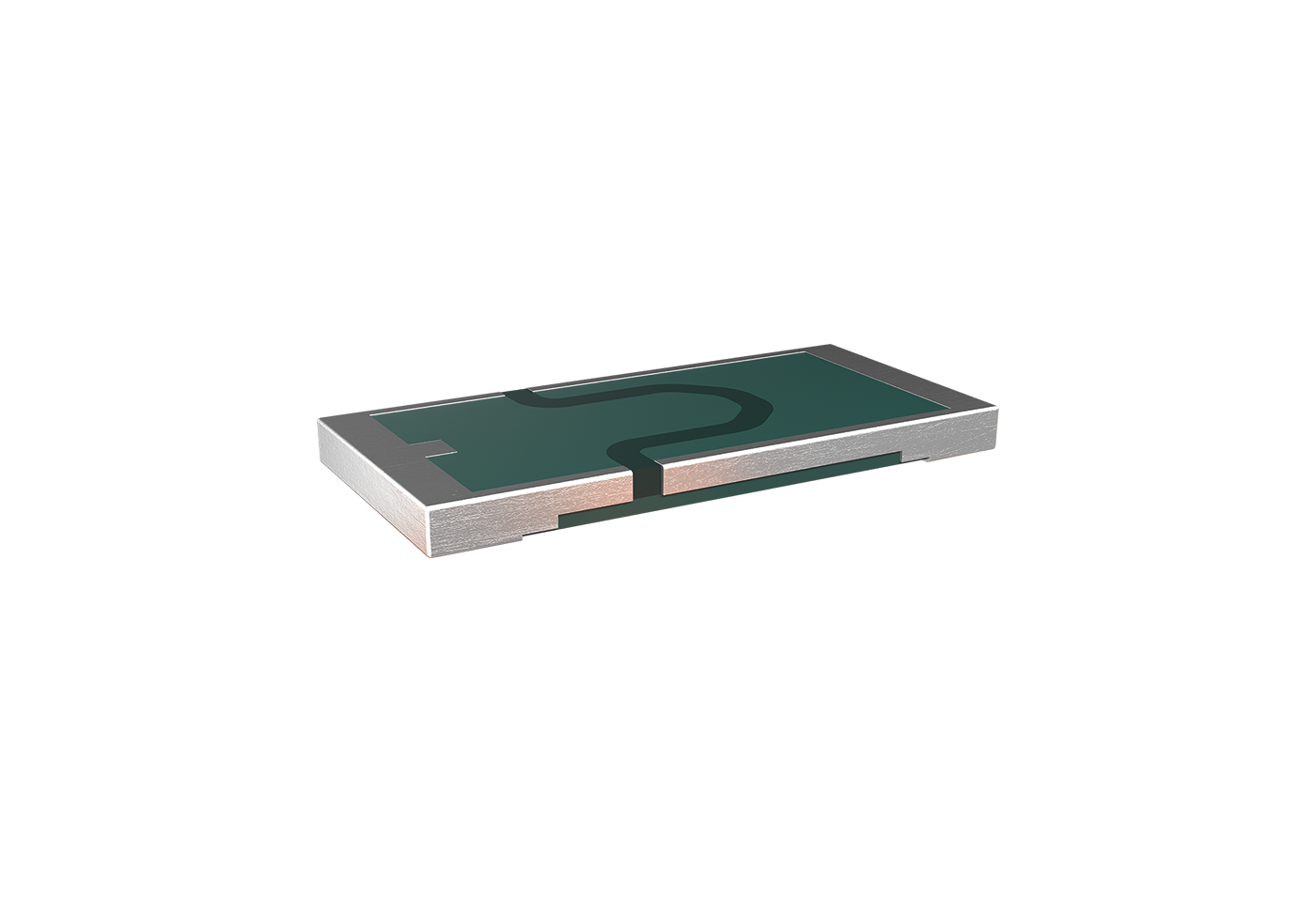

CMP
2-terminal resistor for medium power requirements. Low TC <50ppm/K for the entire value range.
| Product area: | Resistor |
|---|---|
| Size: | 2010 |
| Power (Watt): | 1 - 2 |
| Tol (%): | 1.00 - 5.00 |
| Res (Ohm): | 0.01 - 0.5 |
CMS
2-terminal resistor for medium power requirements. Low TC <50ppm/K for the entire value range.
| Product area: | Resistor |
|---|---|
| Size: | 2512 |
| Power (Watt): | 2 - 2.5 |
| Tol (%): | 1.00 - 5.00 |
| Res (Ohm): | 0.01 - 0.5 |

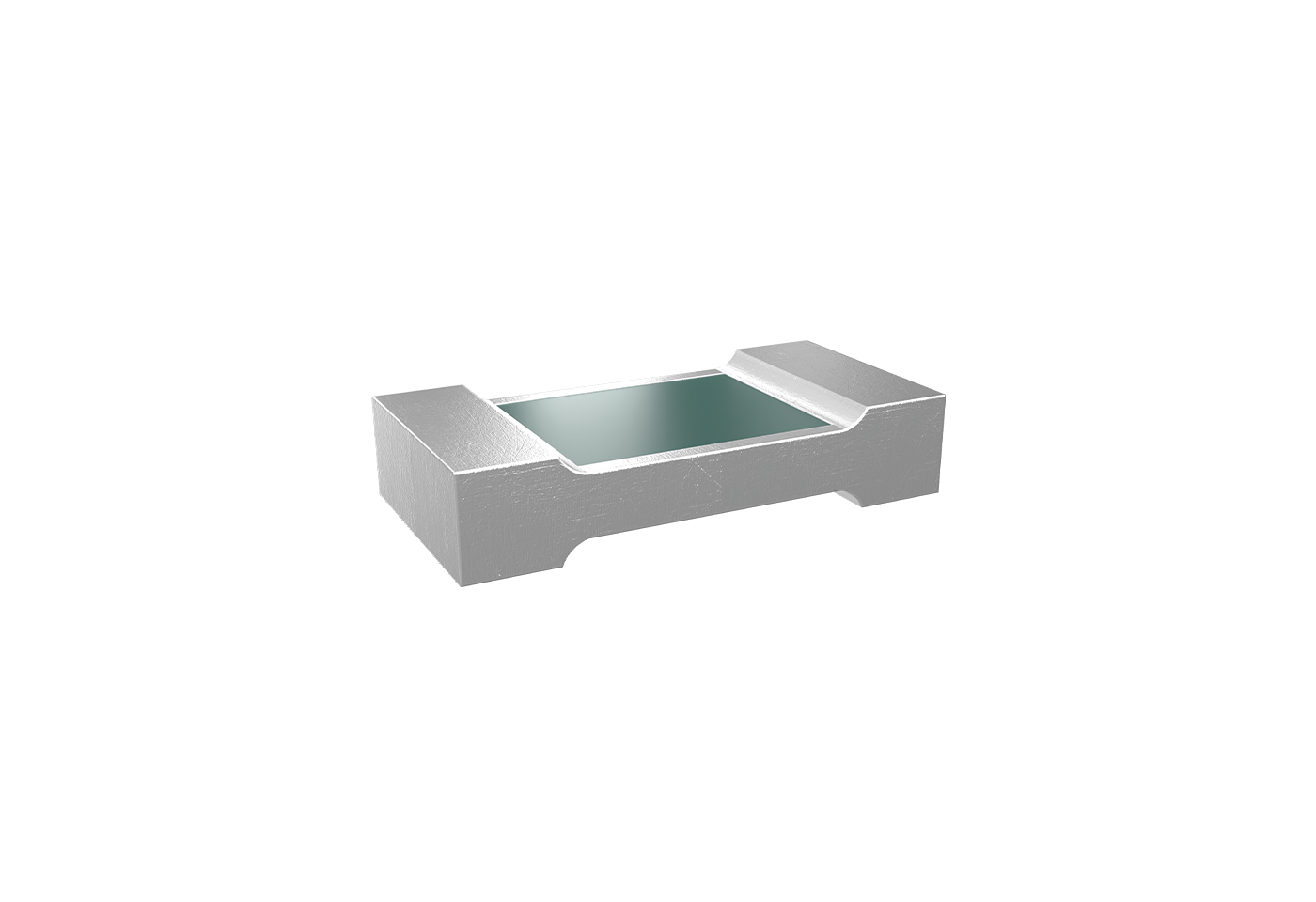

FMH
Zero Ohm Resistor / Jumper. Solid metal plate design. Ideal for high load applications up to 35 A.
| Product area: | Resistor |
|---|---|
| Size: | 0603 |
| Power (Watt): | 0.135 |
| Res (Ohm): | 0.0002 |

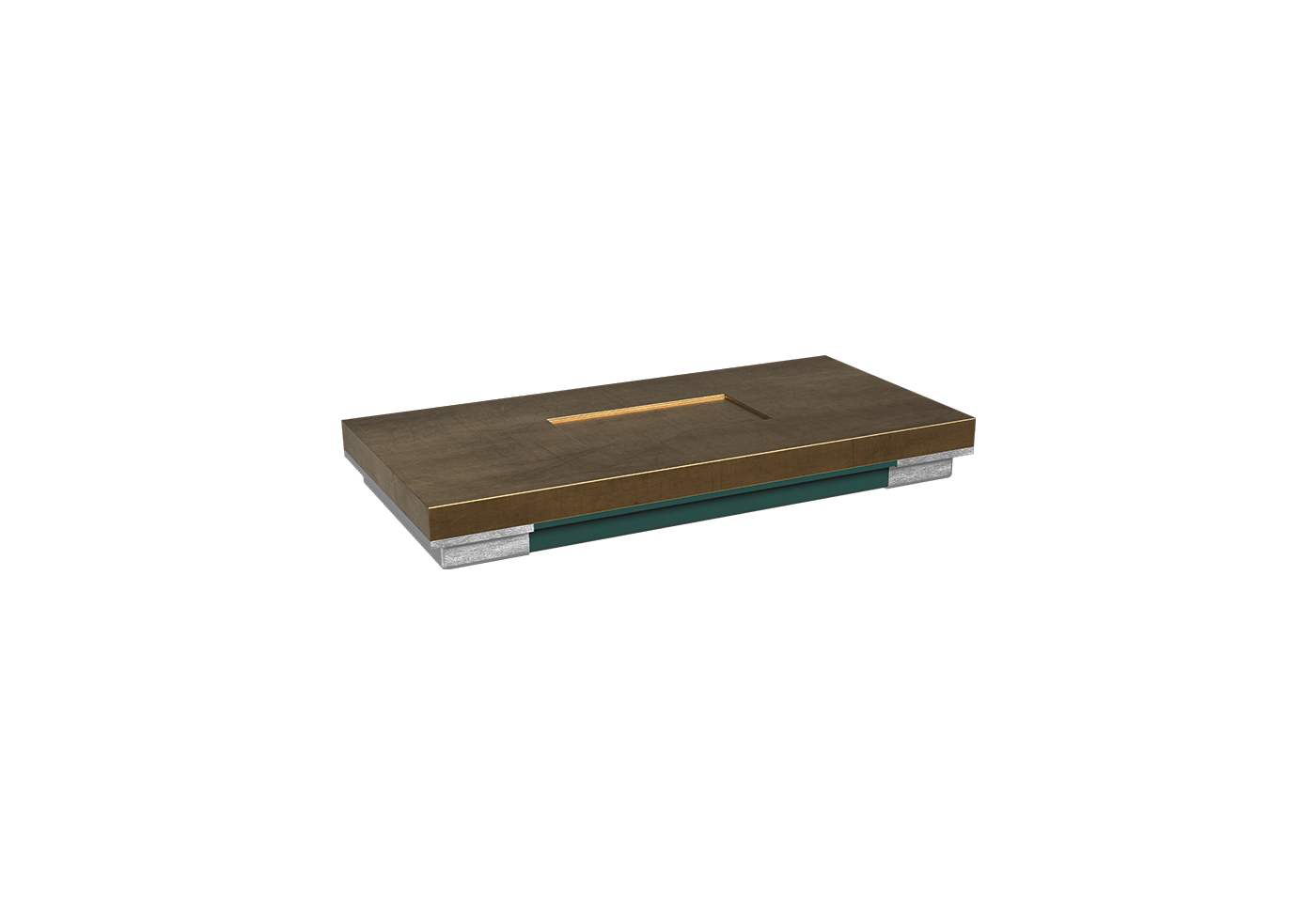

FMK
2-terminal resistor. Low resistance values <=6 milliohms. Good TC. Solid construction as metal plate. High pulse load.
| Product area: | Resistor |
|---|---|
| Size: | 1206 |
| Power (Watt): | 1 - 3.5 |
| Tol (%): | 1.00 - 10.0 |
| Res (Ohm): | 0.002 - 0.006 |
FMP
2-terminal resistor. Low resistance values <=6 milliohms. Good TC. Solid construction as metal plate. High pulse load.
| Product area: | Resistor |
|---|---|
| Size: | 2010 |
| Power (Watt): | 1 - 3.5 |
| Tol (%): | 1.00 - 5.00 |
| Res (Ohm): | 0.002 - 0.006 |

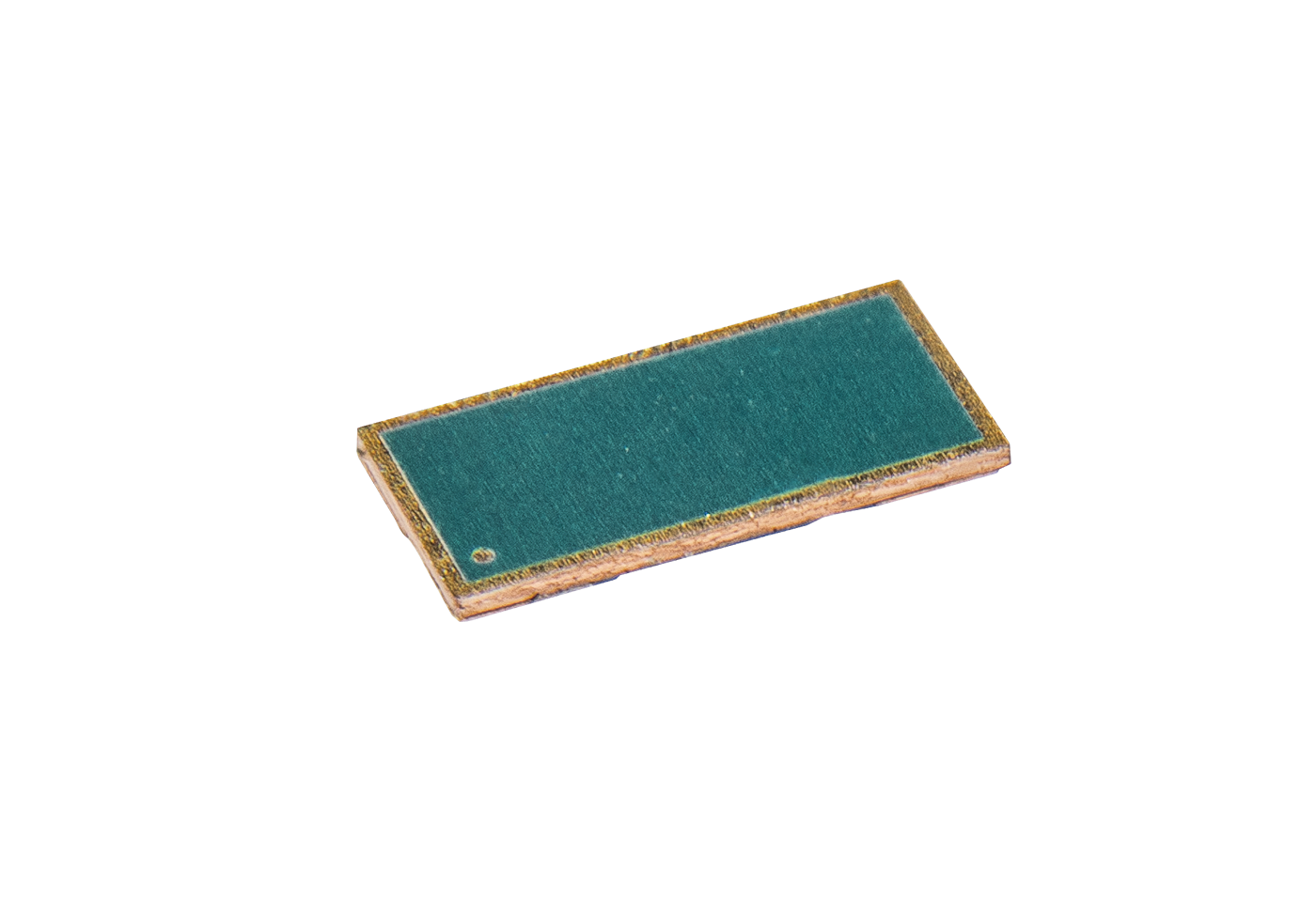

GMP
4-terminal resistor with gold-plated contact surface. Ideal for conductive bonding or soldering applications.
| Product area: | Resistor |
|---|---|
| Size: | 2010 |
| Power (Watt): | 1 |
| Tol (%): | 1.00 - 5.00 |
| Res (Ohm): | 0.01 - 0.08 |

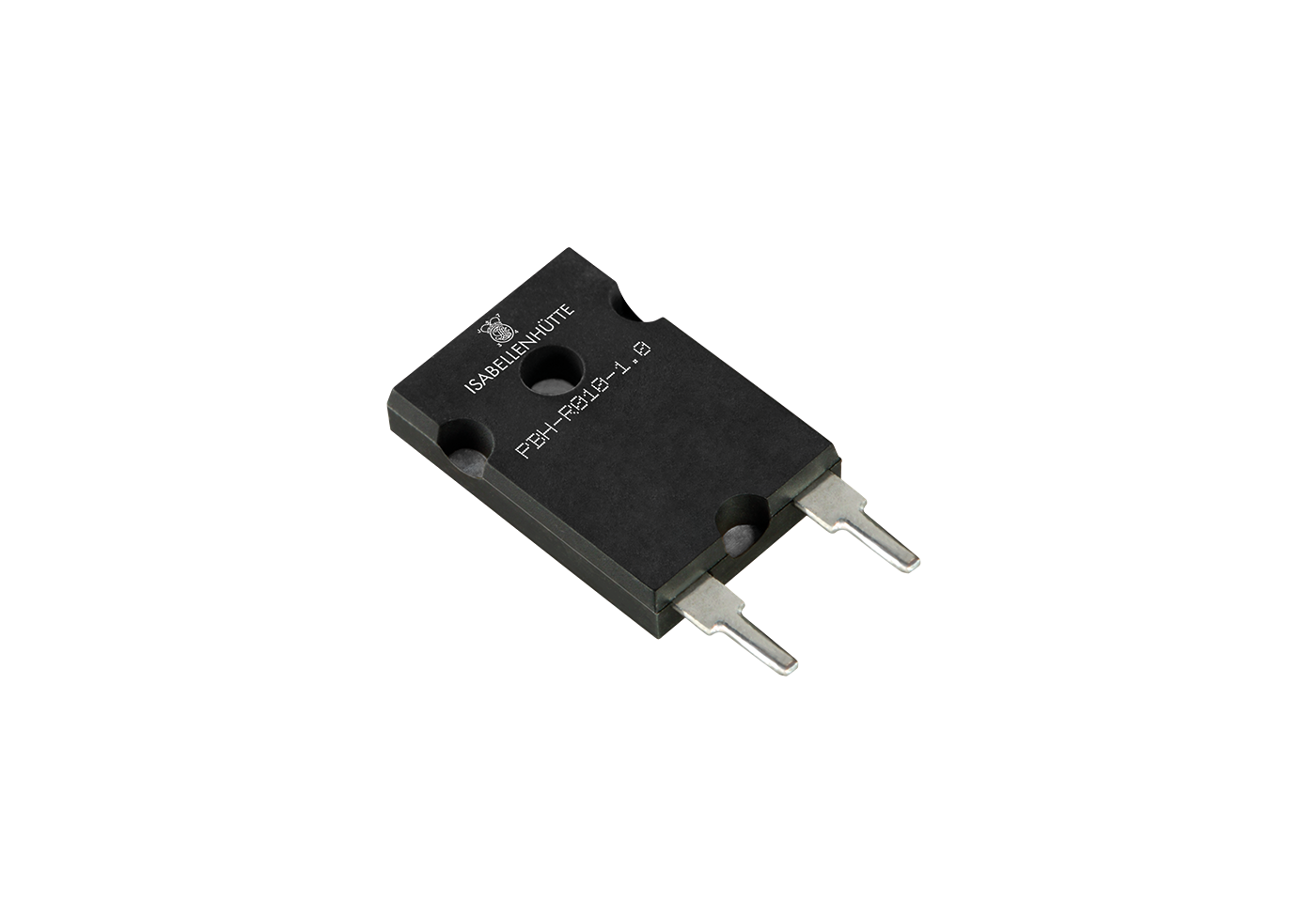

PBH
2-terminal resistor in space-saving design similar to TO-247. 10 W power – mounted on heat sink.
| Product area: | Resistor |
|---|---|
| Size: | TO-247 |
| Power (Watt): | 3 - 10 |
| Tol (%): | 0.500 - 5.00 |
| Res (Ohm): | 0.0036 - 100 |

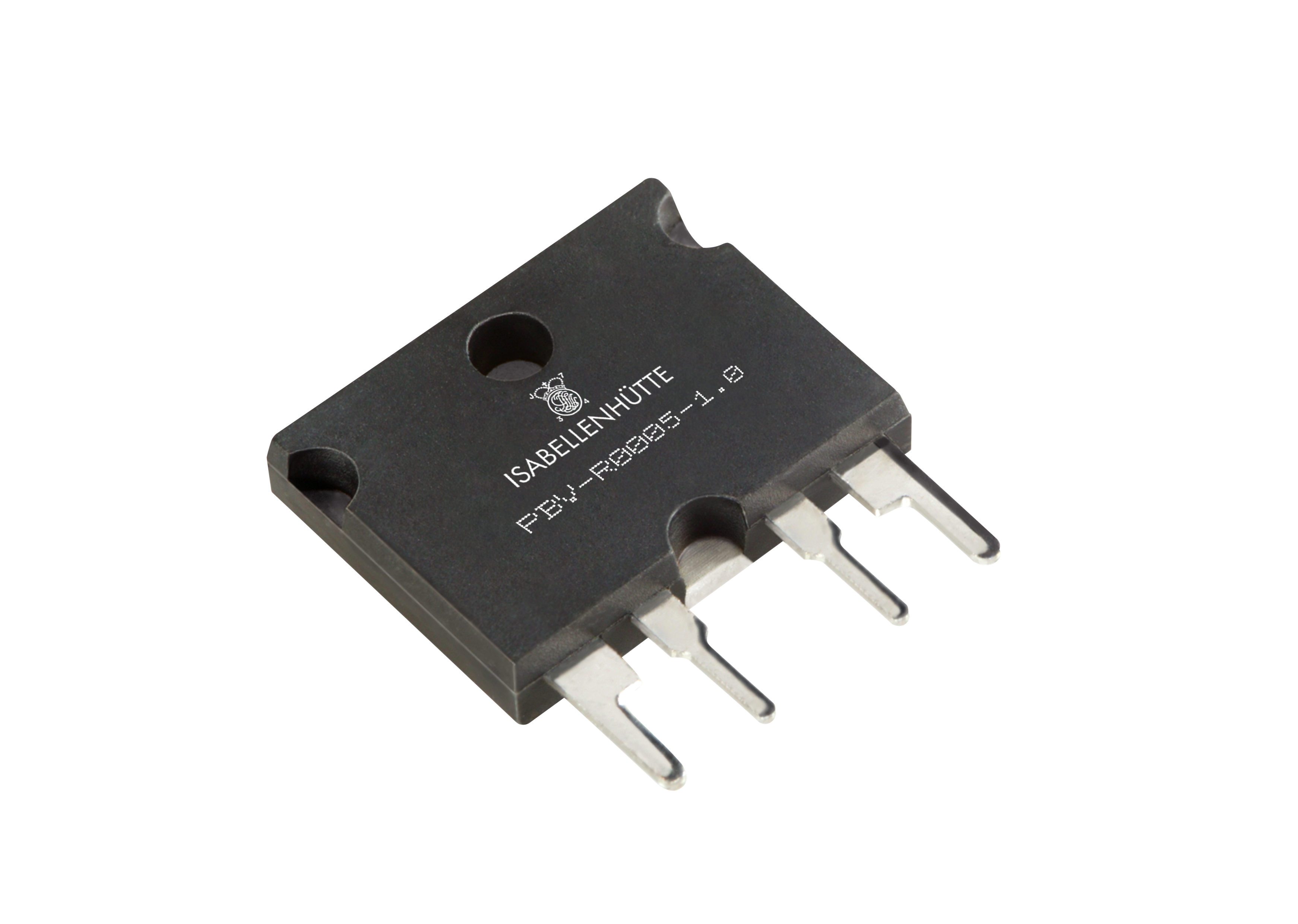

PBV
4-terminal resistor wired. 10 W power – mounted on heat sink.
| Product area: | Resistor |
|---|---|
| Size: | 2317 |
| Power (Watt): | 3 - 10 |
| Tol (%): | 0.500 - 5.00 |
| Res (Ohm): | 0.0005 - 1 |

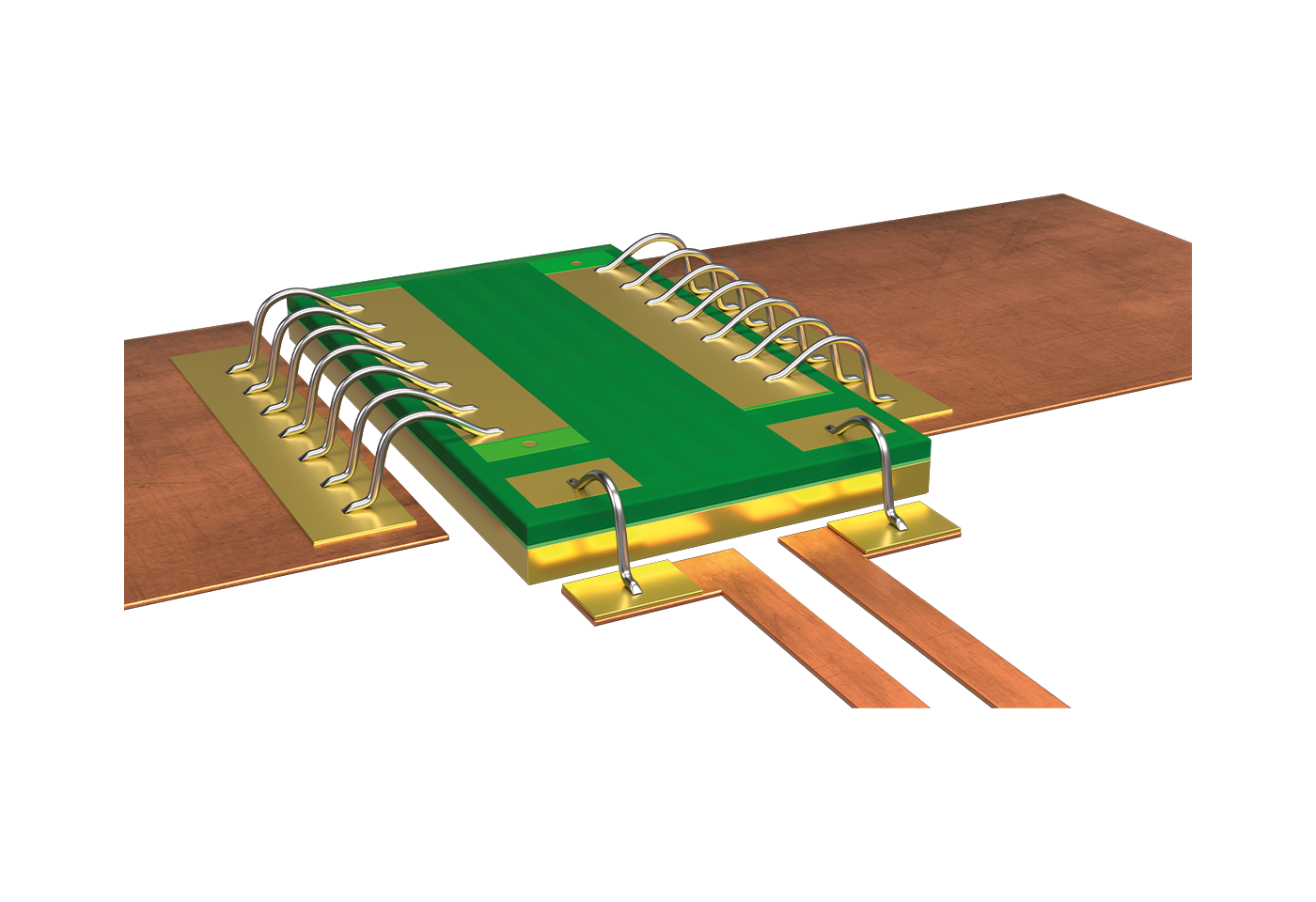

PLU
Bondable 4-wire resistor with gold-plated contact surface. High continuous power.
| Product area: | Resistor |
|---|---|
| Size: | 2439 |
| Power (Watt): | 5 |
| Tol (%): | 5.00 |
| Res (Ohm): | 0.001 |

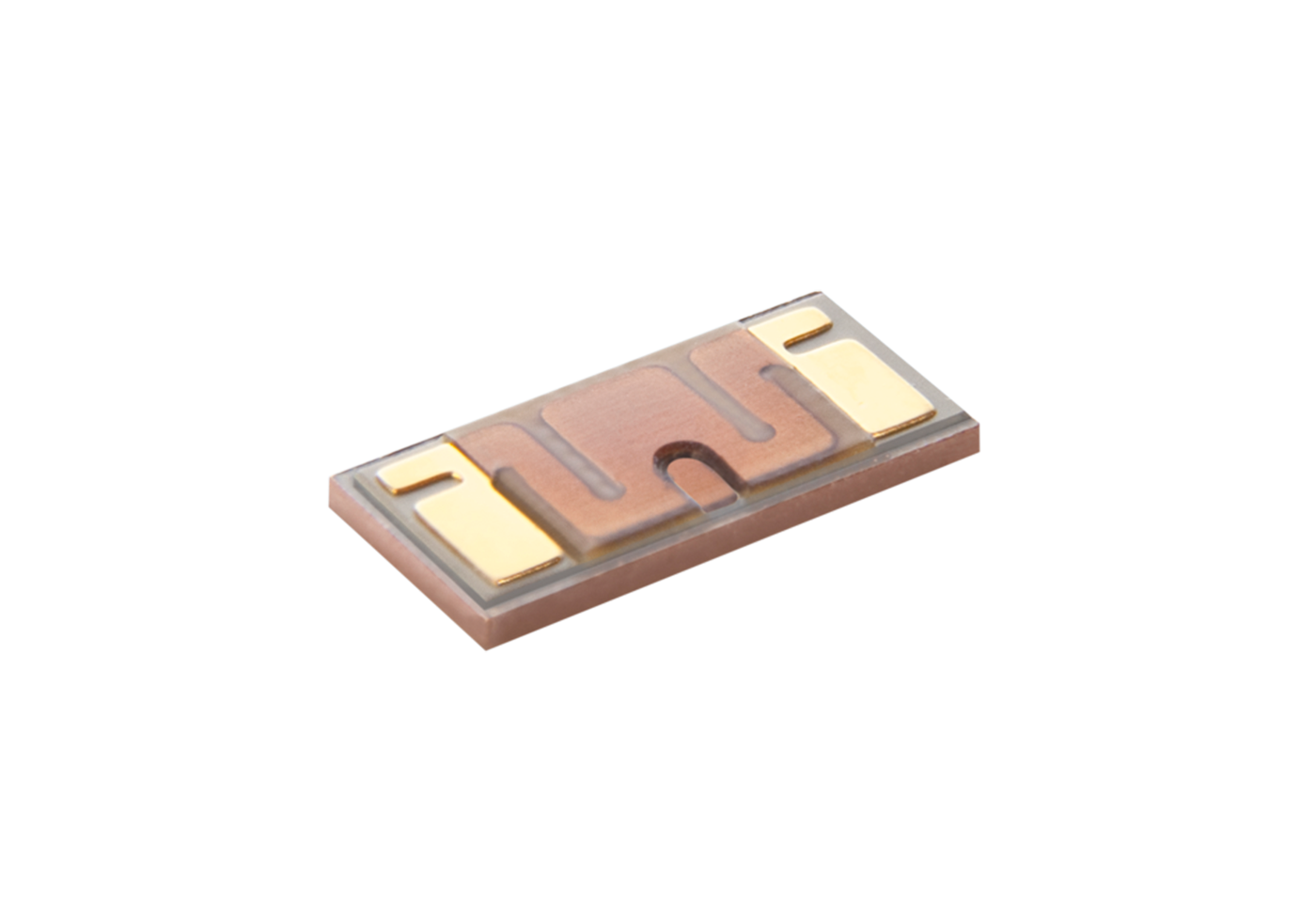

PMH-C
Bondable high-power resistor with gold-plated contact surface. 4-terminal version. High continuous power.
| Product area: | Resistor |
|---|---|
| Size: | 2512 |
| Power (Watt): | 5 |
| Tol (%): | 0.500 - 5.00 |
| Res (Ohm): | 0.005 - 0.050 |

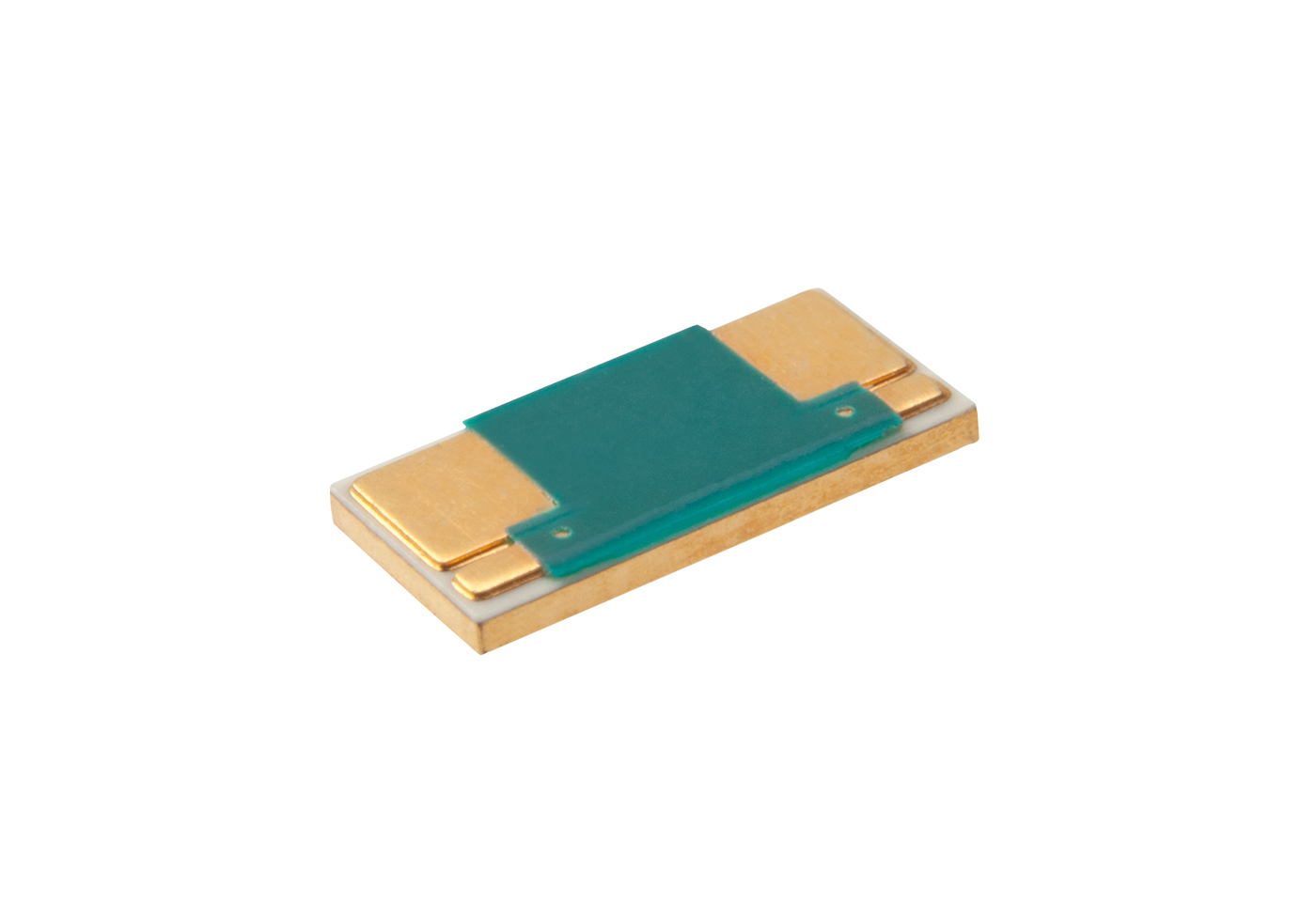

PMH-D
Bondable high-power resistor with gold-plated contact surface. 4-terminal version. High continuous power.
| Product area: | Resistor |
|---|---|
| Size: | 2512 |
| Power (Watt): | 5 |
| Tol (%): | 5.00 |
| Res (Ohm): | 0.002 |

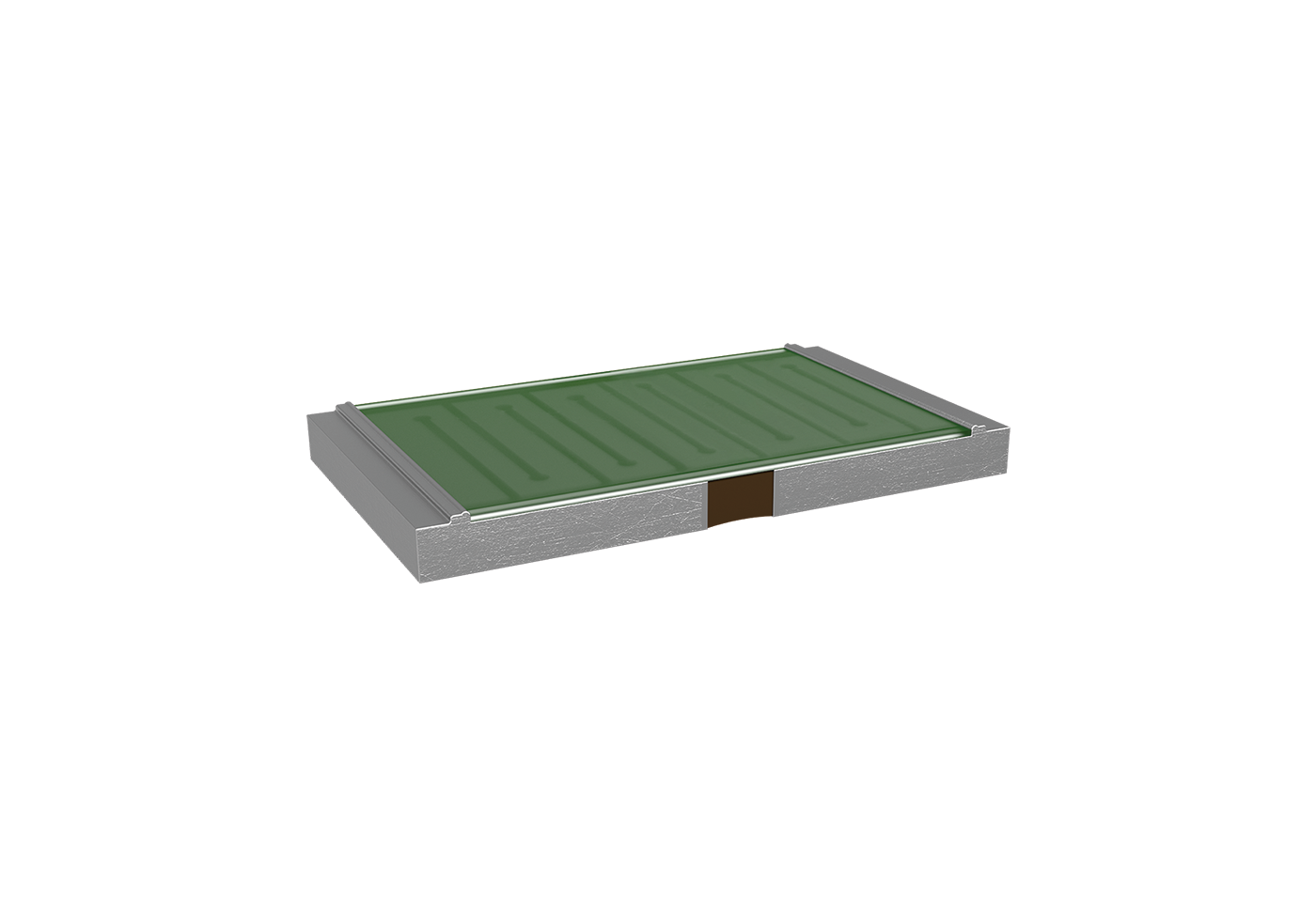

PMT
Pulse load resistor for snubber circuits or pre-charging and discharging applications.
| Product area: | Resistor |
|---|---|
| Size: | 2817 |
| Tol (%): | 10.0 |
| Res (Ohm): | 0.050 - 2.5 |

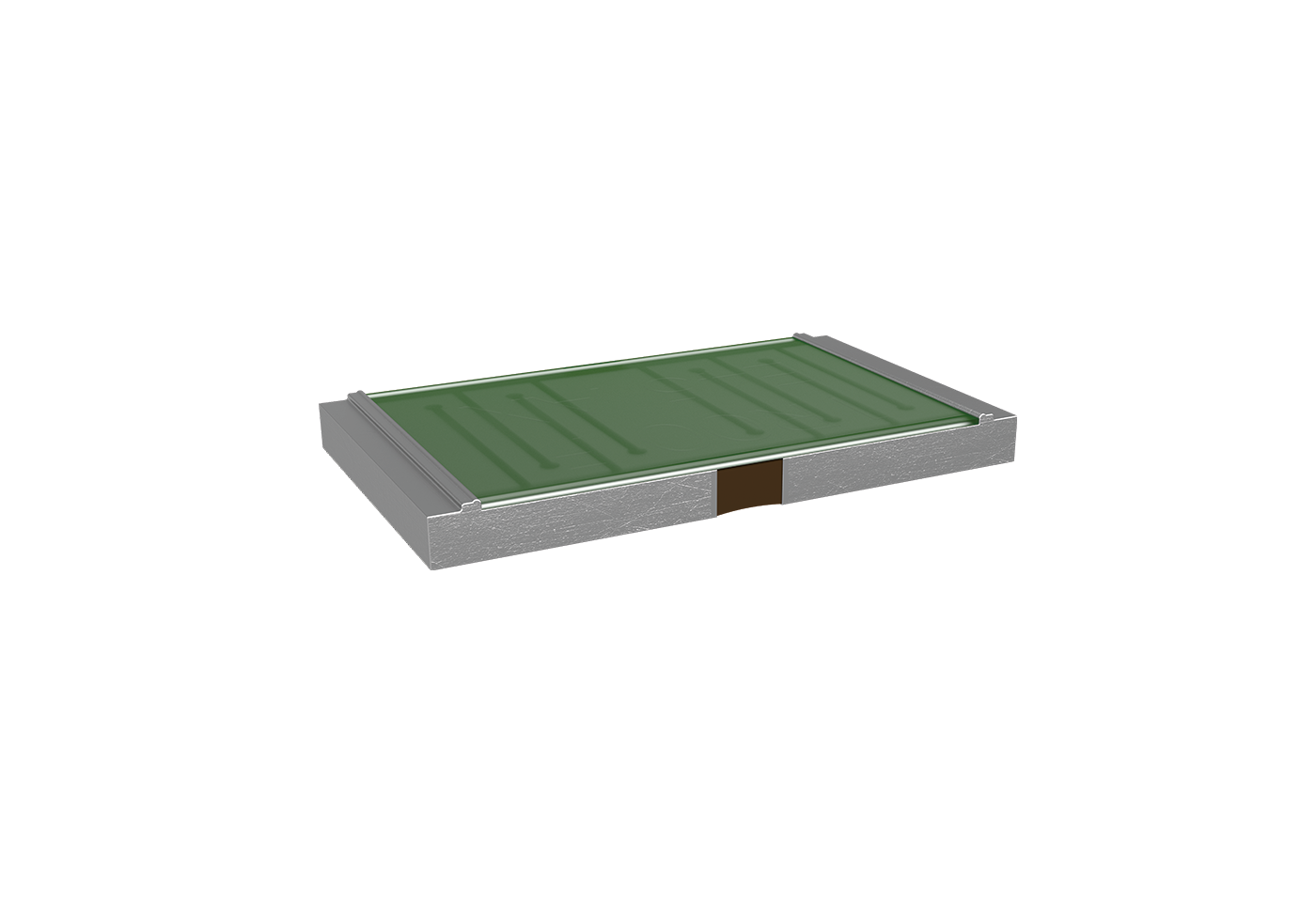

SMK
2-terminal resistor with large solder pads. Very powerful. Largest selection of resistor values up to 0.5 Ohm.
| Product area: | Resistor |
|---|---|
| Size: | 1206 |
| Power (Watt): | 1 - 1.5 |
| Tol (%): | 1.00 - 5.00 |
| Res (Ohm): | 0.008 - 0.5 |
SMK-R000
Zero Ohm Resistor / Jumper. Solid metal plate construction. Ideal for high load applications up to 50 A. Standard solder pad connections.
| Product area: | Resistor |
|---|---|
| Size: | 1206 |
| Power (Watt): | 0.5 |
| Res (Ohm): | 0.0002 |
SMP
2-terminal resistor with large solder pads, very powerful. Largest selection of resistor values up to 1 Ohm.
| Product area: | Resistor |
|---|---|
| Size: | 2010 |
| Power (Watt): | 2 - 3 |
| Tol (%): | 0.500 - 1.00 |
| Res (Ohm): | 0.005 - 1 |
SMP-PW
2-terminal resistor according to ESCC 400102701 / ESCC 400102704.
| Product area: | Resistor |
|---|---|
| Size: | 2010 |
| Power (Watt): | 1 |
| Tol (%): | 0.500 - 1.00 |
| Res (Ohm): | 0.005 - 1 |
SMS
2-terminal resistor with large solder pads. Very powerful. Largest selection of resistance values up to 1 Ohm.
| Product area: | Resistor |
|---|---|
| Size: | 2512 |
| Power (Watt): | 3 - 5 |
| Tol (%): | 0.500 - 5.00 |
| Res (Ohm): | 0.005 - 1 |
SMS-PW
2-terminal resistor according to ESCC 400102702 / ESCC 400102705.
| Product area: | Resistor |
|---|---|
| Size: | 2512 |
| Power (Watt): | 2 |
| Tol (%): | 0.500 - 1.00 |
| Res (Ohm): | 0.003 - 1 |
SMS-R000
Zero Ohm Resistor / Jumper. Solid metal plate construction. Ideal for high load applications up to 100 A. Standard solder pad connections.
| Product area: | Resistor |
|---|---|
| Size: | 2512 |
| Power (Watt): | 2 |
| Res (Ohm): | 0.0002 |
SMT
2-terminal resistor with large solder pads. Very powerful. Largest selection of resistor values up to 4.7 Ohm.
| Product area: | Resistor |
|---|---|
| Size: | 2817 |
| Power (Watt): | 5 - 7 |
| Tol (%): | 0.500 - 5.00 |
| Res (Ohm): | 0.004 - 4.7 |
SMT-PW
2-terminal resistor according to ESCC 400102703 / ESCC 400102706.
| Product area: | Resistor |
|---|---|
| Size: | 2817 |
| Power (Watt): | 3 |
| Tol (%): | 0.500 - 1.00 |
| Res (Ohm): | 0.004 - 2 |
SMT-R000
Zero Ohm Resistor / Jumper. Standard solder pad geometry. Solid metal plate construction. Ideal for high load applications up to 100 A. Standard solder pad connectors.
| Product area: | Resistor |
|---|---|
| Size: | 2817 |
| Power (Watt): | 2 |
| Res (Ohm): | 0.0002 |

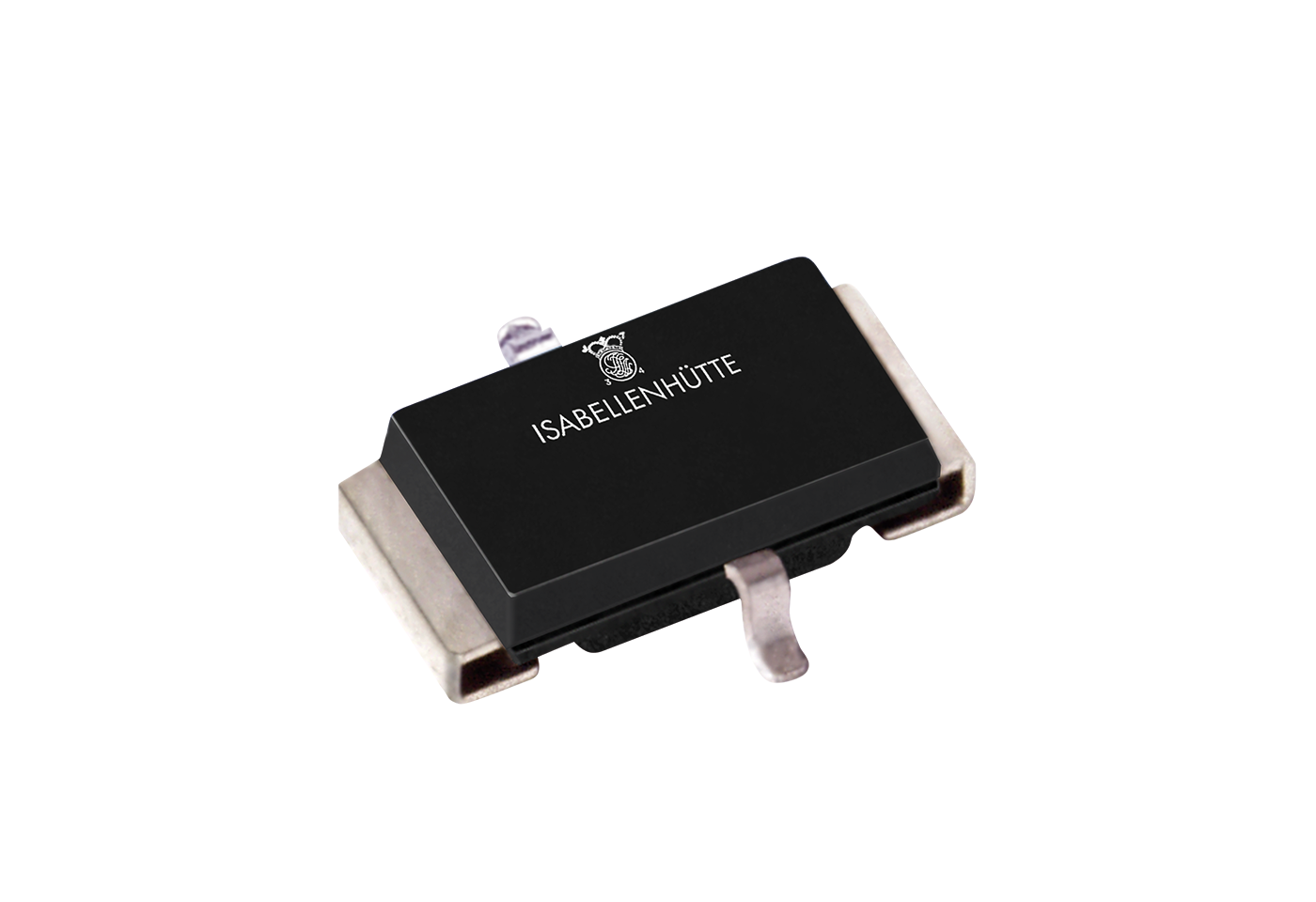

SMV-PW
4-terminal resistor according to ESCC 400102802.
| Product area: | Resistor |
|---|---|
| Size: | 4723 |
| Power (Watt): | 3 |
| Tol (%): | 0.500 - 1.00 |
| Res (Ohm): | 0.0033 - 1 |

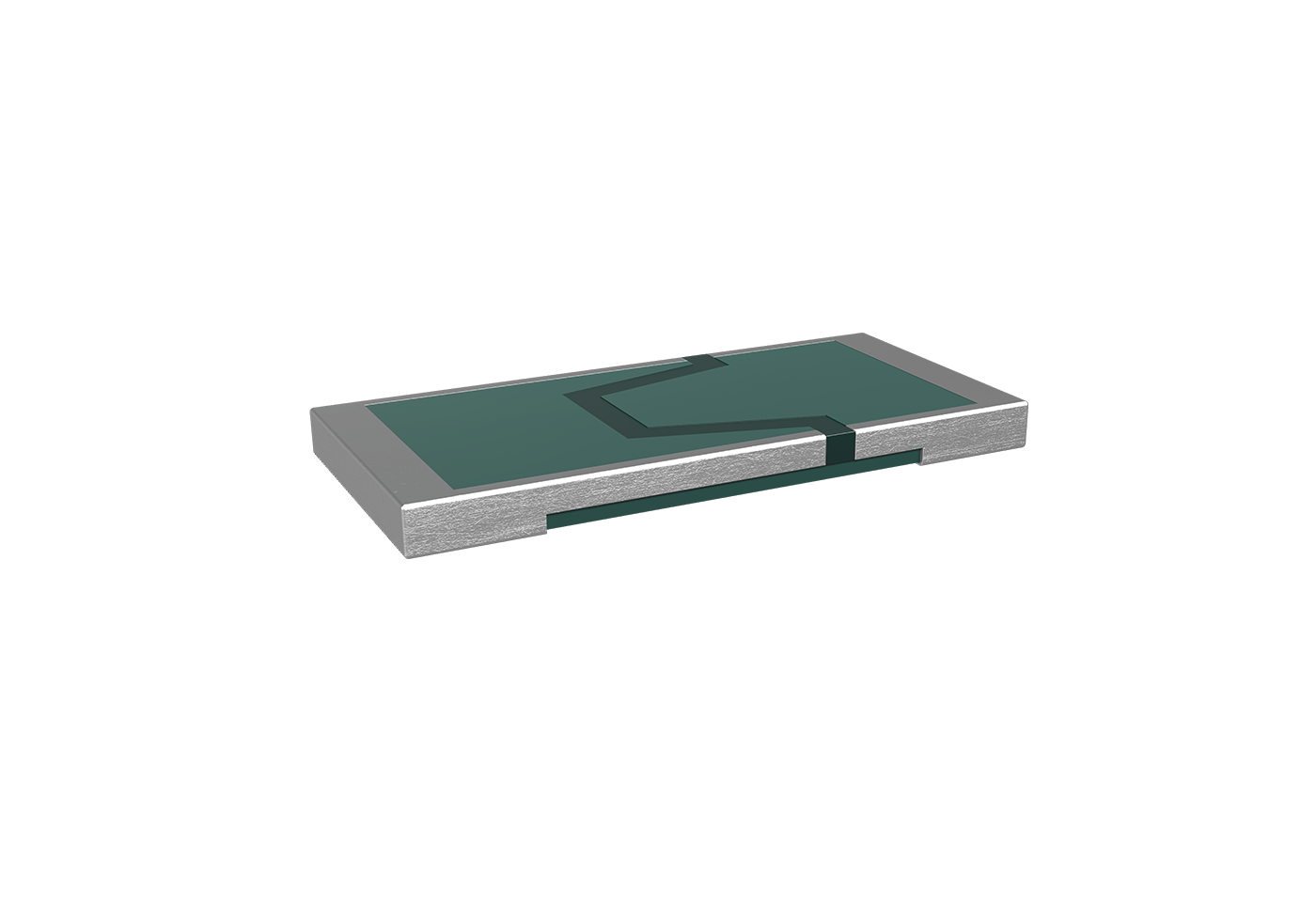

VMI-1.0
2-terminal resistor. Standard solder pad geometry. Low TC. Smallest shunt size with 1% accuracy.
| Product area: | Resistor |
|---|---|
| Size: | 0805 |
| Power (Watt): | 0.45 - 1.1 |
| Tol (%): | 1.00 |
| Res (Ohm): | 0.01 - 0.1 |
VMI-5.0
Not for new designs. Use VMI-1.0 as an alternative. 2-wire resistor. Standard solder pad geometry. Low TC.
| Product area: | Resistor |
|---|---|
| Size: | 0805 |
| Power (Watt): | 0.5 |
| Tol (%): | 5.00 |
| Res (Ohm): | 0.01 - 0.05 |
VMI-R000
Zero Ohm Resistor / Jumper. Solid metal plate design. Ideal for high load applications up to 35 A.
| Product area: | Resistor |
|---|---|
| Size: | 0805 |
| Power (Watt): | 0.25 |
| Res (Ohm): | 0.0002 |
VMK
2-terminal resistor. Standard solder pad geometry. Very low TC <20ppm/K for the entire value range. High continuous load, wide range of resistance values up to 470 mOhm.
| Product area: | Resistor |
|---|---|
| Size: | 1206 |
| Power (Watt): | 1 - 1.5 |
| Tol (%): | 1.00 - 5.00 |
| Res (Ohm): | 0.01 - 0.47 |

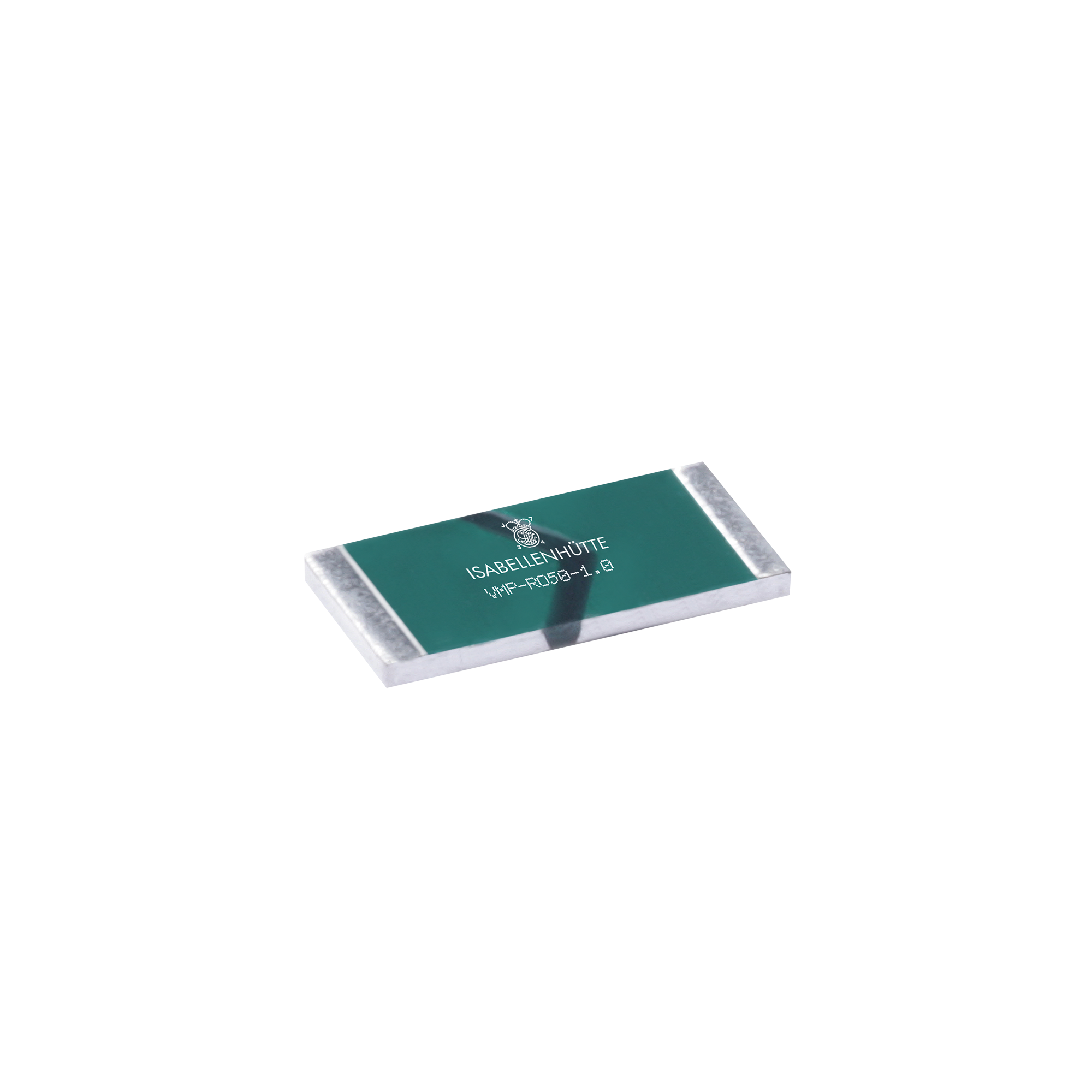

VMK-NA
2-terminal resistor. Standard solder pad geometry. Low TC. Gold-plated (contacting) contact surfaces. Ideal for conductive bonding or soldering applications.
| Product area: | Resistor |
|---|---|
| Size: | 1206 |
| Power (Watt): | 1 - 1.5 |
| Tol (%): | 1.00 |
| Res (Ohm): | 0.1 |
VMP
2-terminal resistor. Standard solder pad geometry. Very low TC <20ppm/K for the entire value range. High continuous load. Wide range of resistance values up to 1 Ohm.
| Product area: | Resistor |
|---|---|
| Size: | 2010 |
| Power (Watt): | 2 - 3 |
| Tol (%): | 1.00 - 5.00 |
| Res (Ohm): | 0.005 - 1 |

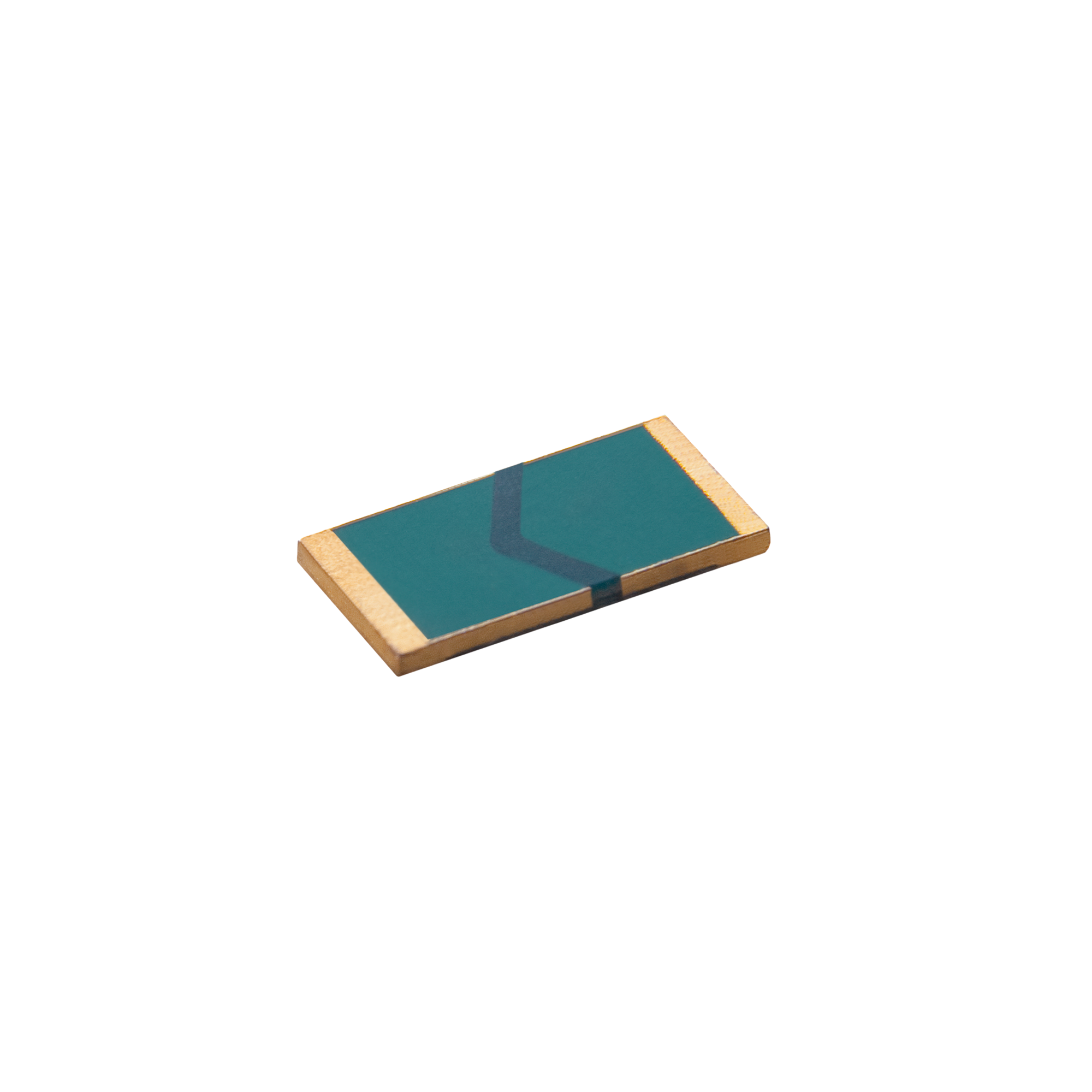

VMP-NA
2-terminal resistor. Standard solder pad geometry. Very low TC <20ppm/K for the entire value range. High continuous load. gold-plated (contacting) contact surfaces. Ideal for conductive bonding or soldering applications.
| Product area: | Resistor |
|---|---|
| Size: | 2010 |
| Power (Watt): | 2 |
| Tol (%): | 1.00 - 5.00 |
| Res (Ohm): | 0.025 - 0.08 |
VMS
2-terminal resistor. Standard solder pad geometry. Very low TC <20ppm/K for the entire value range. High continuous load. Wide range of resistance values up to 1 Ohm.
| Product area: | Resistor |
|---|---|
| Size: | 2512 |
| Power (Watt): | 3 - 4 |
| Tol (%): | 1.00 - 5.00 |
| Res (Ohm): | 0.005 - 1 |

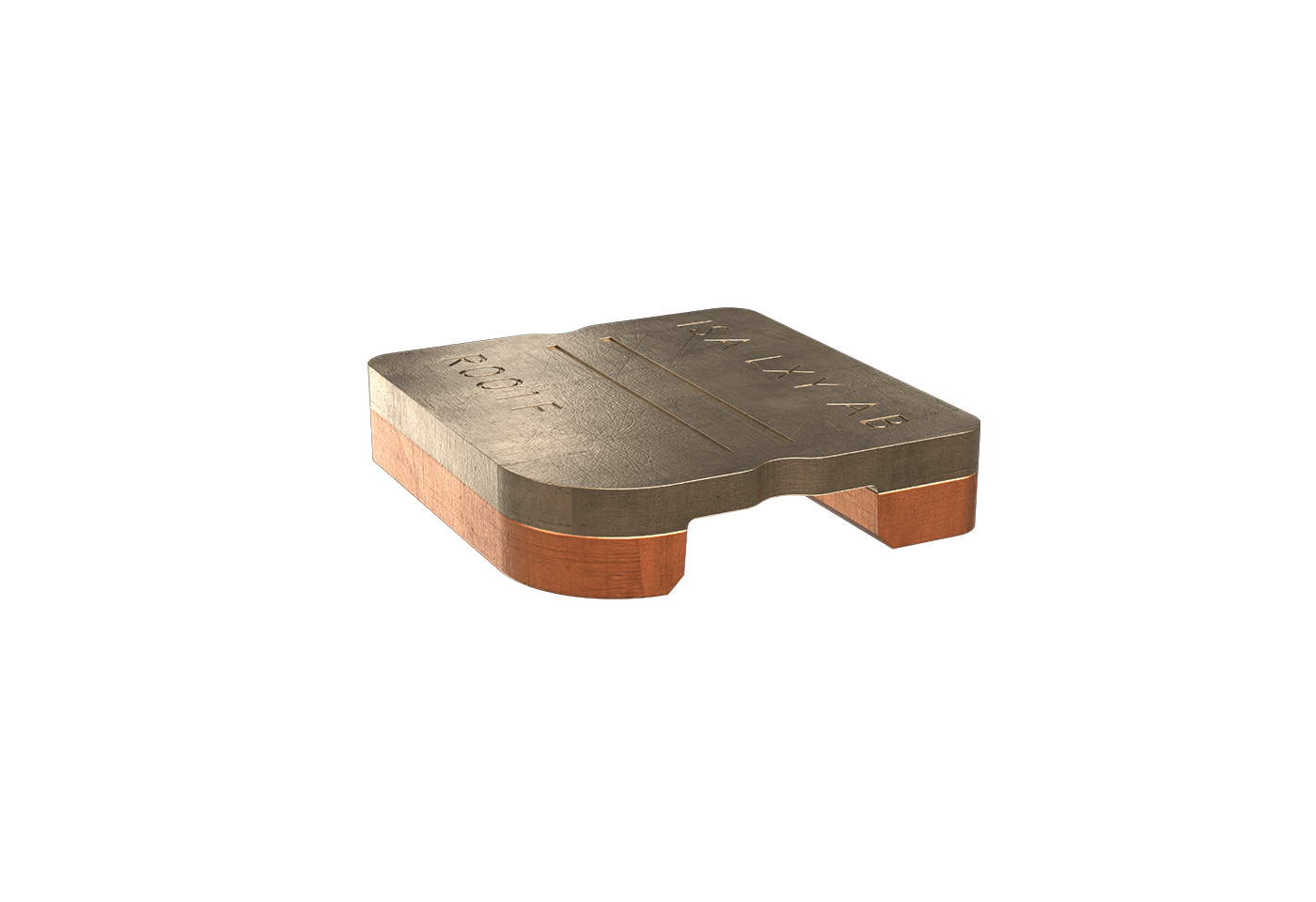

WAF
2-terminal resistor made of roll-clad strip material, high load capacity, very small design, low values <=1mΩ.
| Product area: | Resistor |
|---|---|
| Size: | 1213 |
| Power (Watt): | 6 - 7 |
| Tol (%): | 1.00 - 5.00 |
| Res (Ohm): | 0.0005 - 0.001 |

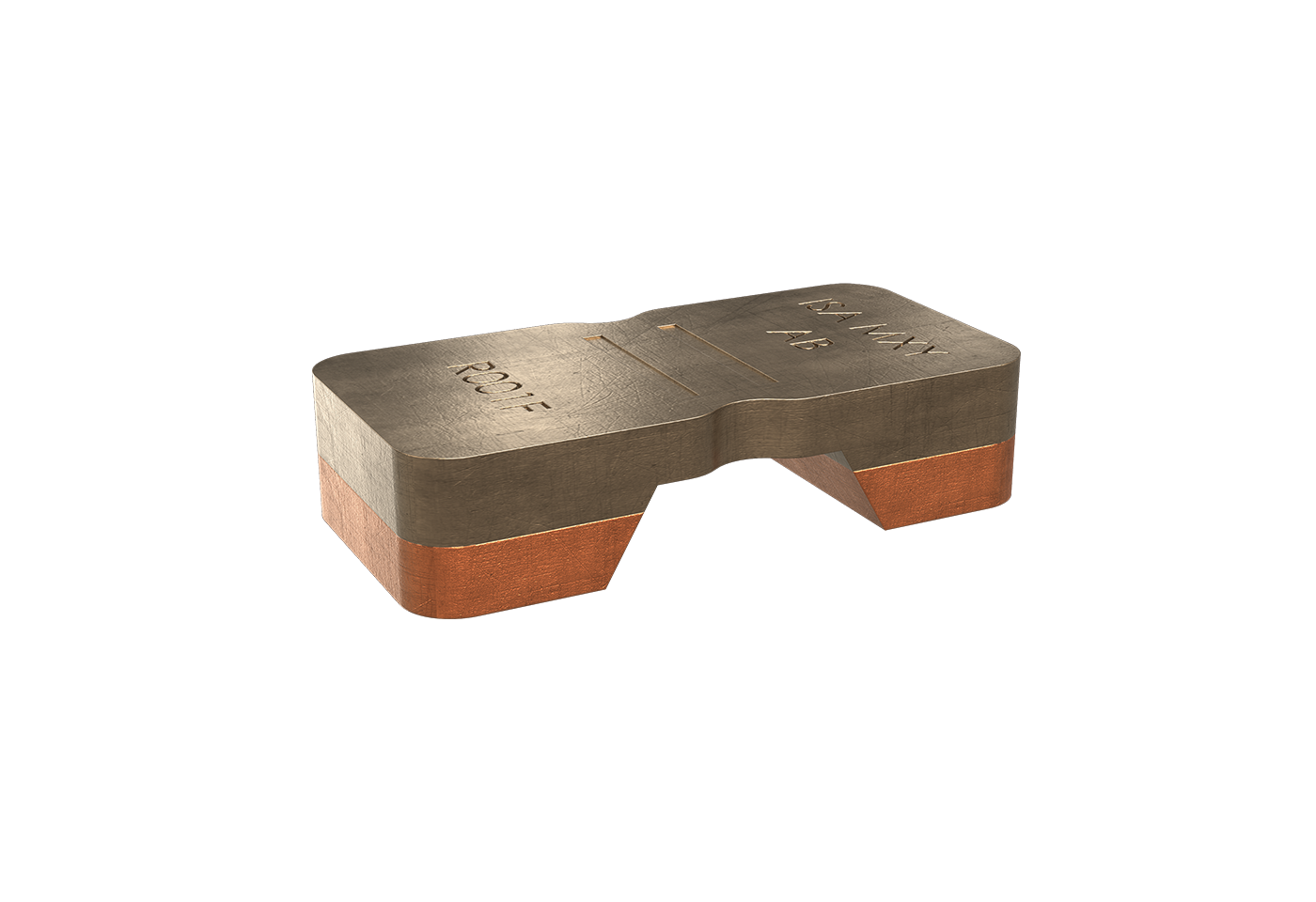

WAK
2-terminal resistor made of roll-clad strip material, high load capacity, very small design, low values <=1mΩ very low inductance.
| Product area: | Resistor |
|---|---|
| Size: | 1206 |
| Power (Watt): | 6 |
| Tol (%): | 1.00 - 5.00 |
| Res (Ohm): | 0.0005 - 0.001 |

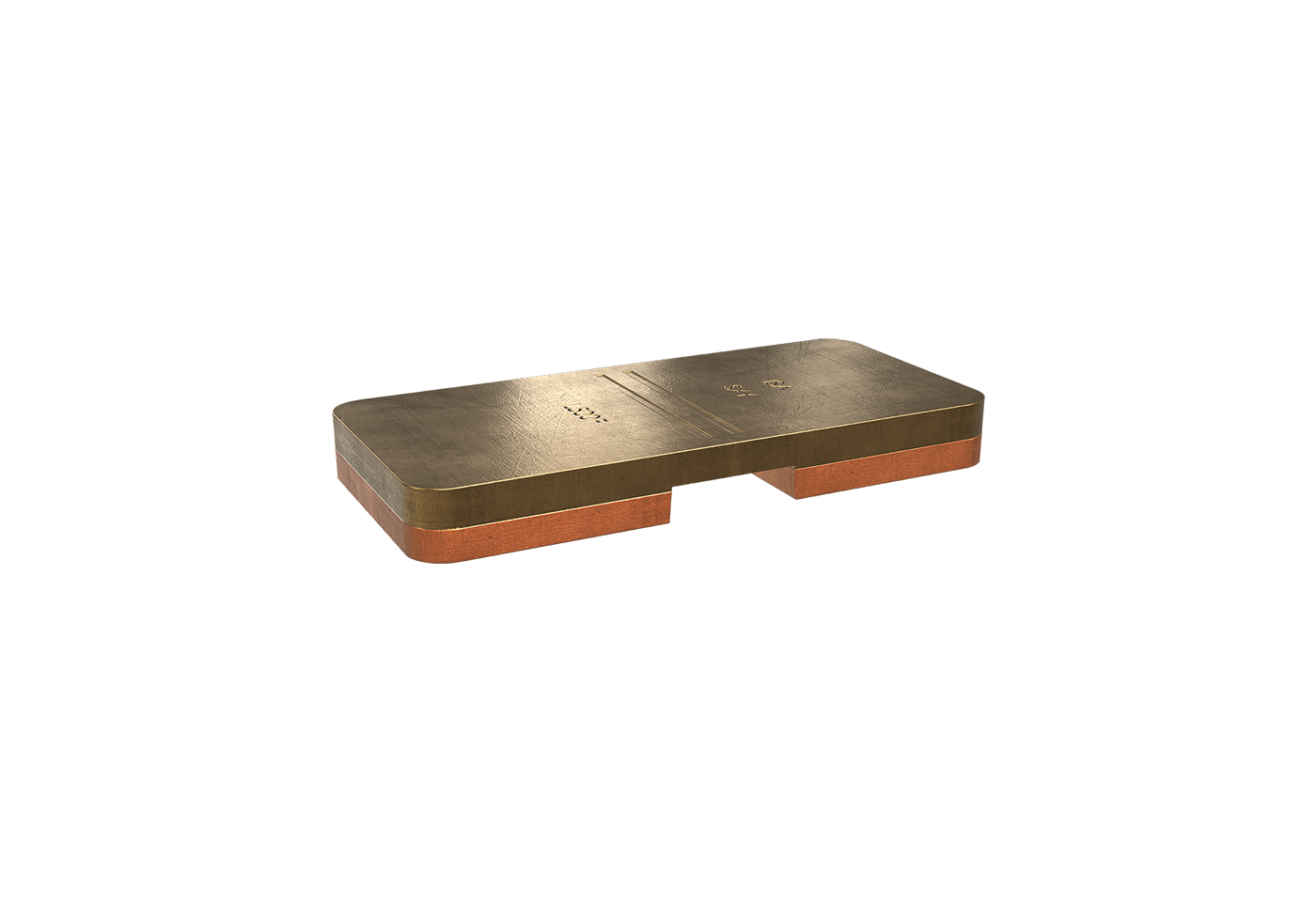

WAT
2-terminal resistor made of roll-clad strip material, high load capacity, low TCR, values from 0.2 to 0.75 mΩ.
| Product area: | Resistor |
|---|---|
| Size: | 2512 |
| Power (Watt): | 5 - 10 |
| Tol (%): | 1.00 - 5.00 |
| Res (Ohm): | 0.0002 - 0.00075 |
