Products
Our products meet the highest requirements in terms of thermoelectric voltage, temperature coefficient of resistance (TCR), inductance and load capacity as well as long-term stability, ensuring maximum precision over the entire lifetime.

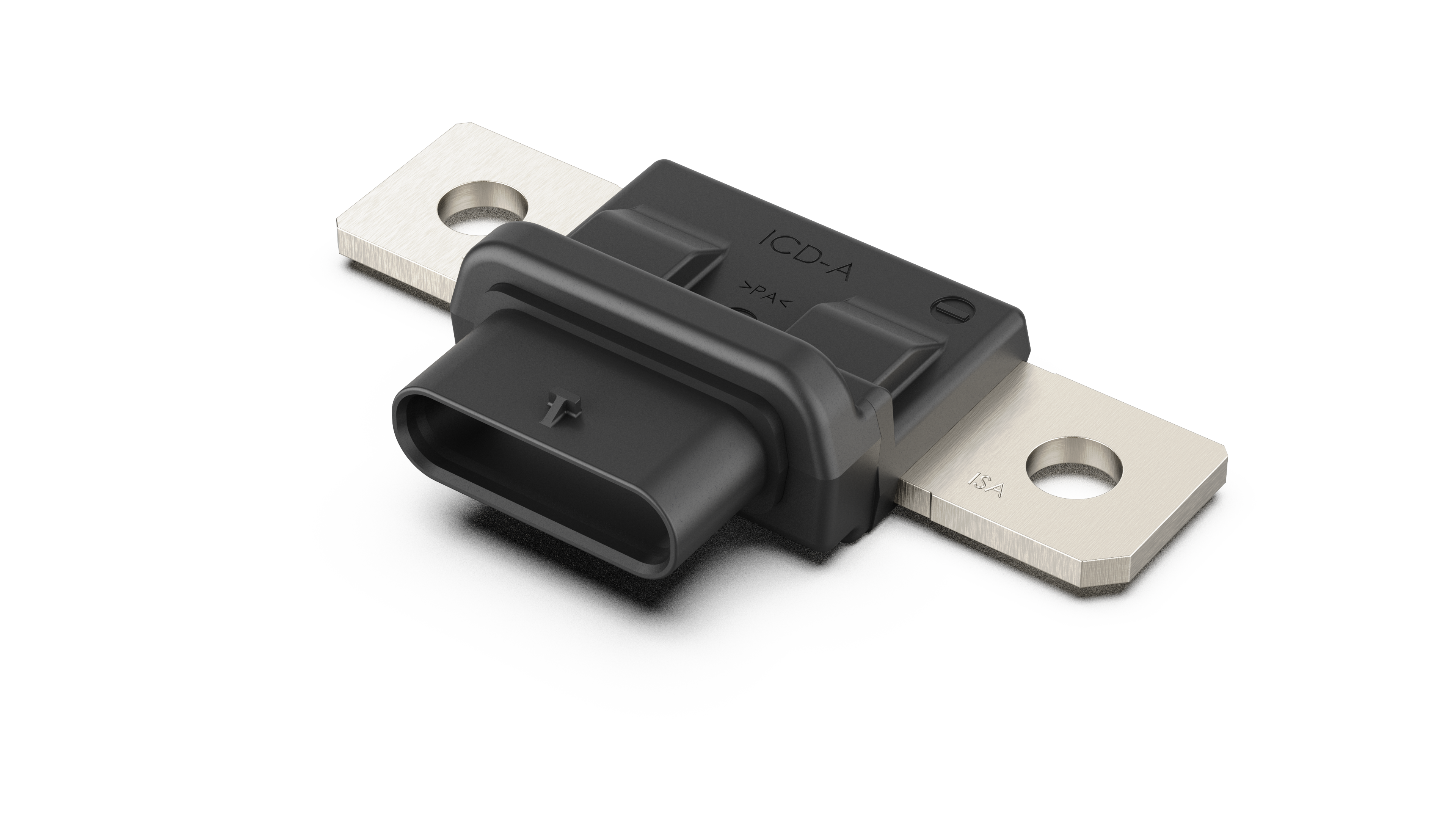

ICD-A
The ICD series is a compact precision current measurement system. It uses shunt-based current measurement for maximum accuracy and has a CAN interface. It also contains a 16-bit ADC for measured value acquisition. The ICD can be used in many 12V DC applications.
| Product area: | Sensor |
|---|---|
| Current Range: | 0 - 500 |
| Current Range Options: | 100, 300, 500 |
| Interface: | CAN (2.0 a/b) communication - with termination, CAN (2.0 a/b) communication - without termination |
| Hardware setup: | 12 V |
| Configuration: | 16-bit analog-digital converter |
| Plating shunt: | nickel plated |

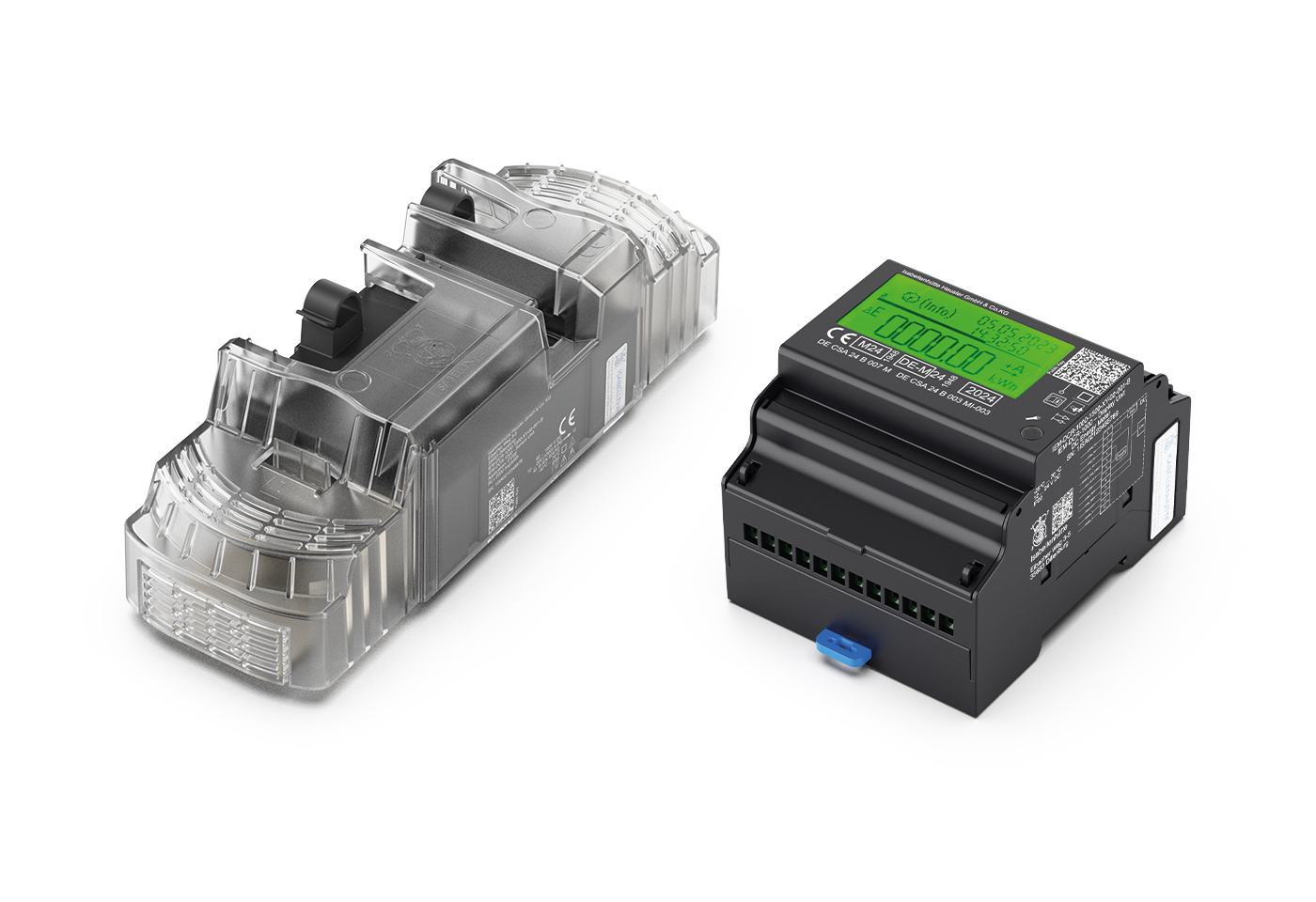

IEM-DCR-1000
The IEM-DCR-1000 complies with the German measurement and calibration law, as well as MID. It comes with a display unit and a sensor unit which allows to serve applications in charging infrastructure and utility domains. The combination of the display unit (DU) and the sensor unit (SU) comprises the IEM-DCR models. The SU-1000 as a standalone is available as the IEM-DCS 1000.
| Product area: | Sensor |
|---|---|
| Current Range: | 0 - 1000 |
| Current Range Options: | 1000 |
| Voltage Range: | 0 - 1500 |
| Voltage Channels: | 4 |
| Interface: | OCMF over RF45 |
| Hardware setup: | 24 V |
| Configuration: | german calibration law, MID, LNE |
| Plating shunt: | nickel plated |

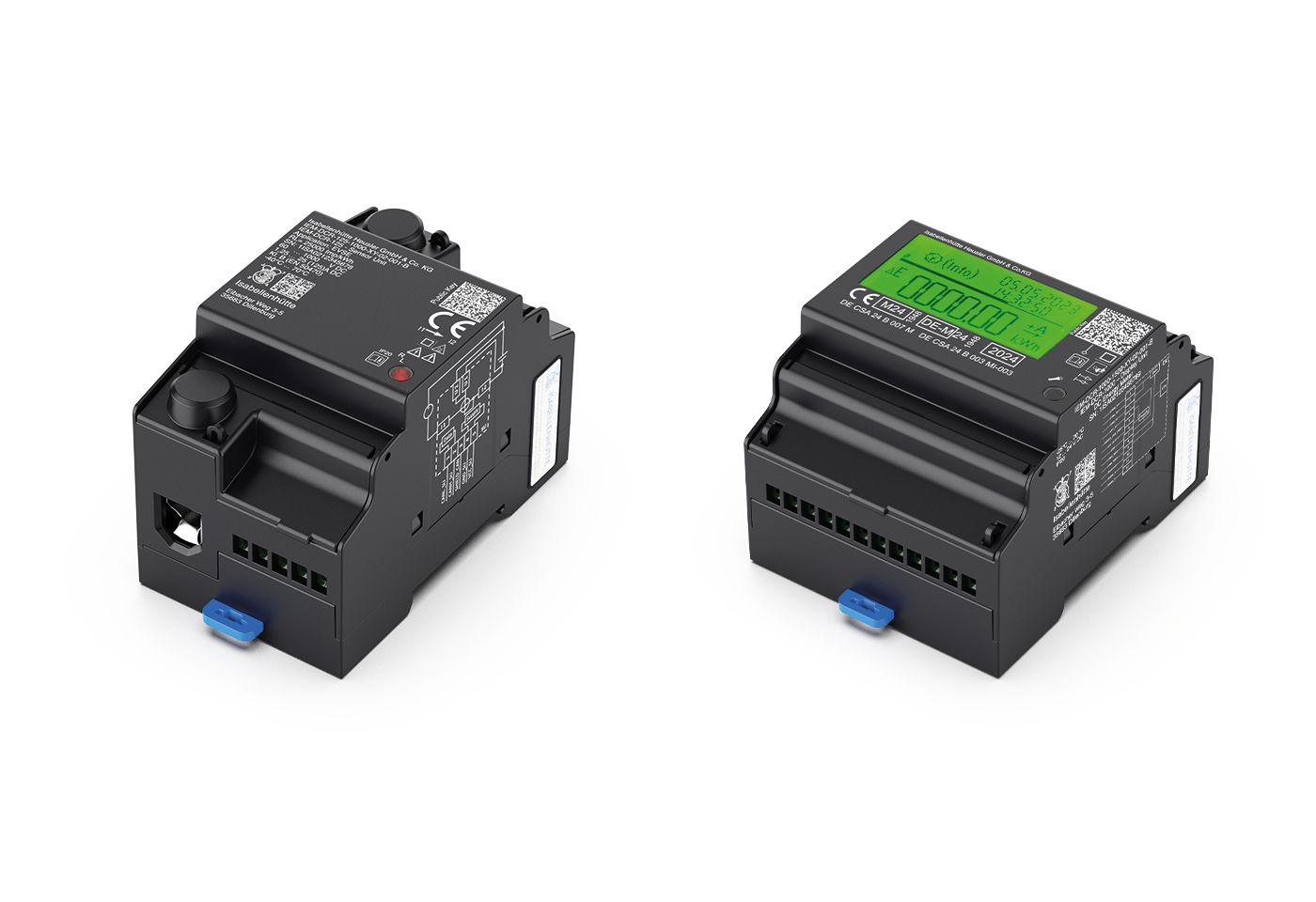

IEM-DCR-125
The IEM-DCR-125 complies with the German measurement and calibration law, as well as MID. It comes with a display unit and a sensor unit which allows to serve applications in charging infrastructure and utility domains. The combination of the display unit (DU) and the sensor unit (SU) comprises the IEM-DCR models. The SU-125 as a standalone is available as the IEM-DCS 125.
| Product area: | Sensor |
|---|---|
| Current Range: | 0 - 125 |
| Current Range Options: | 125 |
| Voltage Range: | 0 - 1000 |
| Voltage Channels: | 2 |
| Interface: | OCMF over RF45 |
| Hardware setup: | 24 V |
| Configuration: | german calibration law, MID, LNE |

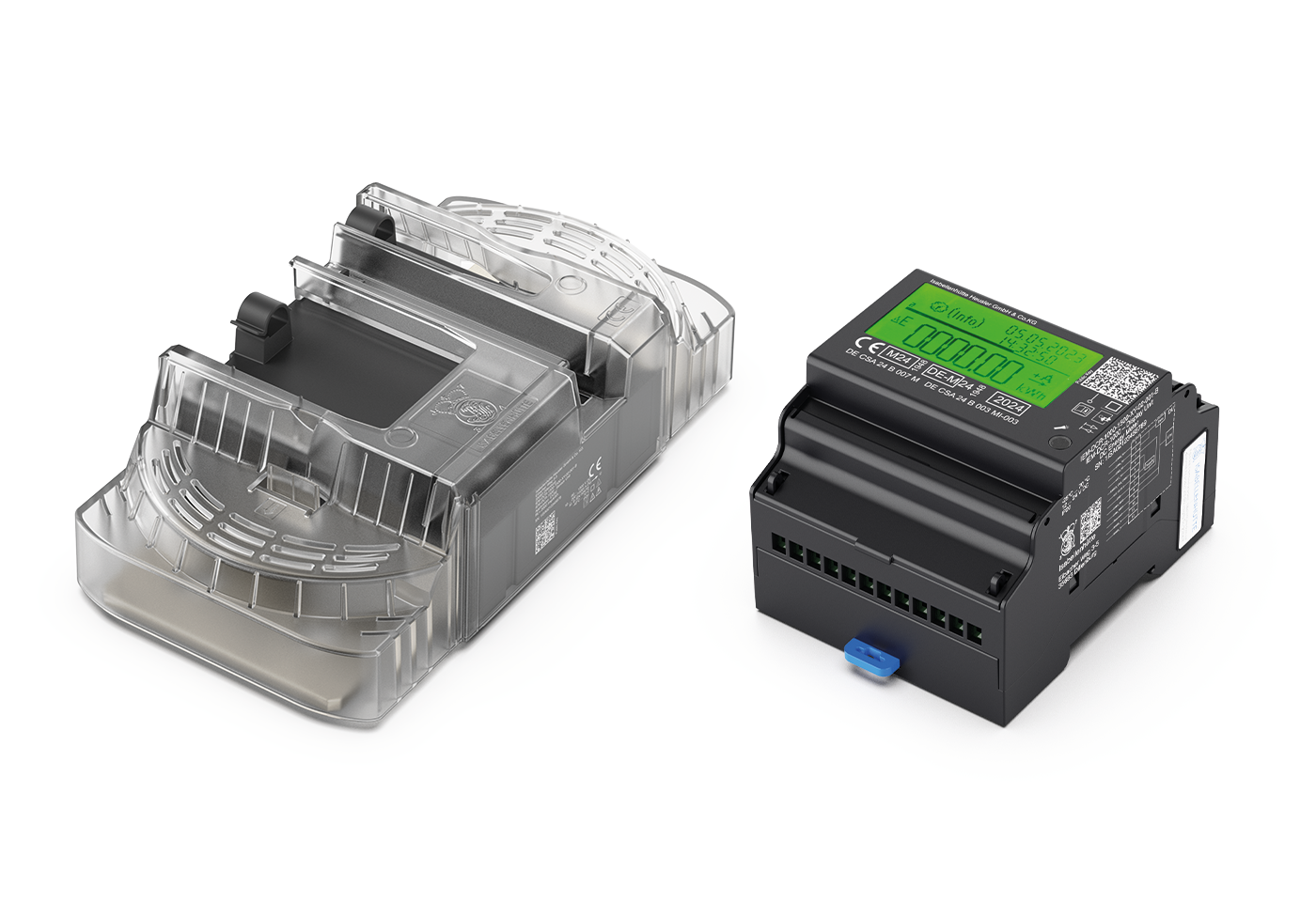

IEM-DCR-1500
The IEM-DCR-1500 complies with the German measurement and calibration law, as well as MID. It comes with a display unit and a sensor unit which allows to serve applications in charging infrastructure and utility domains. The combination of the display unit (DU) and the sensor unit (SU) comprises the IEM-DCR models. The SU-1500 as a standalone is available as the IEM-DCS 1500.
| Product area: | Sensor |
|---|---|
| Current Range: | 0 - 1500 |
| Current Range Options: | 1500 |
| Voltage Range: | 0 - 1500 |
| Voltage Channels: | 4 |
| Interface: | OCMF over RF45 |
| Hardware setup: | 24 V |
| Configuration: | german calibration law, MID, LNE |
| Plating shunt: | nickel plated |

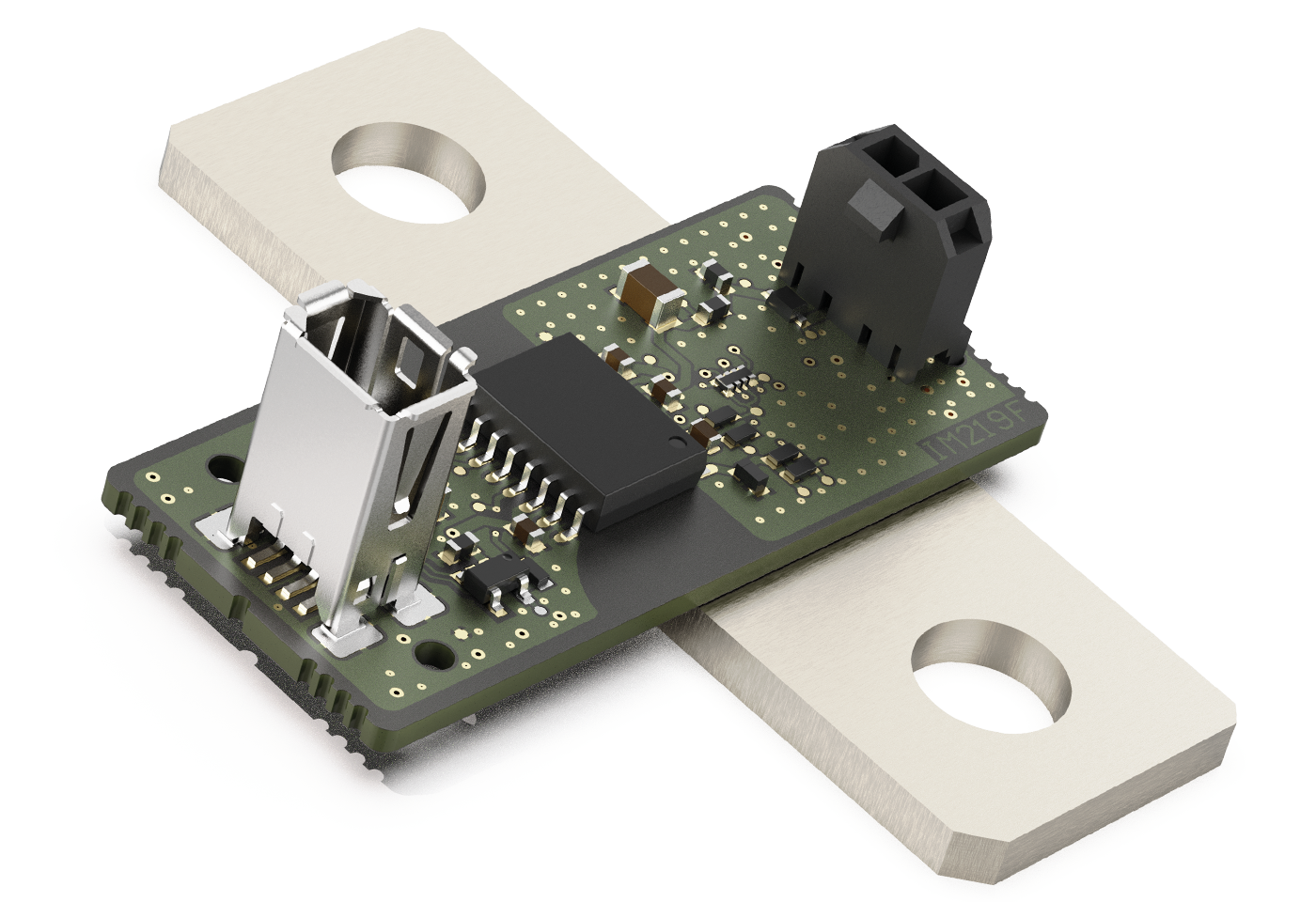

IPC-CII
The IPC series is a precision current sensor with a high bandwidth for use in phase current measurement applications. It provides a fully calibrated current measurement signal, which is available in three measuring ranges: 220 A, 380 A and 600 A. In addition, it offers an extended measuring range of up to 1,780 A and supports AC and DC applications.
| Product area: | Sensor |
|---|---|
| Current Range: | 0 - 600 |
| Current Range Options: | 220, 380, 540, 600 |
| Interface: | Low-Voltage-Differential-Signaling (LVDS) |
| Hardware setup: | 3.3 V |
| Configuration: | Isolated (1500 V) |
| Plating shunt: | nickel plated |

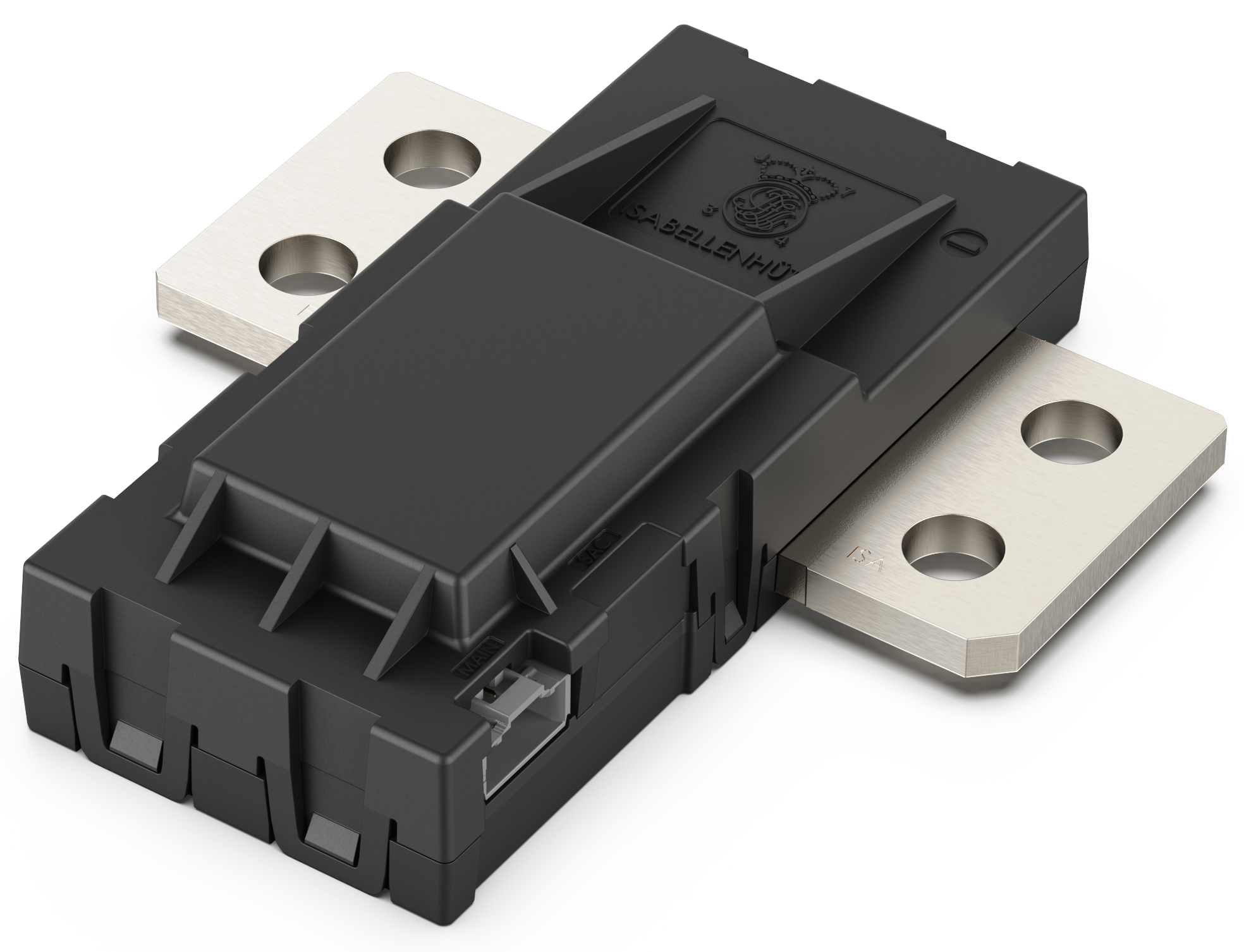

IVT-3-Base
The IVT 3 is a compact high precision current measurement device, which is built on a platform concept where functional components can be added to adapt to many different use cases. The IVT 3 series is developed according to ISO 26262:2018 (Road vehicles – Functional safety).
| Product area: | Sensor |
|---|---|
| Current Range: | 0 - 1000 |
| Current Range Options: | 1000 |
| Interface: | CAN (2.0 a/b) communication - with termination, CAN (2.0 a/b) communication - without termination |
| Hardware setup: | 12 V |
| Configuration: | Isolated (1,000 V) |
| Plating shunt: | nickel plated |

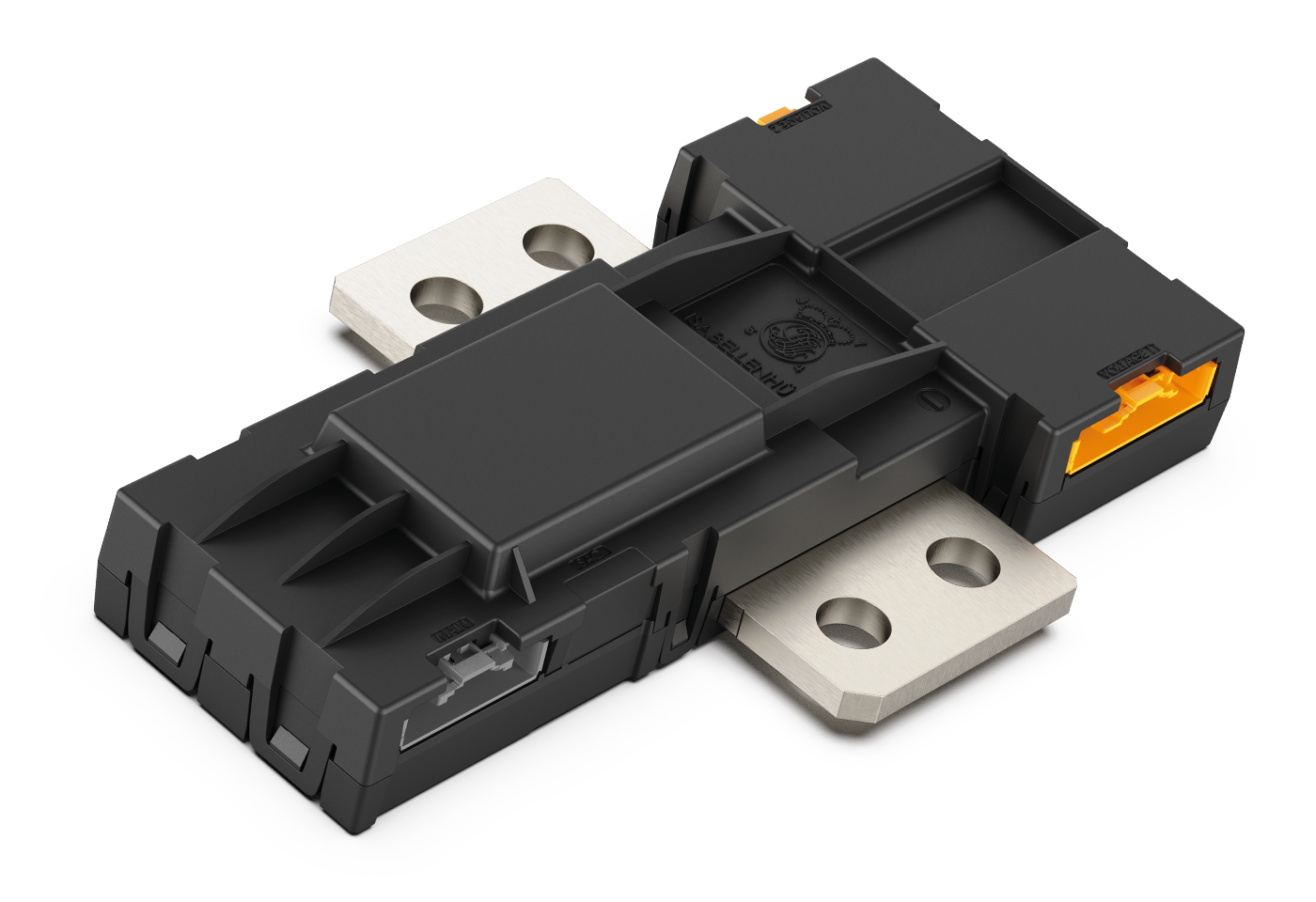

IVT-3-Pro
The IVT 3 is a compact high precision current measurement device, which is built on a platform concept where functional components can be added to adapt to many different use cases. The Pro version supports insulation resistance monitoring and 3 or 6 voltage measurement channels. The IVT 3 series is developed according to ISO 26262:2018 (Road vehicles – Functional safety).
| Product area: | Sensor |
|---|---|
| Current Range: | 0 - 1000 |
| Current Range Options: | 1000 |
| Voltage Range: | 0 - 1000 |
| Voltage Channels: | 6, 3 |
| Interface: | CAN (2.0 a/b) communication - with termination, CAN (2.0 a/b) communication - without termination |
| Hardware setup: | 12 V, 24 V |
| Configuration: | Isolated (1,000 V), isolated + insulation monitoring, isolated + insulation monitoring + As-/Wh-counter |
| Plating shunt: | nickel plated |
IVT-S
The IVT-S is a compact, high-precision current measurement system equipped with a CAN interface. The continuous current measurement covers a measuring range of up to ±2,500 A and can be extended by up to 3 voltage measurement channels (nom. 1000 V). The IVT-S has been the benchmark for precise current and voltage measurement since 2017.
| Product area: | Sensor |
|---|---|
| Current Range: | 0 - 2500 |
| Current Range Options: | 100, 300, 500, 1000, 2500 |
| Voltage Range: | 0 - 1000 |
| Voltage Channels: | 3 |
| Interface: | CAN (2.0 a/b) communication - with termination, CAN (2.0 a/b) communication - without termination |
| Hardware setup: | 12 V, 24 V |
| Configuration: | Isolated (1,000 V) |
| Plating shunt: | nickel plated, tin plated |
