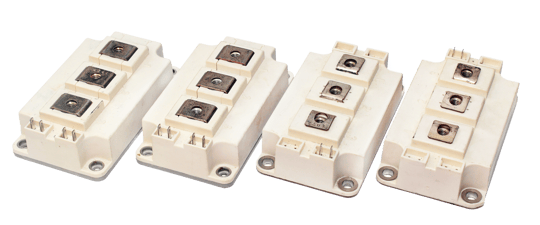

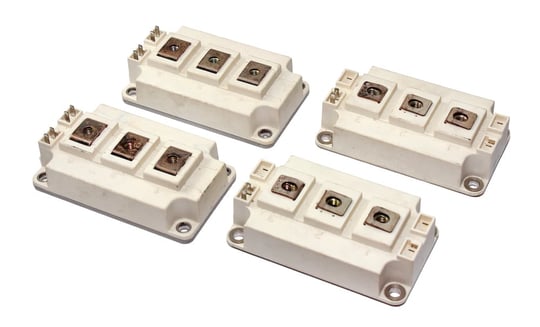

Current measurement for IGBTs (insulated-gate bipolar transistors)

Compact
sizes

Standard SMD sizes available from 0805 to 5930.

Efficiency & performance

High thermal load capacity even with the smallest sizes.

High
precision

Precise current measurement for optimized efficiency and longevity of your IGBT systems.

Our advanced solutions for current measurement in IGBT applications offer high accuracy and reliability. They make it possible to precisely monitor and adjust the current flow in real time to maximize system efficiency and safety. By accurately controlling the current, you can ensure that your IGBT-based systems always operate optimally and meet the highest performance and reliability requirements. With our current measurement solutions, you can improve the efficiency and extend the service life of your IGBT applications.

Our products for your IGBT-systems

If you cannot find a suitable product for your requirements here, please contact us.

BVB

4-terminal resistor made of composite material. Ideal for use on DCB and FR4 Space-saving design.

Product area:	Resistor
Size:	2725
Power (Watt):	3 - 12
Tol (%):	1.00
Res (Ohm):	0.0002 - 0.005

Show properties

BVE

2-terminal resistor made of composite material. Very low resistance values. Large connectors for high currents.

Product area:	Resistor
Size:	5930
Power (Watt):	4 - 15
Tol (%):	1.00 - 5.00
Res (Ohm):	0.0001 - 0.003

Show properties

BVN

4-terminal resistor made of composite material. Ideal for use on DCB and FR4. Space-saving design.

Product area:	Resistor
Size:	1216
Power (Watt):	3 - 10
Tol (%):	1.00 - 5.00
Res (Ohm):	0.0003 - 0.003

Show properties

BVR

4-terminal resistor made of composite material. Ideal for use on DCB and FR4. Very low resistance values.

Product area:	Resistor
Size:	4026
Power (Watt):	5 - 12
Tol (%):	1.00 - 5.00
Res (Ohm):	0.0002 - 0.003

Show properties

BVS

2-terminal resistor made of composite material. Very low resistance values. Large connectors for high currents.

Product area:	Resistor
Size:	3920
Power (Watt):	2.5 - 12
Tol (%):	1.00 - 5.00
Res (Ohm):	0.0001 - 0.005

Show properties

BVT

2-terminal resistor made of composite material. Very low resistance values. Large connectors for high currents.

Product area:	Resistor
Size:	2512
Power (Watt):	1.5 - 10
Tol (%):	1.00 - 5.00
Res (Ohm):	0.0002 - 0.0068

Show properties

BVZ

2-terminal resistor made of composite material. Ideal for use on DCB. Space-saving design.

Product area:	Resistor
Size:	4026
Power (Watt):	5 - 13
Tol (%):	1.00 - 5.00
Res (Ohm):	0.000525 - 0.003

Show properties

PMH-C

Bondable high-power resistor with gold-plated contact surface. 4-terminal version. High continuous power.

Product area:	Resistor
Size:	2512
Power (Watt):	5
Tol (%):	0.500 - 5.00
Res (Ohm):	0.005 - 0.050

Show properties

WAF

2-terminal resistor made of roll-clad strip material, high load capacity, very small design, low values <=1mΩ.

Product area:	Resistor
Size:	1213
Power (Watt):	6 - 7
Tol (%):	1.00 - 5.00
Res (Ohm):	0.0005 - 0.001

Show properties

WAK

2-terminal resistor made of roll-clad strip material, high load capacity, very small design, low values <=1mΩ very low inductance.

Product area:	Resistor
Size:	1206
Power (Watt):	6
Tol (%):	1.00 - 5.00
Res (Ohm):	0.0005 - 0.001

Show properties
