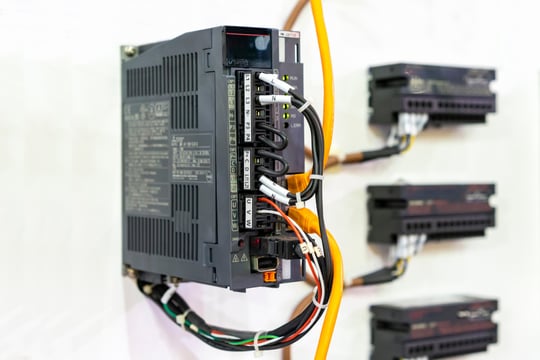

Current measurement for optimum control in servo drives

The main reason for using servo drives is their ability to control position, speed and torque with high precision. This enables exact control of motion sequences and ensures high product quality and efficiency in production.

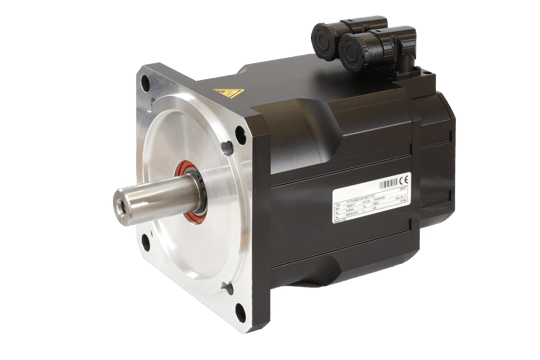

By precisely monitoring the current flowing through the servomotor, important parameters such as load, power consumption and efficiency can be continuously monitored and optimized. Through precise current measurement, our products help to detect potential problems such as overloads or inefficient operating states at an early stage and take appropriate measures.

Compact
sizes

Standard SMD sizes available from 0805 to 5930.

Efficiency & performance

High thermal load capacity even with the smallest sizes.

High
precision

Precise current measurement for optimized efficiency and longevity.

Our products for your servo drives

If you cannot find a suitable product for your requirements here, please contact us.

BVB

4-terminal resistor made of composite material. Ideal for use on DCB and FR4 Space-saving design.

Product area:	Resistor
Size:	2725
Power (Watt):	3 - 12
Tol (%):	1.00
Res (Ohm):	0.0002 - 0.005

Show properties

BVE

2-terminal resistor made of composite material. Very low resistance values. Large connectors for high currents.

Product area:	Resistor
Size:	5930
Power (Watt):	4 - 15
Tol (%):	1.00 - 5.00
Res (Ohm):	0.0001 - 0.003

Show properties

BVN

4-terminal resistor made of composite material. Ideal for use on DCB and FR4. Space-saving design.

Product area:	Resistor
Size:	1216
Power (Watt):	3 - 10
Tol (%):	1.00 - 5.00
Res (Ohm):	0.0003 - 0.003

Show properties

BVR

4-terminal resistor made of composite material. Ideal for use on DCB and FR4. Very low resistance values.

Product area:	Resistor
Size:	4026
Power (Watt):	5 - 12
Tol (%):	1.00 - 5.00
Res (Ohm):	0.0002 - 0.003

Show properties

BVS

2-terminal resistor made of composite material. Very low resistance values. Large connectors for high currents.

Product area:	Resistor
Size:	3920
Power (Watt):	2.5 - 12
Tol (%):	1.00 - 5.00
Res (Ohm):	0.0001 - 0.005

Show properties

BVT

2-terminal resistor made of composite material. Very low resistance values. Large connectors for high currents.

Product area:	Resistor
Size:	2512
Power (Watt):	1.5 - 10
Tol (%):	1.00 - 5.00
Res (Ohm):	0.0002 - 0.0068

Show properties

BVZ

2-terminal resistor made of composite material. Ideal for use on DCB. Space-saving design.

Product area:	Resistor
Size:	4026
Power (Watt):	5 - 13
Tol (%):	1.00 - 5.00
Res (Ohm):	0.000525 - 0.003

Show properties

CMK

2-terminal resistor for medium power requirements. Low TC <50ppm/K for the entire value range.

Product area:	Resistor
Size:	1206
Power (Watt):	0.5 - 4
Tol (%):	1.00 - 5.00
Res (Ohm):	0.005 - 0.1

Show properties

CMP

2-terminal resistor for medium power requirements. Low TC <50ppm/K for the entire value range.

Product area:	Resistor
Size:	2010
Power (Watt):	1 - 2
Tol (%):	1.00 - 5.00
Res (Ohm):	0.01 - 0.5

Show properties

CMS

2-terminal resistor for medium power requirements. Low TC <50ppm/K for the entire value range.

Product area:	Resistor
Size:	2512
Power (Watt):	2 - 2.5
Tol (%):	1.00 - 5.00
Res (Ohm):	0.01 - 0.5

Show properties

FMK

2-terminal resistor. Low resistance values <=6 milliohms. Good TC. Solid construction as metal plate. High pulse load.

Product area:	Resistor
Size:	1206
Power (Watt):	1 - 3.5
Tol (%):	1.00 - 10.0
Res (Ohm):	0.002 - 0.006

Show properties

FMP

2-terminal resistor. Low resistance values <=6 milliohms. Good TC. Solid construction as metal plate. High pulse load.

Product area:	Resistor
Size:	2010
Power (Watt):	1 - 3.5
Tol (%):	1.00 - 5.00
Res (Ohm):	0.002 - 0.006

Show properties

PMH-C

Bondable high-power resistor with gold-plated contact surface. 4-terminal version. High continuous power.

Product area:	Resistor
Size:	2512
Power (Watt):	5
Tol (%):	0.500 - 5.00
Res (Ohm):	0.005 - 0.050

Show properties

PMT

Pulse load resistor for snubber circuits or pre-charging and discharging applications.

Product area:	Resistor
Size:	2817
Tol (%):	10.0
Res (Ohm):	0.050 - 2.5

Show properties

SMK

2-terminal resistor with large solder pads. Very powerful. Largest selection of resistor values up to 0.5 Ohm.

Product area:	Resistor
Size:	1206
Power (Watt):	1 - 1.5
Tol (%):	1.00 - 5.00
Res (Ohm):	0.008 - 0.5

Show properties

SMP

2-terminal resistor with large solder pads, very powerful. Largest selection of resistor values up to 1 Ohm.

Product area:	Resistor
Size:	2010
Power (Watt):	2 - 3
Tol (%):	0.500 - 1.00
Res (Ohm):	0.005 - 1

Show properties

SMS

2-terminal resistor with large solder pads. Very powerful. Largest selection of resistance values up to 1 Ohm.

Product area:	Resistor
Size:	2512
Power (Watt):	3 - 5
Tol (%):	0.500 - 5.00
Res (Ohm):	0.005 - 1

Show properties

SMT

2-terminal resistor with large solder pads. Very powerful. Largest selection of resistor values up to 4.7 Ohm.

Product area:	Resistor
Size:	2817
Power (Watt):	5 - 7
Tol (%):	0.500 - 5.00
Res (Ohm):	0.004 - 4.7

Show properties

VMK

2-terminal resistor. Standard solder pad geometry. Very low TC <20ppm/K for the entire value range. High continuous load, wide range of resistance values up to 470 mOhm.

Product area:	Resistor
Size:	1206
Power (Watt):	1 - 1.5
Tol (%):	1.00 - 5.00
Res (Ohm):	0.01 - 0.47

Show properties

VMP

2-terminal resistor. Standard solder pad geometry. Very low TC <20ppm/K for the entire value range. High continuous load. Wide range of resistance values up to 1 Ohm.

Product area:	Resistor
Size:	2010
Power (Watt):	2 - 3
Tol (%):	1.00 - 5.00
Res (Ohm):	0.005 - 1

Show properties

VMS

2-terminal resistor. Standard solder pad geometry. Very low TC <20ppm/K for the entire value range. High continuous load. Wide range of resistance values up to 1 Ohm.

Product area:	Resistor
Size:	2512
Power (Watt):	3 - 4
Tol (%):	1.00 - 5.00
Res (Ohm):	0.005 - 1

Show properties
