WAT (2512)

Our new WAx series of roll cladded current sensing resistors is extended by new component family WAT in size 2512. Find out more about the use of the new component here.

WAT_Right_Main

WAT – Power resistor for high current applications

The WAT from Isabellenhütte is the ideal solution for engineers who have the highest demands on precision and current carrying capacity. Specially developed for applications in automotive technology, power electronics and e-mobility - e.g. EPS, cooling fans, frequency converters, e-bikes and drones.

Highlights:
  • Constant current up to 100 A (0.5 mΩ)
  • TC: 0 ± 50 ppm/K - for maximum temperature stability
  • 5 W rated power at 135 °C (0.5 mΩ)
  • Excellent cycle stability at changing temperatures
  • Excellent cycle stability at changing temperatures

Developed with proven Isabellenhütten alloys for maximum precision, long-term stability and robustness.

Drohne_shutterstock_502929169
EScooter_shutterstock_2022194231
Laden_EV Ladestation_shutterstock_2021600951
Wärmepumpe, Wechselrichter und Solarpaneel als Konzept eines grünen Energiesystems
Laden_Electric_Scooter

Excellent Temperature Coefficient

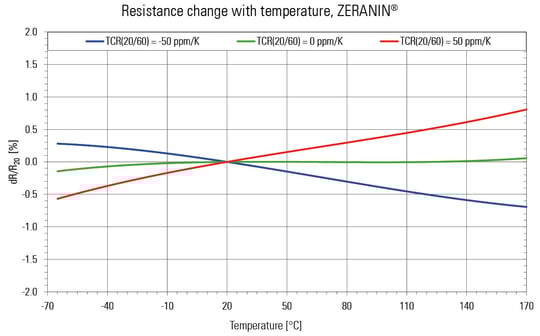

TCR-curve of low resistance WAT-Z-L200 (200 μΩ) shows an excellent TCR of 0 ± 50 ppm/K.
Excellente temperature coefficient_en

Optimized heat dissipation

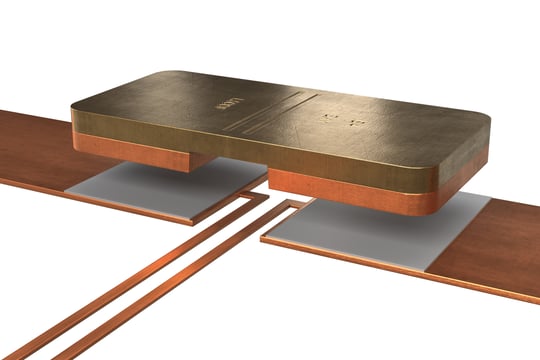

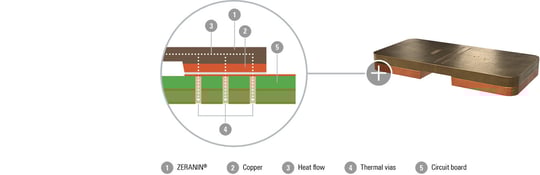

Large terminals: 3.05 x 2.75 mm; enough space for some thermal vias to optimize the heat dissipation. Wide copper areas, short distances, and thermal vias reduce hot spots and keep drift low.

Optimized_heat_dissipation_en

The WAx series

Precision and stability for the highest demands

Our series of sensing resistors made from roll cladded strip material is based on the proven alloys from Isabellenhütte. You will benefit from outstanding material properties such as an extremely low temperature coefficient, minimal long-term drift and excellent precision - ideal for demanding applications in electronics development.
WAT_Left

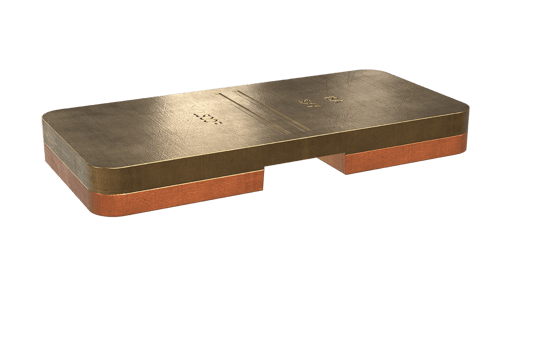

WAT (2512)

R-Values: 0.2 to 0.75 mΩ Power: up to 10 W

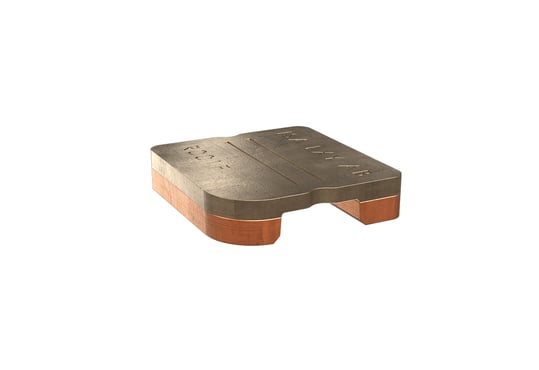

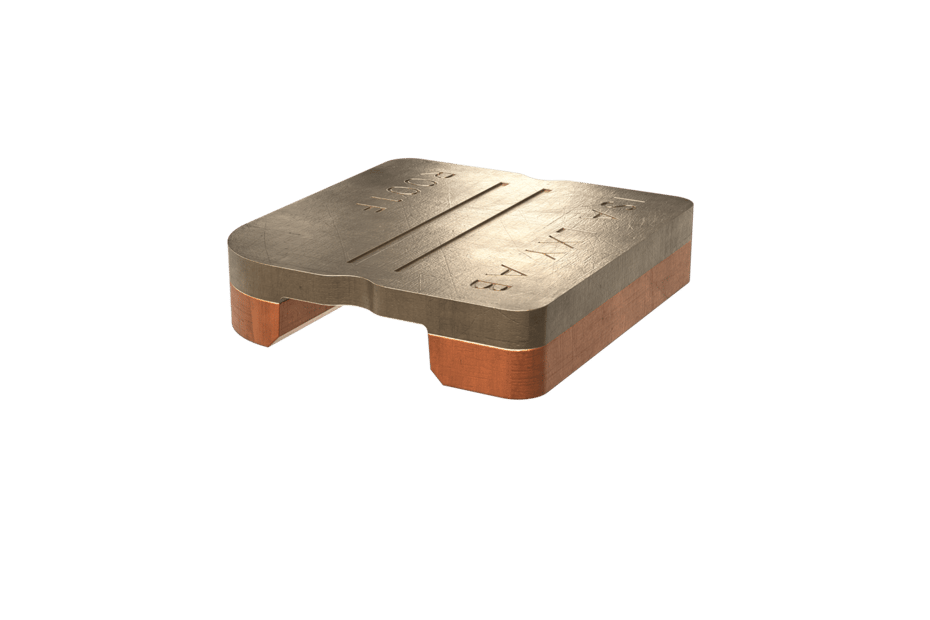

WAF

WAF (1213)

R-Values: 0.5 to 1 mΩ Power: up to 7 W

WAK

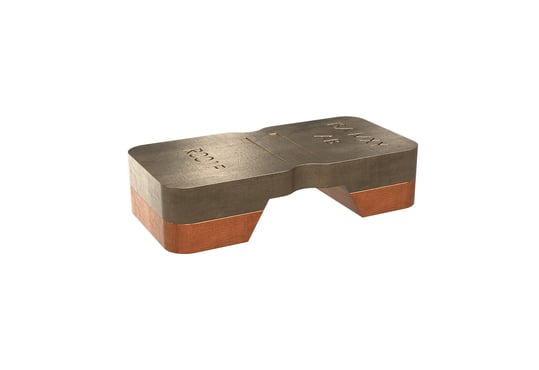

WAK (1206)

R-Values: 0.5 to 1 mΩ Power: up to 6 W

Sample inquiry

Use this service to see for yourself the quality of our products and get your projects moving forward with the best materials and components available.

Discover now in the news feed
