Our products for your drive systems
If you cannot find a suitable product for your requirements here, please contact us.
BAL
Very low-resistance busbar shunt in a small design for battery management systems. Resistance value 100µOhm
| Product area: | Resistor |
|---|---|
| Size: | 5216 |
| Power (Watt): | 12 |
| Tol (%): | 5.00 |
| Res (Ohm): | 0.0001 |
BAN
Very low-resistance busbar shunt for battery management systems or energy storage systems. Resistance value 25 µOhm.
| Product area: | Resistor |
|---|---|
| Size: | 8436 |
| Power (Watt): | 36 |
| Tol (%): | 5.00 |
| Res (Ohm): | 0.000025 |
BAS
Very low-resistance busbar shunt for battery management systems or energy storage systems. Resistance values between 35µOhm and 500µOhm.
| Product area: | Resistor |
|---|---|
| Size: | 8420 |
| Power (Watt): | 10 - 36 |
| Tol (%): | 5.00 |
| Res (Ohm): | 0.000035 - 0.0005 |
BAV
Very low-resistance busbar shunt for battery management systems or energy storage systems. Resistance values between 35 µOhm and 100 µOhm, Pressfit connections.
| Product area: | Resistor |
|---|---|
| Size: | 8420 |
| Power (Watt): | 36 |
| Tol (%): | 5.00 - 10.0 |
| Res (Ohm): | 0.000035 - 0.0001 |
BAX
Very low-resistance busbar shunt for battery management systems or energy storage systems. Resistance values of 20 µOhm and 25 µOhm.
| Product area: | Resistor |
|---|---|
| Size: | 8436 |
| Power (Watt): | 50 |
| Tol (%): | 5.00 |
| Res (Ohm): | 0.000005 - 0.00002 |
BSL

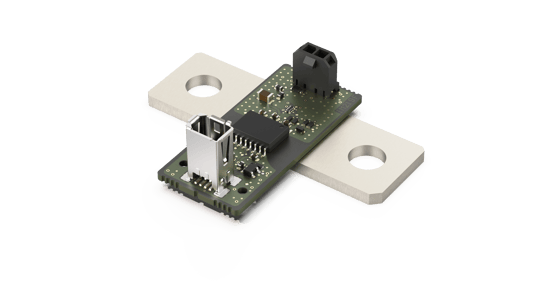

Where very high accuracy and reliability and a separation of the battery management system from the busbar currents is key to success, the analog sensor series from Isabellenhütte is the perfect fit. The temperature and current measurement designed for battery management ICs offers two of the most important functions of the battery management system with optimum functionality and expertise in shunt-based current measurement. Resistance value 100µOhm, NTC temperature measurement and DMC for factor-based TCR compensation
| Product area: | Resistor |
|---|---|
| Size: | 5216 |
| Power (Watt): | 10 |
| Tol (%): | 5.00 |
| Res (Ohm): | 0.0001 |
BSN
Where very high accuracy and reliability and a separation of the battery management system from the busbar currents is key to success, the analog sensor series from Isabellenhütte is the perfect fit. The redundant temperature and current measurement designed for battery management ICs offers two of the most important functions of the battery management system with optimum functionality and expertise in shunt-based current measurement. Resistance value 25µOhm, NTC temperature measurement and DMC for factor-based TCR compensation
| Product area: | Resistor |
|---|---|
| Size: | 8436 |
| Power (Watt): | 36 |
| Tol (%): | 5.00 |
| Res (Ohm): | 0.000025 |
BSS
Where very high accuracy and reliability and a separation of the battery management system from the busbar currents is key to success, the analog sensor series from Isabellenhütte is the perfect fit. The temperature and current measurement designed for battery management ICs offers two of the most important functions of the battery management system with optimum functionality and expertise in shunt-based current measurement.
| Product area: | Resistor |
|---|---|
| Size: | 8420 |
| Power (Watt): | 20 - 30 |
| Tol (%): | 5.00 |
| Res (Ohm): | 0.00005 - 0.0001 |
BSX
Where very high accuracy and reliability and a separation of the battery management system from the busbar currents is key to success, the analog sensor series from Isabellenhütte is the perfect fit. The temperature and current measurement designed for battery management ICs offers two of the most important functions of the battery management system with optimum functionality and expertise in shunt-based current measurement. Resistance value 25 µOhm, NTC temperature measurement and DMC for factor-based TCR compensation.
| Product area: | Resistor |
|---|---|
| Size: | 8436 |
| Power (Watt): | 45 |
| Tol (%): | 5.00 |
| Res (Ohm): | 0.000025 |
BVS
2-terminal resistor made of composite material. Very low resistance values. Large connectors for high currents.
| Product area: | Resistor |
|---|---|
| Size: | 3920 |
| Power (Watt): | 2.5 - 12 |
| Tol (%): | 1.00 - 5.00 |
| Res (Ohm): | 0.0001 - 0.005 |
BVZ
2-terminal resistor made of composite material. Ideal for use on DCB. Space-saving design.
| Product area: | Resistor |
|---|---|
| Size: | 4026 |
| Power (Watt): | 5 - 13 |
| Tol (%): | 1.00 - 5.00 |
| Res (Ohm): | 0.000525 - 0.003 |
CMS
2-terminal resistor for medium power requirements. Low TC <50ppm/K for the entire value range.
| Product area: | Resistor |
|---|---|
| Size: | 2512 |
| Power (Watt): | 2 - 2.5 |
| Tol (%): | 1.00 - 5.00 |
| Res (Ohm): | 0.01 - 0.5 |
GMP
4-terminal resistor with gold-plated contact surface. Ideal for conductive bonding or soldering applications.
| Product area: | Resistor |
|---|---|
| Size: | 2010 |
| Power (Watt): | 1 |
| Tol (%): | 1.00 - 5.00 |
| Res (Ohm): | 0.01 - 0.08 |
PLU
Bondable 4-wire resistor with gold-plated contact surface. High continuous power.
| Product area: | Resistor |
|---|---|
| Size: | 2439 |
| Power (Watt): | 5 |
| Tol (%): | 5.00 |
| Res (Ohm): | 0.001 |
PMH-C
Bondable high-power resistor with gold-plated contact surface. 4-terminal version. High continuous power.
| Product area: | Resistor |
|---|---|
| Size: | 2512 |
| Power (Watt): | 5 |
| Tol (%): | 0.500 - 5.00 |
| Res (Ohm): | 0.005 - 0.050 |
PMT
Pulse load resistor for snubber circuits or pre-charging and discharging applications.
| Product area: | Resistor |
|---|---|
| Size: | 2817 |
| Tol (%): | 10.0 |
| Res (Ohm): | 0.050 - 2.5 |
WAT
2-terminal resistor made of roll-clad strip material, high load capacity, low TCR, values from 0.2 to 0.75 mΩ.
| Product area: | Resistor |
|---|---|
| Size: | 2512 |
| Power (Watt): | 5 - 10 |
| Tol (%): | 1.00 - 5.00 |
| Res (Ohm): | 0.0002 - 0.00075 |
