Our products for your energy metering
If you cannot find a suitable product for your requirements here, please contact us.
BAL
Very low-resistance busbar shunt in a small design for battery management systems. Resistance value 100µOhm
| Product area: | Resistor |
|---|---|
| Size: | 5216 |
| Power (Watt): | 12 |
| Tol (%): | 5.00 |
| Res (Ohm): | 0.0001 |
BAN
Very low-resistance busbar shunt for battery management systems or energy storage systems. Resistance value 25 µOhm.
| Product area: | Resistor |
|---|---|
| Size: | 8436 |
| Power (Watt): | 36 |
| Tol (%): | 5.00 |
| Res (Ohm): | 0.000025 |
BAS
Very low-resistance busbar shunt for battery management systems or energy storage systems. Resistance values between 35µOhm and 500µOhm.
| Product area: | Resistor |
|---|---|
| Size: | 8420 |
| Power (Watt): | 10 - 36 |
| Tol (%): | 5.00 |
| Res (Ohm): | 0.000035 - 0.0005 |
BAV
Very low-resistance busbar shunt for battery management systems or energy storage systems. Resistance values between 35 µOhm and 100 µOhm, Pressfit connections.
| Product area: | Resistor |
|---|---|
| Size: | 8420 |
| Power (Watt): | 36 |
| Tol (%): | 5.00 - 10.0 |
| Res (Ohm): | 0.000035 - 0.0001 |
BAX
Very low-resistance busbar shunt for battery management systems or energy storage systems. Resistance values of 20 µOhm and 25 µOhm.
| Product area: | Resistor |
|---|---|
| Size: | 8436 |
| Power (Watt): | 50 |
| Tol (%): | 5.00 |
| Res (Ohm): | 0.000005 - 0.00002 |
BKW
4-terminal precision resistor, e.g. for energy meters / kWh meters.
| Product area: | Resistor |
|---|---|
| Size: | 2906 |
| Power (Watt): | 3 |
| Tol (%): | 5.00 |
| Res (Ohm): | 0.0003 |
BRS
2-terminal resistor made of composite material. Ideal for use on DCB. Shackle shape, high cycle stability.
| Product area: | Resistor |
|---|---|
| Size: | 3812 |
| Power (Watt): | 1 - 2 |
| Tol (%): | 1.00 - 5.00 |
| Res (Ohm): | 0.002 - 0.025 |
BSL
Where very high accuracy and reliability and a separation of the battery management system from the busbar currents is key to success, the analog sensor series from Isabellenhütte is the perfect fit. The temperature and current measurement designed for battery management ICs offers two of the most important functions of the battery management system with optimum functionality and expertise in shunt-based current measurement. Resistance value 100µOhm, NTC temperature measurement and DMC for factor-based TCR compensation
| Product area: | Resistor |
|---|---|
| Size: | 5216 |
| Power (Watt): | 10 |
| Tol (%): | 5.00 |
| Res (Ohm): | 0.0001 |
BSN
Where very high accuracy and reliability and a separation of the battery management system from the busbar currents is key to success, the analog sensor series from Isabellenhütte is the perfect fit. The redundant temperature and current measurement designed for battery management ICs offers two of the most important functions of the battery management system with optimum functionality and expertise in shunt-based current measurement. Resistance value 25µOhm, NTC temperature measurement and DMC for factor-based TCR compensation
| Product area: | Resistor |
|---|---|
| Size: | 8436 |
| Power (Watt): | 36 |
| Tol (%): | 5.00 |
| Res (Ohm): | 0.000025 |
BSS
Where very high accuracy and reliability and a separation of the battery management system from the busbar currents is key to success, the analog sensor series from Isabellenhütte is the perfect fit. The temperature and current measurement designed for battery management ICs offers two of the most important functions of the battery management system with optimum functionality and expertise in shunt-based current measurement.
| Product area: | Resistor |
|---|---|
| Size: | 8420 |
| Power (Watt): | 20 - 30 |
| Tol (%): | 5.00 |
| Res (Ohm): | 0.00005 - 0.0001 |
BSX
Where very high accuracy and reliability and a separation of the battery management system from the busbar currents is key to success, the analog sensor series from Isabellenhütte is the perfect fit. The temperature and current measurement designed for battery management ICs offers two of the most important functions of the battery management system with optimum functionality and expertise in shunt-based current measurement. Resistance value 25 µOhm, NTC temperature measurement and DMC for factor-based TCR compensation.
| Product area: | Resistor |
|---|---|
| Size: | 8436 |
| Power (Watt): | 45 |
| Tol (%): | 5.00 |
| Res (Ohm): | 0.000025 |
BVD
Precision resistor for kWh meters and battery chargers. Power connection also possible via pressed-in threaded bolts.
| Product area: | Resistor |
|---|---|
| Size: | 3512 |
| Power (Watt): | 3 |
| Tol (%): | 5.00 |
| Res (Ohm): | 0.0005 |
BVH
2-terminal resistor made of composite material. Large connectors for high currents.
| Product area: | Resistor |
|---|---|
| Size: | 3820 |
| Power (Watt): | 5 |
| Tol (%): | 3.00 - 5.00 |
| Res (Ohm): | 0.0005 |
IEM-DCR-1000
The IEM-DCR-1000 complies with the German measurement and calibration law, as well as MID. It comes with a display unit and a sensor unit which allows to serve applications in charging infrastructure and utility domains. The combination of the display unit (DU) and the sensor unit (SU) comprises the IEM-DCR models. The SU-1000 as a standalone is available as the IEM-DCS 1000.
| Product area: | Sensor |
|---|---|
| Current Range: | 0 - 1000 |
| Current Range Options: | 1000 |
| Voltage Range: | 0 - 1500 |
| Voltage Channels: | 4 |
| Interface: | OCMF over RF45 |
| Hardware setup: | 24 V |
| Configuration: | german calibration law, MID, LNE |
| Plating shunt: | nickel plated |
IEM-DCR-125
The IEM-DCR-125 complies with the German measurement and calibration law, as well as MID. It comes with a display unit and a sensor unit which allows to serve applications in charging infrastructure and utility domains. The combination of the display unit (DU) and the sensor unit (SU) comprises the IEM-DCR models. The SU-125 as a standalone is available as the IEM-DCS 125.
| Product area: | Sensor |
|---|---|
| Current Range: | 0 - 125 |
| Current Range Options: | 125 |
| Voltage Range: | 0 - 1000 |
| Voltage Channels: | 2 |
| Interface: | OCMF over RF45 |
| Hardware setup: | 24 V |
| Configuration: | german calibration law, MID, LNE |

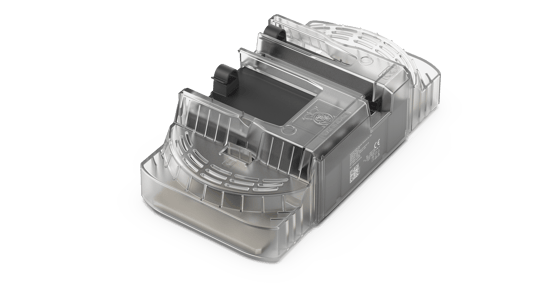

IEM-DCR-1500
The IEM-DCR-1500 complies with the German measurement and calibration law, as well as MID. It comes with a display unit and a sensor unit which allows to serve applications in charging infrastructure and utility domains. The combination of the display unit (DU) and the sensor unit (SU) comprises the IEM-DCR models. The SU-1500 as a standalone is available as the IEM-DCS 1500.
| Product area: | Sensor |
|---|---|
| Current Range: | 0 - 1500 |
| Current Range Options: | 1500 |
| Voltage Range: | 0 - 1500 |
| Voltage Channels: | 4 |
| Interface: | OCMF over RF45 |
| Hardware setup: | 24 V |
| Configuration: | german calibration law, MID, LNE |
| Plating shunt: | nickel plated |
PBH
2-terminal resistor in space-saving design similar to TO-247. 10 W power – mounted on heat sink.
| Product area: | Resistor |
|---|---|
| Size: | TO-247 |
| Power (Watt): | 3 - 10 |
| Tol (%): | 0.500 - 5.00 |
| Res (Ohm): | 0.0036 - 100 |
PBV
4-terminal resistor wired. 10 W power – mounted on heat sink.
| Product area: | Resistor |
|---|---|
| Size: | 2317 |
| Power (Watt): | 3 - 10 |
| Tol (%): | 0.500 - 5.00 |
| Res (Ohm): | 0.0005 - 1 |
